Quick Start Guide
XGS 138
For more information about your appliance, scan the QR code or visit
www.sophos.com/get-started-firewall

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGS 138 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sophos XGS 138

  • Page 1 Quick Start Guide XGS 138 For more information about your appliance, scan the QR code or visit www.sophos.com/get-started-firewall...
  • Page 2: Box Contents

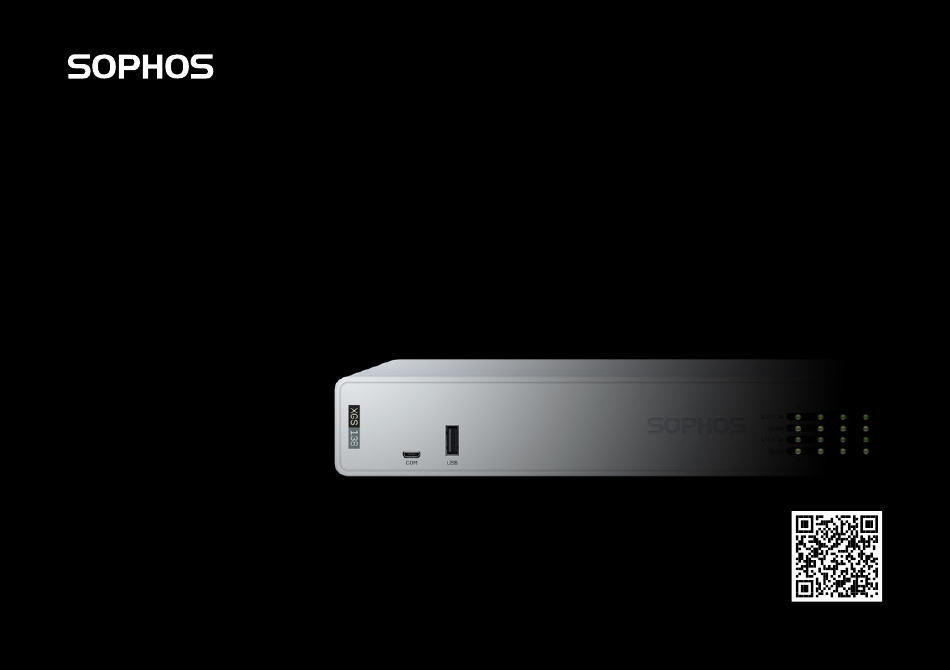

    Box contents Front panel 1 x USB 2.0 Status LEDs XGS 138 1 x COM Micro USB Back panel 1 x COM 2 x SFP+ 2 x 2.5GE Optional module (RJ45) ports PoE ports expansion bay This Quick Start Guide and...
  • Page 3: Led Codes

    LED codes Mount and Connect your Appliance Connect the ports to the internal and LEDs (Front) external networks Storage Blue Flashing Storage drive is being accessed Connect the port 1/LAN via a switch to the internal Internet Status Green Solid Normal operation network.
  • Page 4: Support And Documentation

    Complete the registration of your appliance on the upcoming registration screen. Synchronize license Click ‘Initiate License Synchronization’ to get the license information from Sophos onto the appliance. After synchronization, you will see a screen with the message, “Synchronization with server was successful.”...
  • Page 5 Kurzanleitung XGS 138 Für weitere Informationen zu Ihrer Appliance scannen Sie den QR-Code oder rufen Sie www.sophos.de/get-started-firewall...
  • Page 6: Inhalt Der Verpackung

    Inhalt der Verpackung Vorderseite 1 x USB 2.0 Status-LEDs XGS 138 1 x COM Micro-USB Rückseite 1 x COM 2 x SFP+ 2 x 2,5 PoE- Optionaler (RJ45) Ports Ports GE Modulerweiterungsschacht Diese Kurzanleitung und Sicherheitshinweise 4 x Kupferports GE Stromversorgung 1 x USB 3.0 Anschluss für optionale zweite redundante...
  • Page 7 LED-Codes Appliance montieren und verbinden Ports mit den internen und externen LEDs (Vorderseite) Netzwerken verbinden Speicher Blau Blinkt Zugriff auf Speicherlaufwerk Verbinden Sie Port 1/LAN über einen Switch mit Status Grün Konstant Normaler Betrieb Internet dem internen Netzwerk. Verwenden Sie hierzu das Konstant Problem mit Speicher oder beim Hochfahren beiliegende RJ45 Ethernet-Kabel.
  • Page 8 Meldung „Synchronisierung mit Server war erfolgreich“ angezeigt. Die Appliance ist jetzt initialisiert und einsatzbereit. Support und Dokumentation Für weitere Informationen und technischen Support gehen Sie auf die Website www.sophos.com/de- de/support oder wenden Sie sich an Ihren Sophos Vertriebspartner vor Ort.
  • Page 9: Guide De Démarrage Rapide

    Guide de démarrage rapide XGS 138 Retrouvez plus de renseignements sur votre appliance en scannant le code QR ou sur www.sophos.fr/get-started-firewall...
  • Page 10: Contenu De L'emballage

    Contenu de l’emballage Panneau avant 1 USB 2.0 Voyants LED d’état XGS 138 1 COM Micro USB Panneau arrière 1 COM 2 x SFP+ 2 ports GE Baie d’extension (RJ45) ports PoE 2.5 modulaire en option Guide de démarrage rapide et Instructions de sécurité Alimentation 4 ports 1 USB 3.0...
  • Page 11: Paramètres Par Défaut

    Codes LED Monter et connecter l’appliance Connecter les ports aux réseaux LED (à l’avant) internes et externes Stockage Bleu Clignotant Accès au lecteur de stockage en cours Connectez le port 1/LAN au réseau interne via un Internet État Vert Fixe Fonctionnement normal commutateur.
  • Page 12 Après la synchronisation, vous verrez s’afficher le message « La synchronisation avec le serveur a réussi ». Votre appliance est maintenant initialisée et prête à l’emploi. Support et documentation Retrouvez plus de renseignements et accédez au support technique sur www.sophos.com/fr-fr/support ou contactez votre revendeur Sophos le plus proche.
  • Page 13: Guia De Início Rápido

    Guia de início rápido XGS 138 Para mais informações sobre o seu dispositivo, leia o código QR ou visite www.sophos.com/get-started-firewall...
  • Page 14: Conteúdo Da Caixa

    Conteúdo da caixa Painel frontal 1 x USB 2.0 LED de status XGS 138 1 x COM Micro USB Painel traseiro Compartimento 1 x COM 2 x 2.5 portas de expansão do 2 x SFP+ (RJ45) portas GE PoE módulo opcional Este Guia de Início Rápido e...
  • Page 15 Códigos LED Montar e conectar seu dispositivo Conectar as portas às redes internas e LEDs (dianteira) externas Armazenamento Azul Piscando A unidade de armazenamento Conecte a Porta 1/LAN à rede interna através de um está sendo acessada Internet switch. Para esta finalidade, use o cabo Ethernet RJ45 Status Verde Aceso...
  • Page 16 Sincronizar Licenças Clique em ‘Iniciar sincronização de licença’ para obter informações da licença da Sophos e passá-las para o dispositivo. Após a sincronização, será exibida uma tela com a mensagem “A sincronização com o servidor foi bem- sucedida”.
  • Page 17 快速入門指南 XGS 138 如需您的設備的詳細資訊 , 請掃描 QR 碼 , 或瀏覽 www.sophos.com/get-started-firewall...
  • Page 18 包裝內容 前視圖 1 x USB 2.0 狀態 LED XGS 138 1 x COM Micro USB 後視圖 1 x COM 2 x 2.5 GE (RJ45) 2 x SFP+ 埠 PoE 埠 選用模組擴充槽 本快速入門指南和安全說明 4 x GE 銅軸 電源供應 1 x USB 3.0 選用第...
  • Page 19 LED 代碼 安裝和連接設備 將連接埠連接至內外部網路 LED (正面) 將連接埠 1/LAN 埠透過交換器連接到內部網路 。 為此 , 請 儲存裝置 蓝色 閃爍 正在存取儲存磁碟機 使用所提供的 RJ45 乙太網路纜線 。 請注意 , 管理電腦也 網際網路 狀態 綠 恆亮 正常運作 必須連線到這個網路 。 紅色 恆亮 儲存或開機失敗 將連接埠 2/WAN 連接到外部網路 。 與 WAN 的連線取決 電源...
  • Page 20 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
