Summary of Contents for Sophos XGS 118 w

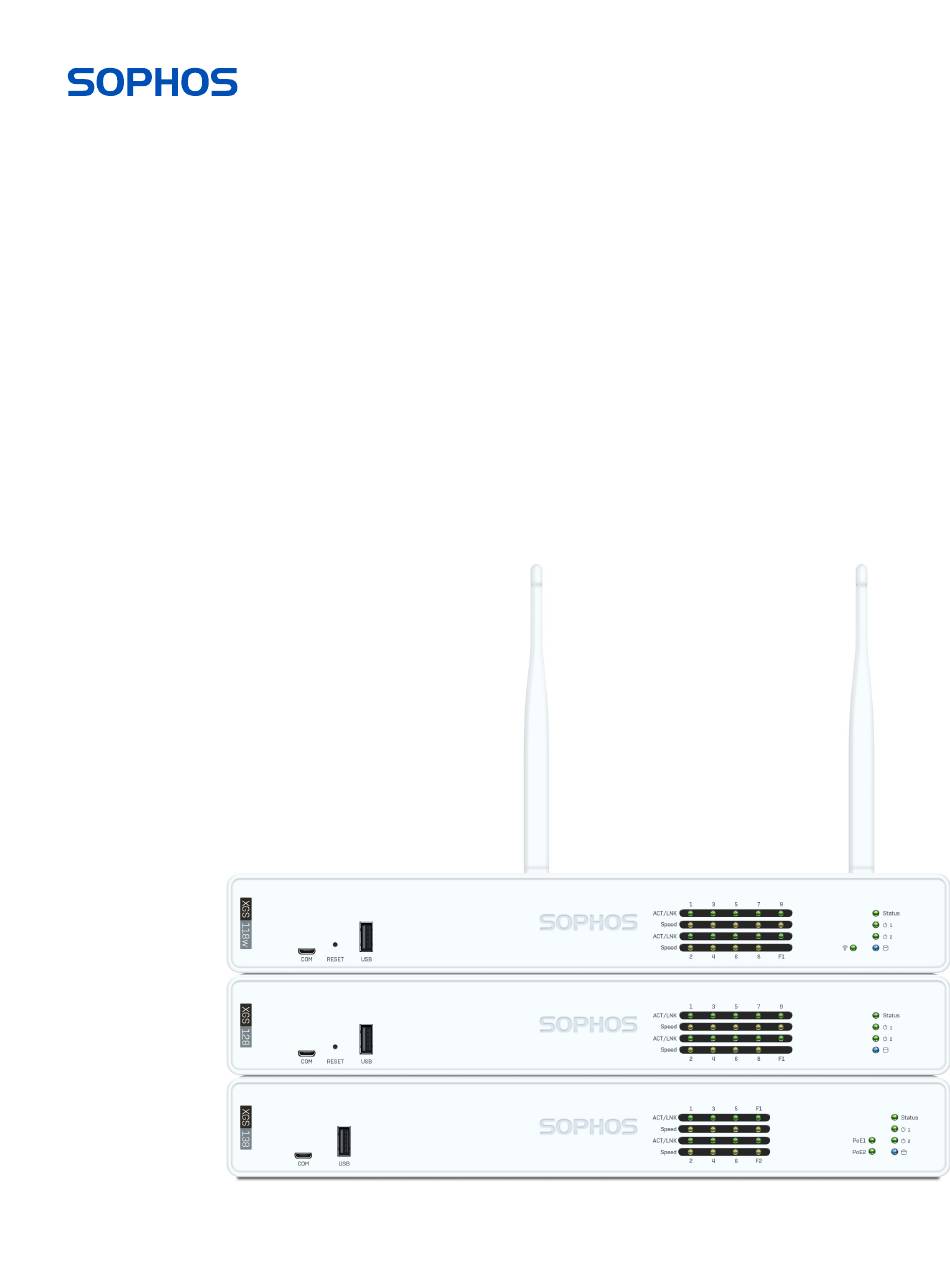

- Page 1 Operating Instructions XGS 118(w)/128(w)/138...
-
Page 2: Security Symbols
Operating Instructions Foreword We are pleased to welcome you as a new customer of our Sophos XGS Series appliances. To install and configure the hardware appliance you can use the following documents: Hardware Quick Start Guide: Connection to the system peripherals in a few steps... -
Page 3: Regulatory Compliance
The XGS 118(w)/128(w)/138 appliances comply with CB, CE, UKCA, UL, FCC, ISED, KC, BSMI, RCM, NOM, Anatel and TEC MTCTE regulations. Certificates and declarations of conformity are available at: https:/ /docs.sophos.com/ nsg/RegulatoryCompliance/en-us/index.html Environmental Compliance The XGS 118(w)/128(w)/138 appliances comply with the following environmental... -
Page 4: Technical Specifications
Operating Instructions Technical Specifications XGS 118(w) XGS 128(w) XGS 138 Physical Specification #Fixed Ethernet Ports 9 x 2.5GE 9 x 2.5GE 4 x GE 1 x SFP 1 x SFP 2 x 2.5GE (2 x PoE) 2 x SFP+ Expansion Slots Connectivity Modules 5G Module 5G Module... - Page 5 XGS 138 - [back] and patterns will be flushed. Expansion Bay Comment 5G Module Can be used for Sophos XGS 5G Module, which is optionally available from your Sophos partner. LEDs on each RJ45 Ethernet Connector / SFP+ connector ACT/LNK Green...
-
Page 6: Starting Operation
Operating Instructions Starting Operation Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Scope of Supply The supplied parts are indicated in the Hardware Quick Start Guide. Mounting Instructions The XGS 118/128/138 appliance can be placed on a stable horizontal surface, can be mounted to a rack, or you can hang it on the wall by using the optionally available rackmount kit. -
Page 7: Rack Mounting Considerations
Library). Serial Console You can connect a serial console to either of the COM ports of the Sophos XGS hardware appliances. You can use, for instance, the Hyperterminal terminal program which is included with most versions of Microsoft Windows to log on to the appliance console. Use an RJ45 to DB9 adapter cable or the provided USB cable to connect the console to your hardware appliance. - Page 8 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
