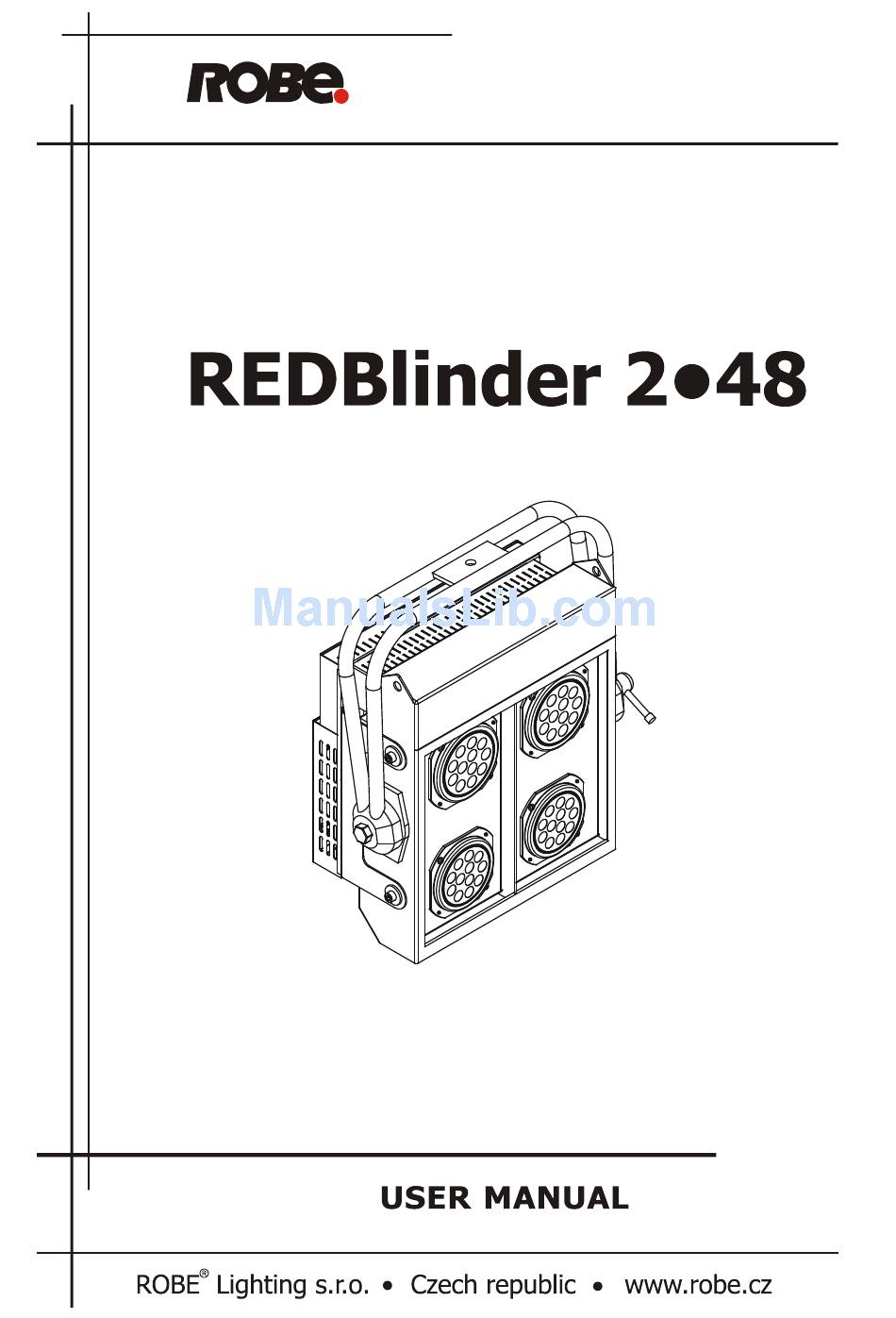

  • Page 1 version 1.0...

  • Page 3: Table Of Contents

    REDBlinder 2•48 Table of contents 1. Safety instructions ......................4 2. Operating determinations ....................4 3.Description of the REDBlinder 2•48 ................5 4.Installation........................5 4.1.Connection to the mains .................... 5 4.2 DMX-512 connection/connection between fixtures ............ 6 4.3 Rigging the fixture ...................... 6 4.4 Fitting the frost filter....................7 5.REDBlinder 2•48 - DMX protocol ,version 1.0 ...............

  • Page 4: Safety Instructions

    CAUTION! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this product has to: - be qualilfied - follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 5: Description Of The Redblinder 2•48

    3.Description of the REDBlinder 2•48 1 - Mounting yoke 2 - "T" bar 3 - LED modules Control board 1 - 5-pin DMX output 2 - 3-pin DMX output 3 - 5-pin DMX input 4 - 3-pin DMX input 5 - LED display 6 - Mode-button 7 - Enter-button 8 - Up-button...

  • Page 6: Dmx-512 Connection/Connection Between Fixtures

    4.2 DMX-512 connection/connection between fixtures The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 7: Fitting The Frost Filtr

    The installation must always be secured with a secondary safety attachment, e.g. an appropriate cord .Fasten the safety cord through the mounting yoke and over the trussing system. When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

  • Page 8: Redblinder 2•48 - Dmx Protocol ,Version 1.0

    5.REDBlinder 2•48 - DMX protocol ,version 1.0 Mode/Channel Value Function Type of control Zone 1 Red LEDs 1 0-55 Red LEDs saturation control (0-100%) proportional Green LEDs 1 0-55 Green LEDs saturation control (0-100%) proportional Blue LEDs 1 0-55 Blue LEDs saturation control (0-100%) proportional Zone 2 Red LEDs 2...
  • Page 9 SHUTTER/STROBE 0-1 Shutter closed step -6 Shutter open step 64-95 Strobe-effect from slow to fast proportional 96-127 Shutter open step 128-143 Opening pulses in sequences from slow to fast proportional 144-159 Closing pulses in sequences from fast to slow proportional 160-191 Shutter open step...

  • Page 10: Redblinder 2•48- Control Menu Map

    6.REDBlinder 2•48 - Control menu map Default settings=Bold print A001 (001-504) ProG EPG.1 EPG.2 EPG.3 PrG.1 PrG.6 Auto (OFF,On) Edit. EPG.1 EPG.2 EPG.3 St.01 St.30 P.End rEd (0-255) dimr. (0-255) F.tim.(0-255) S.tim. (0-255) COPY. MAn.C. rEd (0-255) GrEE. (0-255) bLuE (0-255) MACr (0-255) Stro.

  • Page 11: Control Board

    7.Control board The control panel situated on the top cover of the REDBlinder 2•48 allows DMX addressing,calling build-in programs and setting the fixture behaviour. Control elements on the control board: [MODE] button-leaves menu without saving changes. [ENTER] button- enters menu,confirms adjusted values and leaves menu. [UP] button and[DOWN] button- moves between menu items on the the same level, sets values.

  • Page 12: Manual Mode

    Following item are common for all zones: MACr. - a macro selection,value 0-255 Stro. - a strobe,value 0-255 dimr. - a dimmer,value 0-255 F.tim. - fade time,value 0-255 * S.tim. - standing time,value 0-255 * COP. - copying the current prog. step to the next prog. step. Press [ENTER]-button to confirm adjusted value .

  • Page 13: Stand-Alone Mode

    - Flash cable RS232/DMX (No.13050624) Note1:Software update should execute a qualified person.If you lack qualification, do not attempt the update yourself and ask for help your ROBE distributor. Note 2:DMX address,programs and all settings will be set to their default values To update software in the fixture: 1.Installation of DMX Software Uploader:...
  • Page 14 1.DMX Software Uploader program is available from the ROBE web site at WWW.robe.cz. 2.Make a new directory ( e.g. Robe_Uploader) on your hard disk and download the software to it. 3.Unpack the program from the archive. Program file has name:DSU_name of corresponding fixture_SoftwareID.SoftwareID describes the versions of fixture software included in DMX Software...

  • Page 15: Technical Specifications

    Technical Specifications Power supply: Input Voltage:100-240V AC, 50/60 Hz Fuse:T 2 A Max.Pover Consumption: 135 VA Input: Control:DMX 512 DMX connection: 3-pin or 5-pin XLR-sockets DMX channels: 3,6 or 9 channels; 4 DMX protocol modes LED device: Luxeon K2 2 pairs of 12-LEDs modules LED beam angle: Each LED has 25°...

  • Page 16: Maintenance

    Optional Accessories Set glass frost (No.99011539)....4 pieces Set film frost (No.99011540)....4 pieces 9.Maintenance Keep the Led Blinder 248 LT dry. Operate only in places where the sufficient airflow to cool the fixture is present Periodically clean the front transparent cover of LED modules Use a moist, lint-free cloth.
