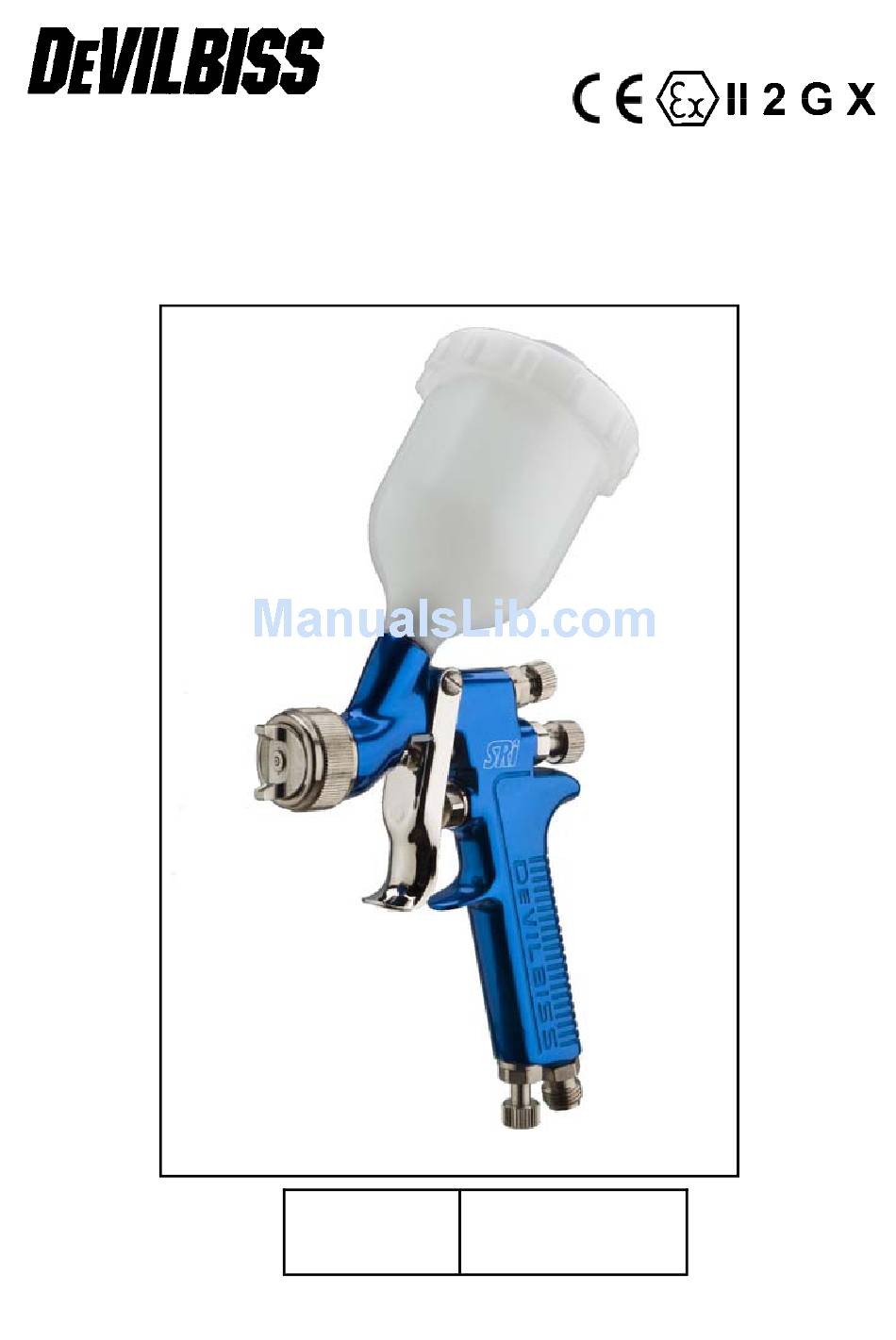

- Page 1 SB-E-2-510 ISS.04 Operation Manual SRi – Gravity Spraygun P 2 - 8...
-
Page 2: Ec Declaration Of Conformity
Description The Devilbiss SRI is a small Gravity fed Spraygun designed for spraying spot repairs and small areas. It is approved to ATEX regulations 94/9/EC, protection level; II 2 G X, Suitable for use in Zones 1 and 2 Important: These Sprayguns are suitable for use with both waterbased and solvent based coating materials. - Page 3 SAFETY WARNINGS Always wear eye protection when Fire and explosion spraying or cleaning the spraygun Solvents and coating materials Gloves must worn when can be highly flammable or spraying cleaning combustible when sprayed. ALWAYS equipment refer to the coating material suppliers Training –...
-
Page 4: Parts List
Parts List Ref. No Description Part Number Air Cap/Retaining ring HVLP SRI-407-205 Air Cap/Retaining ring Compliant SRI-407-210 Nozzle 0.7 mm seal SRI-2-07-K Nozzle 0.8 mm seal SRI-2-08-K Nozzle 1.0 mm seal SRI-2-10-K Nozzle 1.2 mm seal SRI-2-12-K Needle for 1.0 and 1.2 mm Nozzle SRI-3-K Needle for 0.7 and 0.8 mm Nozzle... - Page 5 Patent No 2372465 (GB) Specification Air supply connection - Universal “ BSP and NPS (M) Maximum Static Air inlet pressure - = 9 bar (130 psi) Nominal gun Air inlet pressure with gun triggered - 2 bar (29 psi) Gun Weight (with Cup and Lid) - 390g Maximum Service temperature - 40°C...
- Page 6 8. The pattern size can be reduced by to required level with paint, or use turning Spreader valve (6) clockwise. funnel (SRI-17) and use paper filter. Screw on lid. 9. Hold gun perpendicular to surface being sprayed. Arcing or tilting may 4.
- Page 7 cleaned or rubbed with a dry cloth coating material use a toothpick to or paper. It is possible to generate clean. Never use metal wire which a static charge, by rubbing, which could damage the cap and produce if discharged to an earthed object distorted spray patterns.
- Page 8 Accessories Aircap, Tip and Needle set - SRI-450-***-** (*** = Aircap No, ** = Tip size) Spanner – SRI-50-K2 Cleaning Brush – SRI-65-K2 Service Kit – SRI-416 Gun Mounted Regulator with Mini QD– HAV-601 Lubricant - GL-1-K10 SRI-478-K3 Black Cup and Lid set (3 sets) - suitable for use with UV curing paints.
