10

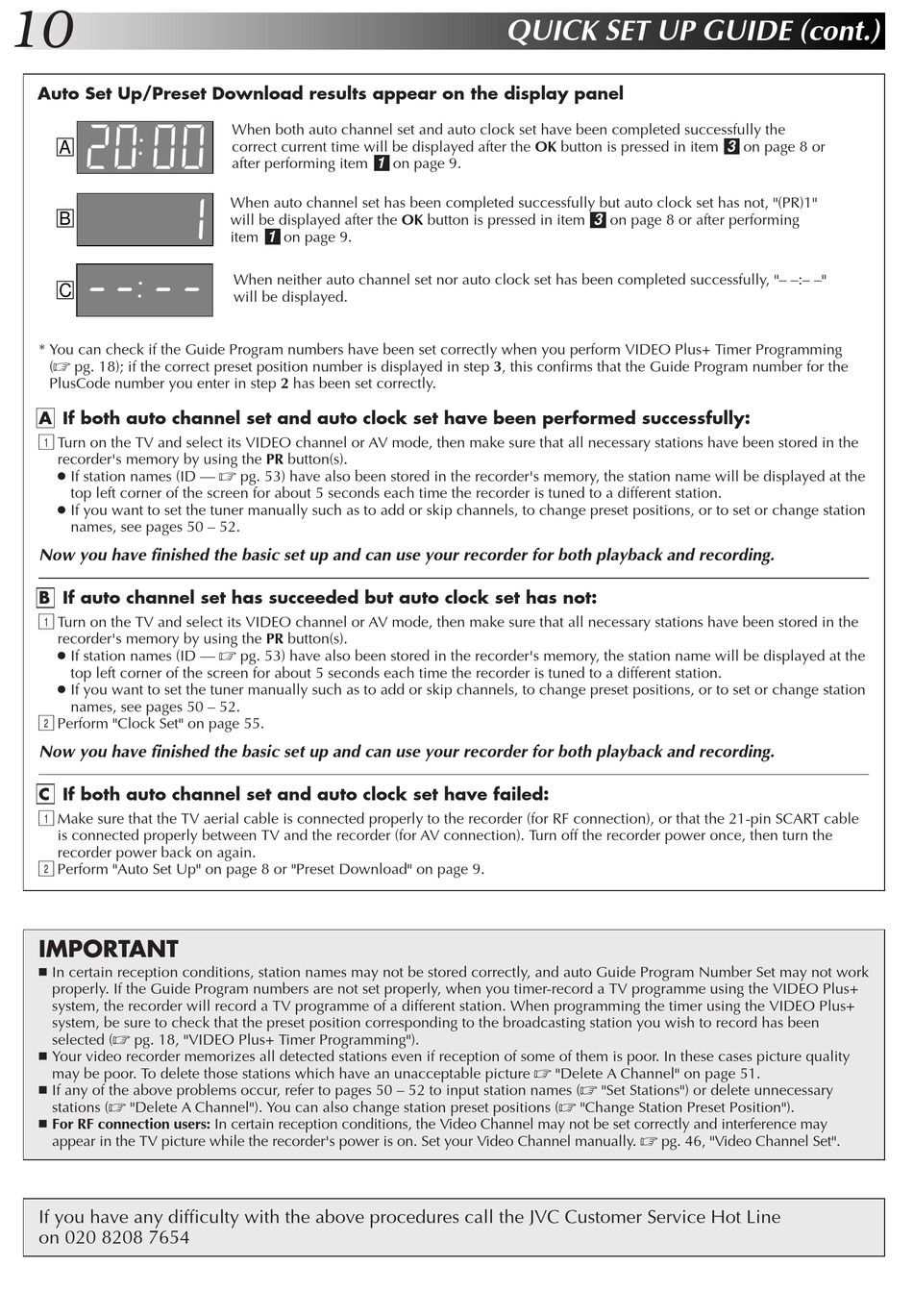

Auto Set Up/Preset Download results appear on the display panel
A
B
C
* You can check if the Guide Program numbers have been set correctly when you perform VIDEO Plus+ Timer Programming
( pg. 18); if the correct preset position number is displayed in step 3, this confirms that the Guide Program number for the
PlusCode number you enter in step 2 has been set correctly.
A If both auto channel set and auto clock set have been performed successfully:
1
Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in the
recorder's memory by using the PR button(s).
If station names (ID —
top left corner of the screen for about 5 seconds each time the recorder is tuned to a different station.
If you want to set the tuner manually such as to add or skip channels, to change preset positions, or to set or change station
names, see pages 50 – 52.
Now you have finished the basic set up and can use your recorder for both playback and recording.
B If auto channel set has succeeded but auto clock set has not:
1
Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in the
recorder's memory by using the PR button(s).
If station names (ID —
top left corner of the screen for about 5 seconds each time the recorder is tuned to a different station.
If you want to set the tuner manually such as to add or skip channels, to change preset positions, or to set or change station
names, see pages 50 – 52.
2
Perform "Clock Set" on page 55.
Now you have finished the basic set up and can use your recorder for both playback and recording.
C If both auto channel set and auto clock set have failed:
1
Make sure that the TV aerial cable is connected properly to the recorder (for RF connection), or that the 21-pin SCART cable
is connected properly between TV and the recorder (for AV connection). Turn off the recorder power once, then turn the
recorder power back on again.
2
Perform "Auto Set Up" on page 8 or "Preset Download" on page 9.
IMPORTANT
In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work
properly. If the Guide Program numbers are not set properly, when you timer-record a TV programme using the VIDEO Plus+
system, the recorder will record a TV programme of a different station. When programming the timer using the VIDEO Plus+
system, be sure to check that the preset position corresponding to the broadcasting station you wish to record has been
selected ( pg. 18, "VIDEO Plus+ Timer Programming").
Your video recorder memorizes all detected stations even if reception of some of them is poor. In these cases picture quality
may be poor. To delete those stations which have an unacceptable picture
If any of the above problems occur, refer to pages 50 – 52 to input station names (
stations ( "Delete A Channel"). You can also change station preset positions (
For RF connection users: In certain reception conditions, the Video Channel may not be set correctly and interference may
appear in the TV picture while the recorder's power is on. Set your Video Channel manually.
If you have any difficulty with the above procedures call the JVC Customer Service Hot Line
on 020 8208 7654
When both auto channel set and auto clock set have been completed successfully the
correct current time will be displayed after the OK button is pressed in item
after performing item 1 on page 9.
When auto channel set has been completed successfully but auto clock set has not, "(PR)1"
will be displayed after the OK button is pressed in item
item on page 9.
1
When neither auto channel set nor auto clock set has been completed successfully, "– –:– –"
will be displayed.
pg. 53) have also been stored in the recorder's memory, the station name will be displayed at the
pg. 53) have also been stored in the recorder's memory, the station name will be displayed at the
QUICK SET UP GUIDE (cont.)
3 on page 8 or after performing
"Delete A Channel" on page 51.
"Set Stations") or delete unnecessary
"Change Station Preset Position").
pg. 46, "Video Channel Set".
3 on page 8 or
