Thermal Arc A-07360 Service Manual
  1. Manuals
  2. Brands
  3. Thermal Arc Manuals
  4. Welding System
  5. A-07360
  6. Service manual

Thermal Arc A-07360 Service Manual

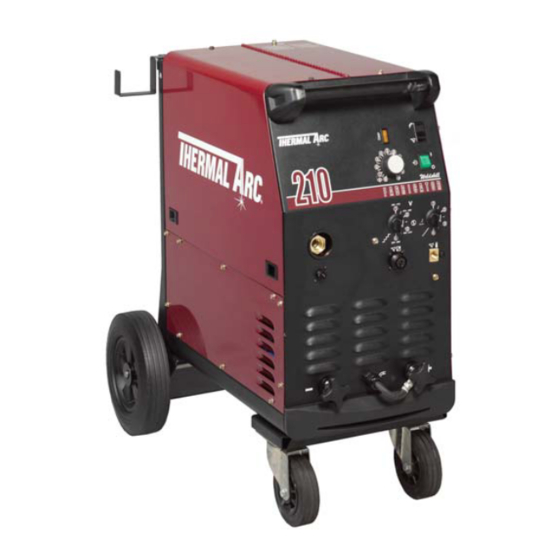

Mig welding machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

210

Service Manual

FABRICATOR
MIG WELDING MACHINE
Art # A-07360
Revision: AE
Operating Features:
250
250
®
Issue Date: June 19, 2006
208
208
230
230
V V
V V
Manual No.: 0-4879B
60 60
H
Z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-07360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermal Arc A-07360

Summary of Contents for Thermal Arc A-07360

  • Page 1: Service Manual

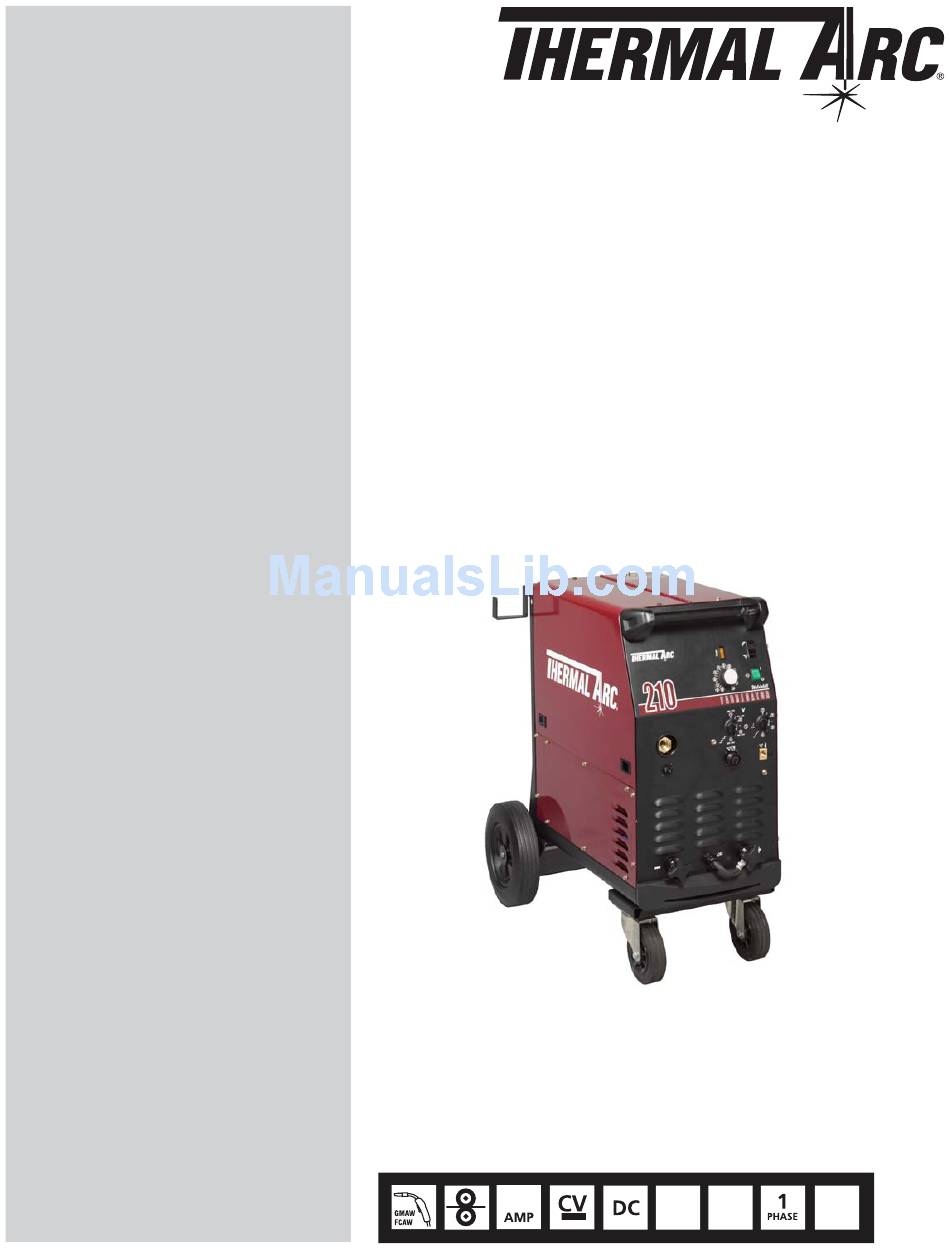

    ® FABRICATOR MIG WELDING MACHINE Art # A-07360 Service Manual Revision: AE Issue Date: June 19, 2006 Manual No.: 0-4879B Operating Features: 60 60...
  • Page 3 WARNINGS Read and understand this entire Manual and your employer’s safety practices before installing, operating, or servicing the equipment. While the information contained in this Manual represents the Manufacturer's best judgement, the Manufacturer assumes no liability for its use. Fabricator 210 MIG Welding Machine Instruction Manual Number 0-4879B for: Package System Part Number 100047B-001 Power Source Part Number 707222...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION 1: SAFETY INSTRUCTIONS AND WARNINGS ............1-1 1.01 Arc Welding Hazards ..................1-1 1.02 Principal Safety Standards ................1-4 1.03 Precautions De Securite En Soudage A L’arc ..........1-5 1.04 Dangers relatifs au soudage à l’arc ..............1-5 1.05 Principales Normes De Securite ..............
  • Page 5 TABLE OF CONTENTS (continued) TABLE OF CONTENTS SECTION 4: OPERATION ................... 4-1 4.01 Power Supply Controls, Indicators and Features ..........4-1 4.02 Weld Mode Selector ..................4-4 4.03 TWECO Weldskill 250 AMP Weld Gun ............4-6 4.04 Installing A New Wire Conduit ................ 4-7 4.05 MIG Gun Maintenance ..................
  • Page 6 TABLE OF CONTENTS SECTION 8: CIRCUIT OPERATION ................8-1 8.01 Circuit Operation Of The Control PCB 7977964 ..........8-1 8.02 Circuit Operation Of The MIG Timer PCB 7977965 ......... 8-2 8.03 Circuit Operation Of The Digital Volt/Amp PCB 704883 ........8-2 8.04 Circuit Operation Of The Spool Gun PCB 7978034 .........

  • Page 7: Safety Instructions And Warnings

    FABRICATOR 210 SECTION 1: SAFETY INSTRUCTIONS AND WARNINGS WARNING PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS KEEP AWAY UNTIL CONSULTING YOUR DOCTOR. DO NOT LOSE THESE INSTRUCTIONS. READ OPERATING/INSTRUCTION MANUAL BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. Welding products and welding processes can cause serious injury or death, or damage to other equipment or property, if the operator does not strictly observe all safety rules and take precautionary actions.
  • Page 8 FABRICATOR 210 3. Use protective screens or barriers to protect others from flash and glare; warn others not to watch the arc. WARNING 4. Wear protective clothing made from durable, flame-resistant material (wool and leather) and foot protection. WELDING can cause fire or explosion. 5.
  • Page 9 FABRICATOR 210 2. If used in a closed area, vent engine exhaust outside and away from any building air intakes. WARNING WARNING FLYING SPARKS AND HOT METAL can cause injury. Chipping and grinding cause flying metal. As welds cool, they can throw off slag. ENGINE FUEL can cause fire or explosion.

  • Page 10: Principal Safety Standards

    FABRICATOR 210 1.02 Principal Safety Standards Safety in Welding and Cutting, ANSI Standard Z49.1, from American WARNING Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126. Safety and Health Standards, OSHA 29 CFR 1910, from Superintendent STEAM AND PRESSURIZED HOT COOLANT can burn of Documents, U.S.

  • Page 11: Precautions De Securite En Soudage A L'arc

    FABRICATOR 210 1.03 Precautions De Securite En Soudage A L’arc MISE EN GARDE LE SOUDAGE A L’ARC EST DANGEREUX PROTEGEZ-VOUS, AINSI QUE LES AUTRES, CONTRE LES BLESSURES GRAVES POSSIBLES OU LA MORT. NE LAISSEZ PAS LES ENFANTS S’APPROCHER, NI LES PORTEURS DE STIMULATEUR CARDIAQUE (A MOINS QU’ILS N’AIENT CONSULTE UN MEDECIN). CONSERVEZ CES INSTRUCTIONS.
  • Page 12 FABRICATOR 210 AVERTISSEMENT AVERTISSEMENT LES VAPEURS ET LES FUMEES SONT DANGEREUSES LE RAYONNEMENT DE L’ARC PEUT BRÛLER LES YEUX POUR LA SANTE. ET LA PEAU; LE BRUIT PEUT ENDOMMAGER L’OUIE. Le soudage dégage des vapeurs et des fumées L’arc de soudage produit une chaleur et des rayons dangereuses à...
  • Page 13 FABRICATOR 210 7. Ne soudez des tôles galvanisées ou plaquées au plomb ou au cadmium que si les zones à souder ont été grattées à fond, que si AVERTISSEMENT l’espace est bien ventilé; si nécessaire portez un respirateur à ad- duction d’air.

  • Page 14: Principales Normes De Securite

    FABRICATOR 210 Les accumulateurs contiennent de l’électrolyte acide et 1. Utilisez l’équipement à l’extérieur dans des aires ouvertes et bien ventilées. dégagent des vapeurs explosives. 2. Si vous utilisez ces équipements dans un endroit confiné, les 1. Portez toujours un écran facial en travaillant sur un accumu-lateur. fumées d’échappement doivent être envoyées à...

  • Page 15: Introduction

    Include the Service Manual number and equipment identification numbers. Electronic copies of this manual can also be downloaded at no charge in Acrobat PDF format by going to the Thermal Arc web site listed below and clicking on the Literature link: http://www.thermalarc.com June 19, 2006...

  • Page 16: Symbol Chart

    FABRICATOR 210 2.04 Symbol Chart Note that only some of these symbols will appear on your model. Wire Feed Function Single Phase Wire Feed Towards Workpiece With Three Phase Output Voltage Off. Three Phase Static Frequency Converter- Welding Gun Dangerous Voltage Transformer-Rectifier Purging Of Gas Increase/Decrease...

  • Page 17: General Information

    • Never watch the welding arc with naked eyes. Al- from standard specification without prior written approval ways use and wear a welding mask fitted with the of Thermal Arc. The purchaser of this equipment shall correct filter lens. have the sole responsibility for any malfunction which •...

  • Page 18: Duty Cycle

    FABRICATOR 210 2.09 Duty Cycle The rated duty cycle of a welding Power Supply is the operating time it may be used at its rated output current without exceeding the temperature limits of the insulation of the component parts. To explain the ten minute duty cycle period the following example is used.
  • Page 19 FABRICATOR 210 Fabricator 210 Package System Part Number 100047B-001 Power Source Part Number 707222 Power Source Weight 200lb (91kg) Power Source Dimensions HxWxD 32” x 21” x 36-3/4” (including wheels and cylinder carrier) (813 x 533 x 933mm) Nominal Input Voltage 208V ±10% 230V ±10% Number of Phases...

  • Page 20: Included Items

    FABRICATOR 210 2.11 Included Items Fabricator 210 Package System Contents Fabricator 210 Power Source with Integrated Wirefeeder Factory Fitted Wheeling Kit Factory Fitted Single Cylinder Rack Factory Fitted Primary Power Cable 10 AWG, 10ft (3m) with Plug NEMA 6-50P Work Lead 10ft (3m) with clamp Cable Stowage Hook Regulator / Flowmeter - Argon Mix Gases TWECO Weldskill MIG gun 250A, 15' (4.5m)

  • Page 21: Installation

    FABRICATOR 210 3.02 Location SECTION 3: INSTALLATION Be sure to locate the Power Supply according to the following guidelines: In areas, free from moisture and dust. 3.01 Environment In areas, free from oil, steam and corrosive gases. The Fabricator 210 is NOT designed for use in In areas, not subjected to abnormal vibration or shock.

  • Page 22: Input Power Requirements

    Install a power outlet for each Power Supply and fit fuses as per the machine specifications. WARNING Thermal Arc advises that your Fabricator 210 be electrically connected by a qualified electrical trades- person. The Fabricator 210 Power Supply is factory connected for the following input power supply voltage:...

  • Page 23: Quick Setup

    FABRICATOR 210 Changing the Voltage Selection 1. Disconnect the power supply from the main power source. 2. Refer to Figure 3-1. The power supply comes wired for 230V. Locate the black input power wire secured to the input voltage selection block. Loosen the set screw for both voltage locations. 3.

  • Page 24: Installation Of Shielding Gas (Gmaw) Process

    FABRICATOR 210 3.07 Installation of Shielding Gas 4. Fix the cable stowage hook to the Power Supply cylinder bracket with the bolts provided. (GMAW) Process 5. Fit the gas Regulator/Flow Meter to the gas cylin- NOTE der and connect the gas hose from the rear of the Power Supply to the Flow Meter outlet.
  • Page 25 FABRICATOR 210 Shielding Regulator and “Cracking” Flow Meter Shielding Shielding Shielding Art # A-07374 Stowage Hook Gas Hose Figure 3-2 Gas Cylinder Installation June 19, 2006...

  • Page 26: Section

    FABRICATOR 210 Adjusting Regulator Adjust control knob of regulator to the required flow rate, indicated on gauge dial. (Refer to Figure 3-3) The gas flow rate should be adequate to cover the weld zone to stop weld porosity. Excessive gas flow rates may cause turbulence and weld porosity.

  • Page 27: Attaching The Gun And Cable Assembly To The Power Source

    Lubricate the O-ring on the quick-connect fitting of the gun cable with grease (Dow company #4 com- pound or equivalent, or Thermal Arc #903910) 2. Route the gun cable through the access hole in the front panel. Refer to Figures 3-5 and -3-6.
  • Page 28 FABRICATOR 210 Front Panel Access Hole Art # 0-7148 Trigger Receptacle Figure 3-5: Route Gun Cable Through Front Panel Access Hole and Connect Trigger Loosen Thumbscrew Art # A-07149 Tighten Thumbscrew Figure 3-6: Mount Gun Cable to Adapter Socket June 19, 2006...

  • Page 29: Input And Output Wire Guide Installation

    FABRICATOR 210 3.09 Input And Output Wire Guide To ensure proper wire feed, the groove closest to the motor must match the electrode wire size being used. Installation Refer to Figure 3-7. .045” (1.2mm) Stamping Install the input wire guide (the longer one) by loosening .045 the input guide lockscrew and inserting the guide into the hole in the feedhead assembly.

  • Page 30: Installing Wire Spool

    FABRICATOR 210 3.11 Installing Wire Spool As delivered from the factory, the unit is set for a 33/44 lb. or 12" (300mm) spool. Installation of wire spool 1. Remove Wire Spool Hub Nut by turning counter clock wise (to the left). 2.

  • Page 31: Inserting Wire Into The Feedhead

    FABRICATOR 210 3.12 Inserting Wire into the Feedhead WARNING ELECTRIC SHOCK CAN KILL! Make certain the input power is disconnected from the power supply before proceeding. Do not reattach the input power until told to do so in these instructions. 1.

  • Page 32: Wirefeeder Drive Roller Pressure Adjustment

    FABRICATOR 210 Wheel Brake Hex Head Bolt Wire Drive Tension Adjuster Art # A-07162 Spool Hub Nut Figure 3-12: Wire Installed 3.13 Wirefeeder Drive Roller Pressure Adjustment The roller on the swing arm applies pressure to the grooved roller via an adjustable tension devise. The Tension Adjuster should be set to a minimum pressure that will provide satisfactory wire feed without slippage.

  • Page 33: Spool Gun Attachment

    FABRICATOR 210 3.15 Spool Gun Attachment A spool gun can readily be used with the Fabricator 210 power supply. 1. Attach appropriate input gas to the Spool Gun input gas connection on the rear of the unit. (Refer to Figure. 3- 2.

  • Page 34: Polarity Changeover

    FABRICATOR 210 3.16 Polarity Changeover WARNING ELECTRIC SHOCK CAN KILL! Make certain the input power is disconnected from the power supply before proceeding. Do not reattach the input power until told to do so in these instructions. The output terminals are located on the front panel of the welding power source. CABLE TO GUN, CABLE TO WORK CABLE CONNECTIONS PROCESS...
  • Page 35 FABRICATOR 210 Work Lead Connected for D.C. Electrode Negative (DCEN) Welding Art # A-07164 Figure 3-15: Polarity Connections for DCEN Changing polarity process. a. Locate the two terminal knobs at the front of the machine. Refer to Figures 3-14 and 3-15. b.
  • Page 36 FABRICATOR 210 NOTES: 3-16 June 19, 2006...

  • Page 37: Operation

    FABRICATOR 210 SECTION 4: OPERATION WARNING DO NOT TOUCH the electrode wire while it is being fed through the system. The electrode wire will be at welding voltage potential. 4.01 Power Supply Controls, Indicators and Features Thermal Overload Indicator Spool / MIG Gun Selector Switch Wire Feed Speed Control Power ON/OFF Switch Coarse Voltage Switch Selector...
  • Page 38 FABRICATOR 210 ON / OFF Power Switch The indicator light is provided to indicate when the Fabricator 210 is connected to the Input Power Supply Voltage. With the switch in the Standby position, the auxiliary power and the fan are turned off and the switch is illuminated. WARNING When the light is lit, the machine is connected to the Mains supply voltage and the internal electrical components are at Mains voltage potential.
  • Page 39 FABRICATOR 210 Positive and Negative Welding Current Terminals Spool Gun Interface Amphenol Connector Refer back to Figure 4-1. Both terminals located at The Spool Gun Interface 10 pin connector is used to the bottom of the unit are shown without the terminal connect a spool gun to the Fabricator 210 (refer to knob.

  • Page 40: Weld Mode Selector

    FABRICATOR 210 4.02 Weld Mode Selector The Weld Mode Selector switch selects the method of welding mode. WELD WELD DWELL DWELL WELD MODE WELD MODE (STITCH) (STITCH) (SPOT / STITCH) (SPOT / STITCH) STITCH STITCH SPOT SPOT 4T 4T 2T 2T BURNBACK BURNBACK Art # A-07183...
  • Page 41 FABRICATOR 210 STITCH: Dwell Stitch This mode of welding is used to weld two or more DWELL (STITCH) TIMER CONTROL components together with a stitch weld. The WELD When the Weld Mode control is in the Stitch position, the (Spot/Stitch) shaft controls the welding or ‘ON’ time Dwell (Stitch) knob controls the length of the non-weld and the "DWELL (Stitch)"...

  • Page 42: Tweco Weldskill 250 Amp Weld Gun

    TWECO Weldskill MIG guns may be fitted to many different types of MIG welding Power Supplies so that your whole shop can be converted to TWECO Weldskill. Not only will this give greater reliability (and hence greater productivity) but it will reduce stockholding of consumable parts. See your Thermal Arc distributor for details. Gun Consumable Parts See Appendix at the back of this manual.

  • Page 43: Mig Gun Maintenance

    FABRICATOR 210 2. To install a new conduit, first inspect the o-ring gas seal on the conduit for cuts or damage. Start from the connector plug end of the assembly and begin pushing the conduit through the connector plug, cable assem- bly and into the gun.

  • Page 44: Basic Welding Technique

    FABRICATOR 210 4.05 MIG Gun Maintenance Remove dust and metallic particles from the gun conduit by forcing clean, dry compressed air into the conduit once a week. This will minimize wire feeding problems. 4.06 Basic Welding Technique Setting of the Power Supply The setting of the Fabricator 210 requires some practice by the operator, the welding Power Supply having two control settings that have to balance.
  • Page 45 FABRICATOR 210 Distance from the MIG Gun Nozzle to the Work Piece The electrode stick out from the MIG gun nozzle should be between 5/64" (2.0mm) to 13/64" (5.0mm). This distance may vary depending on the type of joint that is being welded. Flux Cored Wire Solid Wire Art # A-07186...

  • Page 46: Stitch Welding Operation

    FABRICATOR 210 Advantages of MIG welding forehand: - Allows superior visibility of the weld zone - Flatter weld bead - Shallower penetration Vertical Forehand Backhand Art # A-07185 Figure 4-16: MIG Gun Angle 4.07 Stitch Welding Operation Welding consumable costs can be reduced by replacing a continuous weld bead with the Stitch weld bead. It will also reduce heat distortion in thin plate.

  • Page 47: Spot Welding Operation

    FABRICATOR 210 4.08 Spot Welding Operation Fit an optional spot welding nozzle to the MIG gun for consistent spot welding operations. The Fabricator 210 will operate effectively using .030” (0.8mm) electrode wire when spot welding. Penetration depth is limited when using .024”(0.6mm) electrode wire for spot welding.

  • Page 48: Gas Selection For Gas Metal Arc Welding

    FABRICATOR 210 4.09 Gas Selection for Gas Metal Arc Welding Suggested Base Plate Filler Transfer Welding Metal Type Shielding Comments Thickness Metal Mode Positions Carbon Greater than 22 ER70S-X Short High welding speeds. Good 100% CO Steel gauge (.030”) Circuit Position penetration and pool control.
  • Page 49 FABRICATOR 210 THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK June 19, 2006 4-13...

  • Page 50: Welding Setting Selection Guide

    FABRICATOR 210 4.10 Welding Setting Selection Guide Shielding Gas Wire Size Material Type Wire Type (Diameter) and Flow Rate .023” (0.6mm) .030” (0.8mm) 100% CO 25cfh .035” (0.9mm) .045” (1.2mm) .023” (0.6mm) Solid .030” (0.8mm) 75% Ar 25% (or hard) Steel ,25cfh .035”...
  • Page 51 FABRICATOR 210 THICKNESS ** Coarse Voltage Fine Voltage Step Wire Coarse Fine Speed Voltage Voltage 22 ga. (0.8mm) 18 ga. (1.2mm) 16 ga. (1.6mm) 1/8” (3.2mm) 3/16” (5.0mm) 1/4” (6.4mm) 3/8” (9.5mm) 1/2” (12.7mm) 2.25 2.75 4.25 2.25 2.75 4.25 5.25 7.25 2.25...
  • Page 52 FABRICATOR 210 NOTES 4-16 June 19, 2006...

  • Page 53: Maintenance

    FABRICATOR 210 SECTION 5: MAINTENANCE 5.01 Routine Maintenance & Inspection The only routine maintenance required for the Fabricator 210 is a thorough cleaning and inspection, with the fre- quency depending on the usage and the operating environment. WARNING Disconnect the Fabricator from the Input power supply voltage before disassembling. Special maintenance is not necessary for the control unit parts in the Power Supply.
  • Page 54 FABRICATOR 210 Maintain more often Warning! if used under severe Disconnect input power before maintaining. conditions Each Use Visual check of torch Visual check of Consumable parts regulator and pressure Weekly Visually inspect the torch Visually inspect the body and consumables cables and leads.

  • Page 55: Troubleshooting

    The basic level of troubleshooting is that which can be performed without special equipment or knowledge, and without removing the covers from the Power Supply. If major components are faulty, then the Power Supply should be returned to an Accredited Thermal Arc Service Agent for repair.

  • Page 56: Solving Problems Beyond The Welding Terminals

    FABRICATOR 210 6.02 Solving Problems Beyond the Welding Terminals The general approach to fix GMAW/FCAW problems is to start at the wire spool then work through to the MIG torch. There are two main areas where problems occur: Porosity When there is a gas problem the result is usually porosity within the weld metal. Porosity always stems from some contaminant within the molten weld pool which is in the process of escaping during solidification of the molten metal.
  • Page 57 FABRICATOR 210 2. Inconsistent wire feed FAULT CAUSE REMEDY 1. Wire spool brake is a. Feed roller driven by motor in the cabinet will slip. too tight. 2. Wire spool brake is a. Wire spool can unwind and tangle too loose. a.

  • Page 58: Welding Problems

    FABRICATOR 210 6.03 Welding Problems FAULT CAUSE REMEDY 1. Welding arc voltage a. Reduce voltage by reducing the voltage too high. selection switch position or increase the wire feed speed. A. Undercut 2. Incorrect torch a. Adjust angle angle 3. Excessive heat a.
  • Page 59 6. Weld speed too fast a. Reduce weld speed. 1. Faulty rectifier unit a. Have an Accredited THERMAL ARC Service Agent to test then replace the faulty component. B. Cold weld puddle 2. Loose welding cable a.
  • Page 60 FABRICATOR 210 June 19, 2006...

  • Page 61: Advanced Troubleshooting

    FABRICATOR 210 SECTION 7: ADVANCED TROUBLESHOOTING If the problem cannot be solved by the basic (external) trouble shooting guide, the Power Source covers and/or the Wire Feeder covers will have to be removed. The advanced level of troubleshooting allows the technician with a few common tools to remove the covers and analyze failures.

  • Page 62: Initial Setup Conditions

    FABRICATOR 210 7.02 Initial Setup Conditions 7.03 Primary Power Test Set the power supply controls and connect cables as A. Close primary disconnect device and observe the follows: following: 1. ON/OFF Switch to OFF Position 1. Green Indictor Lamp inside ON/OFF Switch illuminates 2.

  • Page 63: Logic And Control Tests

    FABRICATOR 210 7.04 Logic and Control Tests H. Set BURNBACK CONTROL potentiometer to minimum. Set MODE SELECTOR SWITCH to SPOT position A. Depress Gun Switch and observe the following: 1. Depress Gun Switch 1. Gas flows a. Gas Flows 2. Contactor energizes b.

  • Page 64: Spool Gun Control (J1) Test

    FABRICATOR 210 H. Set WELD (SPOT/STITCH) TIMER CONTROL to 7.05 Spool Gun Control (J1) Test Maximum position "4" . Set DWELL (STITCH) TIMER A. Set MIG GUN / SPOOL GUN SELECTOR SWITCH to CONTROL to Maximum Position "4" SPOOL GUN position. 1.

  • Page 65: Output Voltage Test

    FABRICATOR 210 7.06 Output Voltage Test A. Set COARSE VOLTAGE SELECTOR SWITCH to position "1" B. Set FINE VOLTAGE SELECTOR SWITCH to position "1" C. Connect voltmeter probes to + & - WELDING TERMINALS D. Depress Gun Switch and observe voltage E.

  • Page 66: Wire Feed & Weld Test

    FABRICATOR 210 7.07 Wire Feed & Weld Test 7.08 Primary Power Problems A. Close the PRESSURE ADJUST DEVICE. Connect the GUN A. Green Indicator in ON/OFF Switch is not POLARITY LEAD to the POSITIVE WELDING TERMINAL illuminated and fan does turn when ON/OFF switch is in the ON position.

  • Page 67: Logic And Control Problems

    FABRICATOR 210 8. Faulty MAIN PCB 1 7.09 Logic and Control Problems a. Measure between JB-4 to JB-11 at PCB 1 for A. Nothing happens when gun switch is depressed; approx 30 VAC when gun switch is closed. If No gas flow, contactor does not energize, feed voltage is not present, replace PCB.

  • Page 68: Spool Gun Control (J1) Problem

    FABRICATOR 210 3. Defective MIG GUN / SPOOL GUN SELECTOR 7.10 Spool Gun Control (J1) Problem SWITCH SW2 A. Gas does not flow when jumper is connected a. Check continuity of SW2. between J11 Pins D & G 4. Defective WIRE FEED MOTOR M2 1.

  • Page 69: Terminal Block Voltage Test

    FABRICATOR 210 7.13 Terminal Block Voltage Test Line 1 208 V 208V Main Transformer 230 V 230V Fan Primary 230V Note: Voltage Tolerance = +/-5V Art # A-07541 Figure 7-1: Input Terminal Block Diagram June 19, 2006...

  • Page 70: Sw3 Coarse And Sw4 Fine Rotary Switch Test

    FABRICATOR 210 7.14 SW3 Coarse and SW4 Fine Rotary Switch Test TOP OF SWITCH TERMINAL # TERMINAL # WIRE # BOTTOM OF SWITCH WIRE # TERMINAL # TERMINAL # WIRE # Figure7-2: 4-Position Rotary Switch, Coarse TOP OF SWITCH TERMINAL # TERMINAL # WIRE # BOTTOM OF SWITCH...
  • Page 71 FABRICATOR 210 VOLTAGE CONTROL SWITCH TEST One at a time remove SW-3 and SW-4 from front panel, disconnect wires, reconnect to panel and check continuity of switch per figure 7-5. Set Screw Knob Retainer Locking Collar Rotary Switch (SW4 Fine) Figure 7-4: Rotary Switch SW3 and SW4 Removal SWITCH 3 COARSE AND SWITCH 4 FINE TRAN...

  • Page 72: Mig Timer Pcb (Pcb2) Test

    FABRICATOR 210 7.15 MIG Timer PCB (PCB2) Test Using the MAIN PCB terminal JB-5 as common measure the voltage at JD-1. This should measure 20VDC when the Gun Switch is closed. Then measure the voltage at JD-2. WELD MODE SELECTOR WITCH VOLTAGE AT JD-2 POSITION 10VDC when Gun Switch closed.

  • Page 73: Rectifier Assembly Test

    FABRICATOR 210 7.16 Rectifier Assembly Test 1. Disconnect one of the Main Transformer connections from the rectifier assembly. 2. Disconnect and isolate wires from the Negative output of the Rectifier Assembly See Figure 7-3. 3. Disconnect JB connector from MAIN PCB 1. 4.

  • Page 74: Main Transformer Test

    FABRICATOR 210 7.17 Main Transformer Test Disconnect the secondary of the Main Transformer T2 from the rectifier bridge and measure output voltage between the two transformer output connections as follows: COARSE VOLTAGE SELECTION FINE VOLTAGE SELECTOR VOLTAGE AC (approx.) SWITCH SETTING SWITCH SETTING 13.3 13.9...

  • Page 75: Circuit Operation

    FABRICATOR 210 SECTION 8: CIRCUIT OPERATION 8.01 Circuit Operation Of The Control PCB 7977964 Power Supply 24VAC is taken from the auxiliary wiring of the fan. This voltage is then connected to the PCB 7977964 where it is half wave rectified and filtered. This voltage is then fed to a zener regulator to provide the +15VDC supply for the electron- ics on the circuit board Inputs to the Control PCB CONNECTOR JA...

  • Page 76: Circuit Operation Of The Digital Volt/Amp Pcb 704883

    FABRICATOR 210 CONNECTOR JB 8.02 Circuit Operation Of The MIG Timer PCB 7977965 Terminal JB-1 wiper of wire speed control potentiometer, This board is connected by way of a 6-way cable and varies between <2V to approximately 4.7VDC does not have any terminals available to measure. (pot wiper) reference JA-5 or JB-5...

  • Page 77: Circuit Operation Of The Spool Gun Pcb 7978034

    FABRICATOR 210 8.04 Circuit Operation Of The Spool Gun Terminal X2/4 trigger relay - connects to trigger input of PCB 7978034 7977964 PCB CONNECTOR X1 Terminal X2/5 trigger relay - connects to trigger input of Terminal X1/1 7977964 PCB motor relay "normally open" - connects to spool gun motor Terminal X2/6...
  • Page 78 FABRICATOR 210 June 19, 2006...

  • Page 79: Parts List

    FABRICATOR 210 SECTION 9: PARTS LIST 9.01 Equipment Identification All identification numbers as described in the Introduction chapter must be furnished when ordering parts or making inquiries. This information is usually found on the nameplate attached to the equipment. Be sure to include any dash numbers following the Specification or Assembly numbers.

  • Page 80: External Replacement Parts

    FABRICATOR 210 9.03 External Replacement Parts ITEM ITEM ITEM ITEM ITEM P P P P P AR ART NUMBER T NUMBER T NUMBER T NUMBER T NUMBER DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION REF DESIGNA REF DESIGNA REF DESIGNA REF DESIGNA REF DESIGNATION TION TION...
  • Page 81 FABRICATOR 210 6, 24 25, 26 Art # A-07557 June 19, 2006...

  • Page 82: Major Electrical And Mechanical Replacement Parts

    FABRICATOR 210 9.04 Major Electrical and Mechanical Replacement Parts ITEM ITEM ITEM ITEM ITEM P P P P P AR ART NUMBER T NUMBER T NUMBER T NUMBER T NUMBER DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION REF. DES . DES . DES .

  • Page 83: Internal Replacement Parts (1)

    FABRICATOR 210 9.05 Internal Replacement Parts (1) ITEM ITEM ITEM ITEM ITEM P P P P P AR ART NUMBER T NUMBER T NUMBER T NUMBER T NUMBER DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION REF DESIGNA REF DESIGNA REF DESIGNA REF DESIGNA REF DESIGNATION TION TION...

  • Page 84: Internal Replacement Parts (2)

    FABRICATOR 210 9.06 Internal Replacement Parts (2) ITEM ITEM ITEM P P P P P AR ART NUMBER T NUMBER T NUMBER T NUMBER DESCRIPTION DESCRIPTION DESCRIPTION REF DESIGNA REF DESIGNA REF DESIGNATION TION TION TION ITEM ITEM T NUMBER DESCRIPTION DESCRIPTION REF DESIGNA...

  • Page 85: Internal Replacement Parts-Spool Assembly

    FABRICATOR 210 9.07 Internal Replacement Parts-Spool Assembly ITEM ITEM ITEM ITEM ITEM P P P P P AR ART NUMBER T NUMBER T NUMBER T NUMBER T NUMBER DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION See Note Screw,Hex HD,3/8"-16x3/4",STZP 170459-001 Plunger, Spring, Nut Hub 405377 Nut, Wire Spool Hub 374552-001...

  • Page 86: Internal Replacement Parts-Wire Feed

    FABRICATOR 210 9.08 Internal Replacement Parts-Wire Feed ITEM ITEM ITEM ITEM ITEM P P P P P AR ART NUMBER T NUMBER T NUMBER T NUMBER T NUMBER DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION Feed rolls and guides may be found in the Feed Roll kit located in the Appendix section of this manual. 870387PKD Gear, Idle Roll, 2R Plate 871010PKD...

  • Page 87: Wire Feeder Replacement Parts

    FABRICATOR 210 9.09 Wire Feeder Replacement Parts Item Item Item Item Item Qty Qty Ref Ref. Des. . Des. . Des. . Des. . Des. Description Description Description Description Description Part Number Part Number Part Number Part Number Part Number Rod, Tension Subassembly, WF 870933PKD Pressure Arm, 2R M/C, WF...
  • Page 88 FABRICATOR 210 June 19, 2006 9-10...

  • Page 89: Appendix 1: Optional Accessories And Consumables

    FABRICATOR 210 APPENDIX 1: OPTIONAL ACCESSORIES AND CONSUMABLES For Tweco/Victor Inquiries and Orders: Call 1-800-318-6819 Consumable Parts Management Group GUNS Tweco® WeldSkill 12ft 20584 Gun assembly with 15ft cable (supplied with package), 250 Amp @ 30% Tweco® No. 2 12ft 212-3035 Gun assembly with 12ft cable, 250 Amp @ 60% Tweco®...

  • Page 90: Appendix 2: Options And Accessories (Con't

    FABRICATOR 210 APPENDIX 2: OPTIONS AND ACCESSORIES (CON'T) For Tweco/Victor Inquiries and Orders: Call 1-800-318-6819 Consumable Parts Management Group SPOT WELDING NOZZLES TYPE NO. 3 NO.5 500 AMP MINI & NO. 1 NO. 2 250 NO.4 400 150 AMP Flat Arc Spot 21-62-FAS 22-62-FAS 23-75-FAS...

  • Page 91: Appendix 3: Feed Roll Kits

    FABRICATOR 210 APPENDIX 3: FEED ROLL KITS DRIVE ROLL KITS (#375980-Series) 2 ROLL Style 1 Style 2 Style 3 Style 4 Style 5 Style 6 Double Smooth Double Flat Flat Knurled "V" Knurled "V" Double Cog Double "U" Double Double Double Smooth Double Smooth "V"...

  • Page 92: Appendix 4: Power Supply Circuit Diagram

    FABRICATOR 210 APPENDIX 4: POWER SUPPLY CIRCUIT DIAGRAM 1E BRN Input Terminal Block 1F BRN White 1B BRN 208V 14&14A BLK 1 BRN K1\3 1D BRN 1H BRN K1\2 Black 230V 1C BRN 1G BRN COARSE K1\1 1A BRN Earth Green\Yellow CONTACTOR INDL...
  • Page 93 FABRICATOR 210 Bridge Rectifier POSITIVE OUTPUT Inductor TERMINAL 8&8A BRN (12) (11) + C1 Varistor 9&9A BLK (10) F1-S2 COARSE (14) (13) (16) (15) 10&10A RED 11&11A GRY NEGATIVE (12) (11) F3-S4 OUTPUT 12&12A BRN FINE (10) TERMINAL 47 GRY (14) (13) 13&13A VIO...

  • Page 94: Appendix 5: Main Pcb Circuit Diagram

    FABRICATOR 210 APPENDIX 5: MAIN PCB CIRCUIT DIAGRAM 30 VAC Art # A-07520 June 19, 2006...
  • Page 95 FABRICATOR 210 82 BENNING SREET WEST LEBANON, NH 03784, USA DESCRIPTION: FABRICATOR MAIN PCB 7977964 Art # A-07520 June 19, 2006...

  • Page 96: Appendix 6: Spot Timer Circuit Diagram

    FABRICATOR 210 APPENDIX 6: SPOT TIMER CIRCUIT DIAGRAM Art # A-07521 June 19, 2006...
  • Page 97 FABRICATOR 210 82 BENNING SREET WEST LEBANON, NH 03784, USA DESCRIPTION: FABRICATOR SPOT TIMER 7977965 CODE DESIGN: Art # A-07521 June 19, 2006...

  • Page 98: Limited Warranty

    No employee, agent, or representative of thermal arc is authorized to change this warranty in any way or grant any other warranty, and thermal arc shall not be bound by any such attempt.

  • Page 99: Warranty Schedule

    All other original circuits and components including, but not limited to, relays, switches, contactors, solenoids, fans, power switch semi-conductors.......... 1 year 1 year Engines and associated components are NOT warranted by Thermal Arc, although most are warranted by the engine manufacturer ............. See the Engine Manufactures Warranty for Details...

  • Page 101: Global Customer Service Contact Information

    GLOBAL CUSTOMER SERVICE CONTACT INFORMATION Thermadyne USA Thermadyne Asia Sdn Bhd 2800 Airport Road Lot 151, Jalan Industri 3/5A Denton, Tx 76207 USA Rawang Integrated Industrial Park - Jln Batu Arang 48000 Rawang Selangor Darul Ehsan Telephone: (940) 566-2000 West Malaysia 800-426-1888 Fax: 800-535-0557 Telephone: 603+ 6092 2988...
  • Page 102 World Headquarters Thermadyne Holdings Corporation Suite 300, 16052 Swingley Ridge Road St. Louis, MO 63017 Telephone: (636) 728-3000 Fascimile: (636) 728-3010 Email: sales@thermalarc.com www.thermalarc.com...

This manual is also suitable for:

Fabricator 210

Table of Contents
