MDB Family 4 in 1 Crib Assembly And Operation Manual page 3

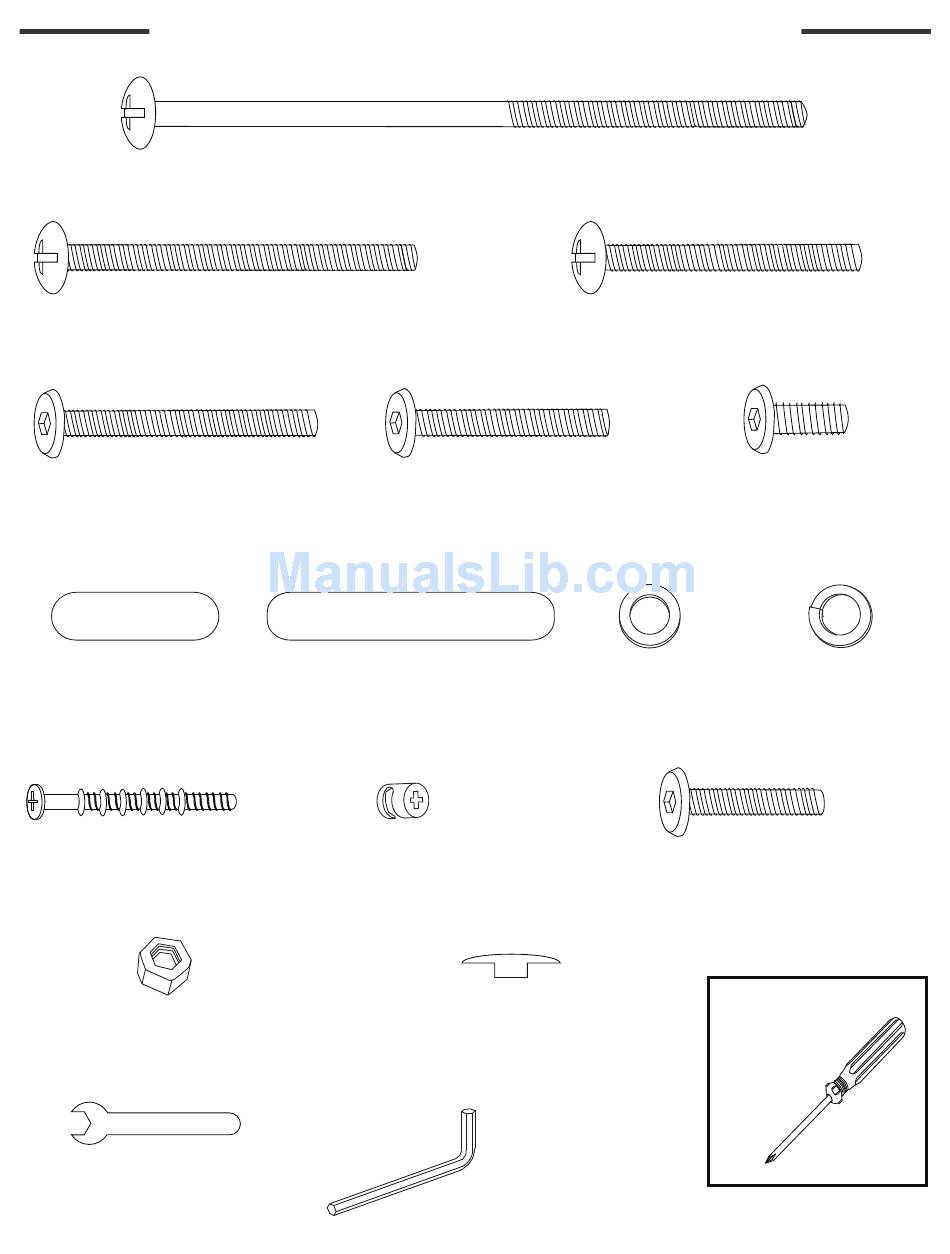

HARDWARE • ACCESSOIRES DE MONTAGE
H2. 3" Round Head Bolt (4)
H2. Boulons à tête ronde de 76.2 mm (3 po) (4)
H4. 2-1/4" Allen Head Bolt (12)
H4. Boulon Allen de 57 mm
(2-1/4 po) (12)
H7. Small Wood Dowel (6)
H7. Petit goujon de bois (6)
H11. Cam bolt (4)
H11. Boulon de came (4)
H14 Bolt cap (4)
H14. Chapeau de boulon (4)
H16. Wrench (for bracket)
H16. Clé (pour supports)
H1. 5-1/2" Round Head Bolt (2)
H1. Boulons à tête ronde de 139.7 mm (5-1/2 po) (2)
H5. 1-3/4" Allen Head Bolt (4)
H5. Boulon Allen de 44 mm
H8. Large wood dowel (3)
H8. Grand goujon de bois (3)
H12. Cam lock (4)
H12. Verrou decame (4)
H15.Capuchon en plastique (4)
H3. 2-1/4" Round Head Bolt (4)
H3. Boulons à tête ronde de 57 mm (2-1/4 po) (4)
(1-3/4 po) (4)
H9. Washer (8)
H9. Rondelle (8)
H13. Boulon Allen de 32 mm (1-1/4 po) (4)
H15. Plastic Plug (4)
H17. Allen wrench
H7. Clef Allen
H6. 3/4" Allen Head Bolt (4)
H6. Boulon Allen de 19 mm
(3/4 po) (4)
H10. Lock washer (34)
H10. Rondelle de
blocage (34)
H13. 1-1/4" Allen head bolt (4)
Tools Needed
(not included)
Outils requis
(non inclus)
Phillips
screwdriver
Tournevis
cruciforme
page 3
