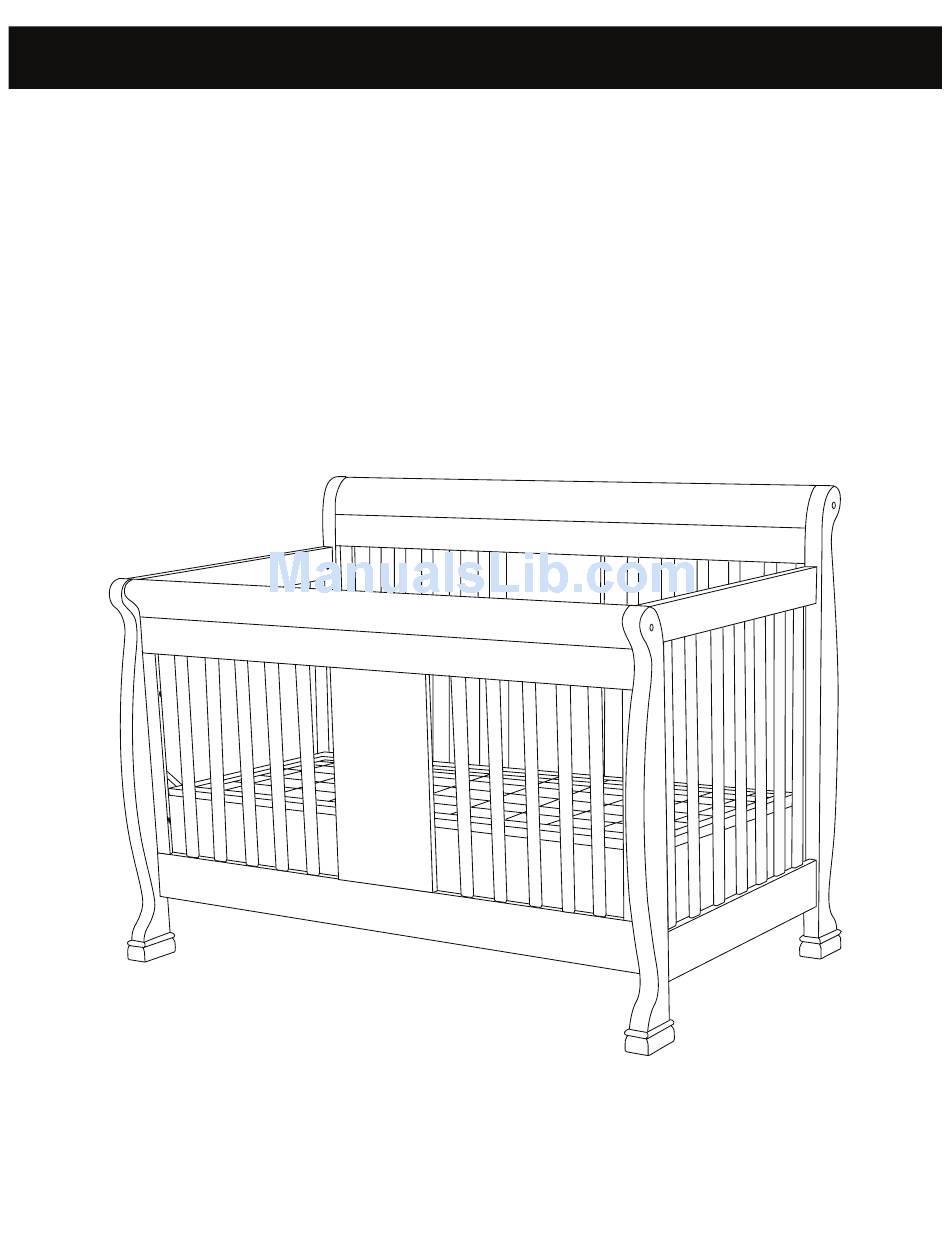

Crib (8501) - Assembly and Operation Manual
Congratulations on purchasing an MDB Family product. This crib will provide many years of service if you
adhere to the following guidelines for assembly, maintenance and operation. This crib is for residential use
only. Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for assembling
the crib in addition to the Allen wrench included in the hardware box. Do not use power screwdrivers. All of
our cribs are made from natural woods. Please understand that natural woods have color variations which
are the result of nature and not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARD-
WARE. YOUR MODEL MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLISTIC
VARIATIONS.
* This crib can later be converted into a
toddler bed or a full-size bed. To convert
to a toddler bed, turn to page 8. To con-
vert to a full-size bed, turn to page 9.
revised 30SEP2014
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MDB Family 8501
Summary of Contents for MDB Family 8501
- Page 1 Crib (8501) - Assembly and Operation Manual Congratulations on purchasing an MDB Family product. This crib will provide many years of service if you adhere to the following guidelines for assembly, maintenance and operation. This crib is for residential use only.
- Page 2 PARTS A. Headboard Side B. Stationary Side F. Front E. Front Right Leg Left Leg C. Left End Panel D. Right End Panel G. Mattress Support IV P. Cross Bar (2) Tools Needed (not included) Q. Toddler Bed Conversion Kit Phillips screwdriver N.
- Page 3 HARDWARE H2. 2-1/4” Allen Head Bolts (12) H1. 3” Round Head Bolts with Nuts (4) H3. 2” Round Head Bolts (4) H4. 1-3/4” Allen Head Bolts (4) H5. 3/4” Allen Head Bolts (4) H6. 1-3/4” Phillips H8. Wood H7. Washer (4) Head Screws (4) Dowels (8) H9.
- Page 4 Do not overtighten the bolts. Step 3a.) Do not overtighten the bolts. Page 4...
- Page 5 * Make sure the mattress support IV (G) is installed FLAT SIDE UP. * Make sure the mattress support IV (G) is level. H11 H5 Do not overtighten the bolts. Step 5a.) Step 5b.) Page 5...
-
Page 6: Sample Label
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. Finish Be sure to tighten the cross bar screws now that you have installed to the stationary side. Recheck all screws and bolts to be sure they are fastened securely. Before placing your mattress in the crib, you can make your own mattress protector by cutting the cardboard packing insert to 27”... -
Page 7: Care And Cleaning
DO NOT substitute parts. Contact a soft rag. Rinse and dry thoroughly. If you ever MDB FAMILY for replacement parts and instructional literature if needed. refinish this furniture, be sure to use only a non-toxic •... - Page 8 Crib (8501) - Toddler Bed Conversion Assembly Instructions * All of the parts and hardware you will need are supplied with the crib at the time of purchase. ASSEMBLY INSTRUCTIONS Do not overtighten the bolts. Page 8...
- Page 9 Finish TO AVOID DANGEROUS GAPS, ANY MATTRESS USED IN THIS BED SHALL BE A FULL-SIZE CRIB MATTRESS AT LEAST 51 5⁄8 IN. (1310 MM) IN LENGTH, 27 1⁄4 IN. (690 MM) IN WIDTH, AND A MAX THICKNESS OF 6 IN. (150 MM). THE INTENDED USER'S MINIMUM AGE MUST BE AT LEAST 15 MONTHS OLD AND MAXIMUM WEIGHT MUST NOT EXCEED 50 LBS (22.7 KG).
