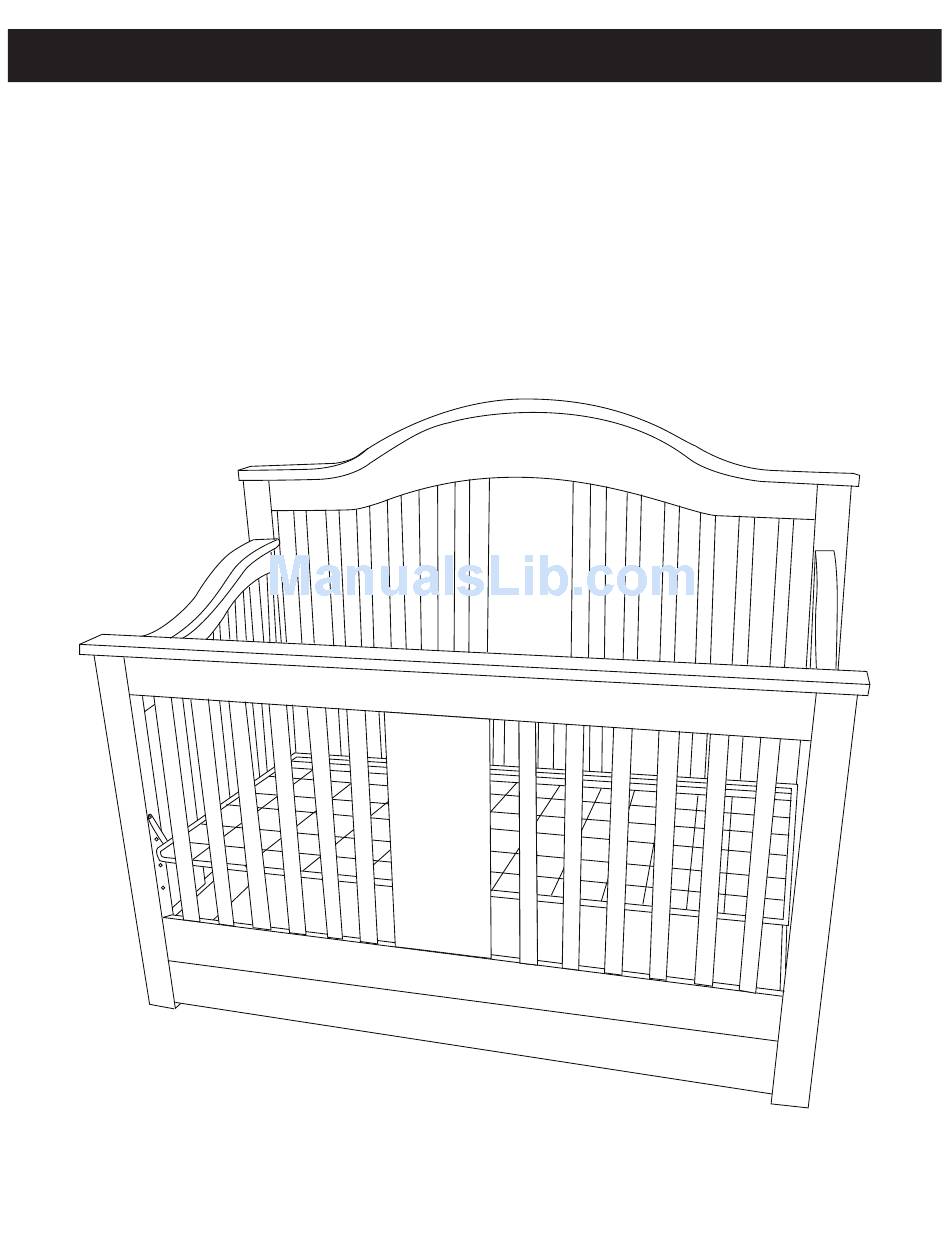

Crib (5971) - Assembly and Operation Manual
Congratulations on purchasing an MDB Family product. This crib will provide many years of service if
you adhere to the following guidelines for assembly, maintenance and operation. This crib is for residen-
tial use only. Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for assem-
bling the crib in addition to the Allen wrench included in the hardware box. Do not use power screwdriv-
ers. All of our cribs are made from natural woods. Please understand that natural woods have color vari-
ations which are the result of nature and not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARD-
WARE. YOUR MODEL MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLISTIC
VARIATIONS.
* The crib can later be converted into a
toddler bed or a full-size bed. To convert
to a toddler bed, turn to page 8. To
convert to a full-size bed, turn to page 9.
Page 1
revised 28MAY2013
Advertisement
Table of Contents
Related Manuals for MDB Family 5971 Crib
Summary of Contents for MDB Family 5971 Crib
- Page 1 Crib (5971) - Assembly and Operation Manual Congratulations on purchasing an MDB Family product. This crib will provide many years of service if you adhere to the following guidelines for assembly, maintenance and operation. This crib is for residen- tial use only. Any institutional use is strictly prohibited.
- Page 2 CRIB PARTS A. Back Panel B. Front Panel C-1. Left C-2. Right Side Panel Side Panel D. Back Top Rail E. Front Top Rail H-1. Left Back Leg F-1. Left Side Top Rail F-2. Right Side Top Rail H-2. Right Back Leg I-3.
- Page 3 HARDWARE P. 3” Round Head Bolt (16) Q. 1-3/4” Allen Head Bolt (12) R. 1-1/4” Round Head Bolt (4) S. Washer (4) T. 3/4” Allen U. 1-1/4” Wood Screw W. Small Screw V. Wood Dowel (8) Head Bolt (4) for Drawer (6) for Glides (12) Y-1.
- Page 4 Attach side panels to back panel. STEP 3. Back panel Left side Right side Do not overtighten the bolts. panel panel Attach side top rails to side panels. STEP 4. Do not overtighten the bolts. Outside Outside Attach spring frame. STEP 5.
- Page 5 Attach front panel and front STEP 6. top rail to crib assembly. Do not overtighten the bolts. Attach drawer glides to STEP 7. drawer side panels. Assemble drawer panels. STEP 8. Rotate Cam Lock (Y-2) to fasten. Page 5...
- Page 6 Attach drawer back panel to drawer assembly. STEP 9. Slide the drawer into the crib. STEP 10. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. Before placing your mattress in the crib, you can make your own mattress protector by cutting the cardboard packing insert to 27”...
- Page 7 DO NOT substitute parts. Contact sive chemicals for cleaning. Clean with mild soap on MDB FAMILY for replacement parts and instructional literature if needed. a soft rag. Rinse and dry thoroughly. If you ever refinish this furniture, be sure to use only a non-toxic...
- Page 8 Crib (5971) - Daybed Conversion Assembly * All of the parts and hardware you will need are supplied with the crib at the time of purchase. STEP 1. Move the spring frame (M) to the lowest level. STEP 2. Unscrew the four Round head bolts (P) and lock washers (AA) and remove the front panel assembly.
- Page 9 * For all 4 in 1 cribs, please contact a retailer to order your full size adult wooden bed rails for your full size bed conversion. Congratulations on purchasing an MDB Family product. This product will provide many years of service if you adhere to the following guidelines for assembly, maintenance and operation. This product is for residential use only.
