Bodart&Gonay PHENIX 1150 Instructions For Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®

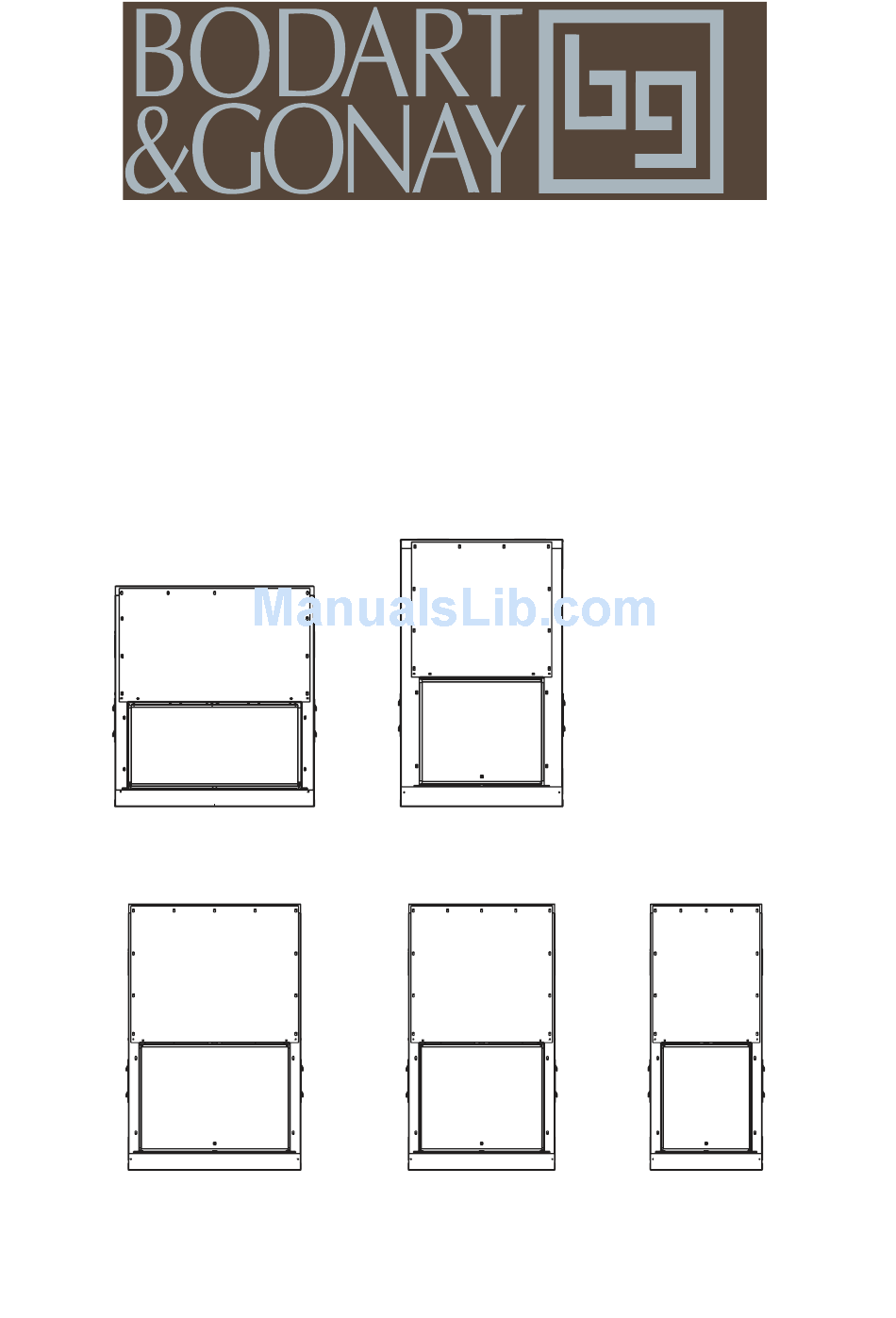

Instructions for use

and maintenance
PHENIX 1150
PHENIX 950DF
PHENIX 1000
PHENIX 850
PHENIX 650
08.08
1
07DHPH2GB
®
PHENIX II - Bodart & Gonay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHENIX 1150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bodart&Gonay PHENIX 1150

Summary of Contents for Bodart&Gonay PHENIX 1150

  • Page 1: Instructions For Use

    ® Instructions for use and maintenance PHENIX 1150 PHENIX 950DF PHENIX 1000 PHENIX 850 PHENIX 650 08.08 07DHPH2GB ® PHENIX II - Bodart & Gonay...
  • Page 2 We wish you much enjoyment and warmth by your Bodart & Gonay hearth. The Customer Service NOTE (to be completed by the installer) * PHENIX II appliance * DISTRIBUTOR: * REFERENCES: 47B11BOV PHENIX 1150 Name ............... 47B10BOV PHENIX 1000 47B95BOV PHENIX 950D No / Street ............47B85BOV PHENIX 850 47B65BOV PHENIX 650 Town ............

  • Page 3: Table Of Contents

    CONTENTS RECOMMENDATIONS 1. Transport 2. Installation 3. Fue 4. First fi re 5. Options INSTRUCTIONS FOR USE AND MAINTENANCE 1.Use: 1.1. Description of parts 1.2. Operation of the automatic key 1.3. Opening and closing the hearth 1.4.Fire fl ue 1.4.1 Air regulator 1.4.2.

  • Page 4: Transport

    RECOMMENDATIONS 1. Transport: OPTION 2. Installation: 1. The hearth must be absolutely level (references: from side and front edge of the fi re box). 2. Unscrew the two screws on the front and remove. 3. Cut the Colson collar around the counterweight and the support. CHECK 4.

  • Page 5: Instructions For Use And Maintenance

    INSTRUCTIONS FOR USE AND MAINTENANCE 1.Use: 1.1. Description of parts 1. Door 2. Counterweight and support. 3. Cover façade 4. Cover 5. Automatic key transmission 6. Automatic key valve 7. Side plates 8. Lateral base plates 9. Base bricks 10. Maintenance of vermiculite plaque 11.

  • Page 6: Opening And Closing The Hearth

    1.3. Opening and closing the hearth 1.4. Fire fl ue The quality of the wood is of vital importance to the optimum operation of the hearth (heat output and power, cleanliness of the glass). High quality wood is: - dry, having been dried for at least two years under ventilated shelter.

  • Page 7: Lighting

    1.4.2. Lighting * Set the air regulator in the maximum position (to the right) * Put a fi re lighter or crumpled paper towards the front. Finish with kindling in the middle. Place 2-4 split logs (according to size) at the back. * Light and lower the door to 4-5 cm from the bottom.

  • Page 8: Option: Fan And Speed Variator

    NOTE: - Avoid using in open fi re mode under adverse weather conditions (low pressure and high humidity) - there is a danger that smoke may blow back into the room! - Attention! For the PHENIX 950D, only open one door at a time! In certain draught conditions, there may be an odour of smoke from the side of the closed window, in which case it is best to keep both doors closed for a moment.

  • Page 9: Maintenance

    2. Maintenance : 2.1. Regular maintenance - Remove excess cinders, and if possible vacuum the ashes from the air distributor and air regulator. - If the fan has a dust fi lter, it should be cleaned frequently. - To clean the glass, open the door laterally and proceed as follows: OPENING PHENIX PHENIX...

  • Page 10: Annual Maintenance

    2.2. Annual maintenance VERMICULITE PLATES Vermiculite is a natural mineral substance (without asbestos) which has been processed and which is completely recyclable. These insulating plates are resistant to very high temperatures. The vermiculite plates must not be exposed to water hence the importance of having a cover on the chimney.
  • Page 11 LUBRICATION If the hearth is used frequently, it is advisable to lubricate the guiding shaft, using only high temperature silicone lubricant (Bodart & Gonay high temperature lubricant available in small packages from your dealer). DO NOT USE OTHER LUBRICANTS - at high temperature they may dry out and block the carriage Clean the surfaces before applying the lubricant.

  • Page 12: Operating Faults

    4. Operating faults FAULTS CAUSES / REMEDIES GLASS BECOMES DIRTY TOO QUICKLY - Door not suffi ciently airtight (check the adjustment of the door). - Wood too damp- Rate of consumption too low - Inappropriate draught (too much or too little) ‘LAZY’...
  • Page 13 4920 Harzé BELGIUM EN 13229:2001 and EN 13229 A2:2004 Inset appliance fired by solid fuel Phenix 650 Mininum insulation thickness: Side wall: 100 mm minimum Back wall: 100 mm minimum Ceiling: 100 mm minimum no insulation required Floor: Recommended fuels :Woodlogs Closed Open...
  • Page 14 4920 Harzé BELGIUM EN 13229:2001 and EN 13229 A2:2004 Inset appliance fired by solid fuel Phenix 850 Mininum insulation thickness: Side wall: 100 mm minimum Back wall: 100 mm minimum Ceiling: 100 mm minimum no insulation required Floor: Recommended fuels :Woodlogs Open Closed...
  • Page 15 4920 Harzé BELGIUM EN 13229:2001 and EN 13229 A2:2004 Inset appliance fired by solid fuel Phenix 1000 Mininum insulation thickness: Side wall: 100 mm minimum Back wall: 100 mm minimum Ceiling: 100 mm minimum no insulation required Floor: Recommended fuels :Woodlogs Open Closed...
  • Page 16 4920 Harzé BELGIUM EN 13229:2001 and EN 13229 A2:2004 Inset appliance fired by solid fuel Phenix 1150 Mininum insulation thickness: Side wall: 100 mm minimum Back wall: 100 mm minimum 100 mm minimum Ceiling: no insulation required Floor: Recommended fuels...

  • Page 17: Installation Instructions

    ® Installation Instructions PHENIX 1150 PHENIX 950DF PHENIX 1000 PHENIX 850 PHENIX 650 ® PHENIX II - Bodart & Gonay...

  • Page 18: Characteristics

    1. Characteristics: The appliance meets standards DIN 18895 and EN 13229* (*only with door closed). PHENIX 1150 ® PHENIX II - Bodart & Gonay...
  • Page 19 PHENIX 1000 ® PHENIX II - Bodart & Gonay...
  • Page 20 PHENIX 950D ® PHENIX II - Bodart & Gonay...
  • Page 21 PHENIX 850 ® PHENIX II - Bodart & Gonay...
  • Page 22 PHENIX 650 ® PHENIX II - Bodart & Gonay...

  • Page 23: Overall Dimensions

    PHENIX 1150 min 1003 mm PHENIX 1000 min 825 mm PHENIX 950DF min 725 mm PHENIX 850 min 725 mm...

  • Page 24: Smoke Fl Ue

    2.4 Leg kit Phénix 650/850 Phénix 950 Phénix 1000/1150 Mini 13 cm Maxi 53 cm 3. Smoke fl ue Recommendations Pr NBN 61-002 The chimney fl ue must be built in compliance with building regu- lations of which the following features are the most important: 5m ideal - Minimum height (distance between connection and top of stack) will be 5 m for a hearth which can operate with...
  • Page 25 - A smoke fl ue may not consist of more than two changes in direction. The angle of these elbows to the vertical may not generally exceed 20°, or 45° 45° 20°- 45° for a fl ue in smooth metal. - The fl...

  • Page 26: External Air Supply

    4. External air supply When a hearth burns wood it consumes air, which means that a certain amount f air leaves by the chimney. This must e compensated by the D' D' D usual intakes A and B, and if inadequate a new fresh air intake C must be provided.

  • Page 27: Convection Air Circuit

    5. Convection air circuit 5.1. Air duct It is essential to open 2-4 air vents depending on the model and installation instructions. These vents must be connected to a duct at least 50 cm high. Thermally insulated ducts recommended for optimum operation of the appliance (these create a draught for convection air). Using 4 hot air vents and 4 hot air intakes signifi...

  • Page 28: Forced Convection

    5.3. Forced convection (optional fan) At least two hot air vents must be opened. It is normal that, when the fan is operating, a little air may escape through these openings (A). For the Phénix 950DF, the side air inlets must be closed. You must ensure, however, that hot air outlets are not too complex to enable good air circulation;...

  • Page 29: Positioning The Hearth

    6.1. Positioning the hearth 1. The hearth must be absolutely level. 2. Unscrew the two screws on the front and remove. 3. Cut the cable tie around the counterweight and the support. CHECK 4. Ensure that the door is operating correctly (lateral opening, lifting/ lowering) 5.
  • Page 30 - Avoid installing the variator near audio and video equipment. 230 V MAX. AC 50Hz T.V. OFF= O MINI. 1. Setting the speed. 2. Setting screw for minimum speed under the button (calibration required). 3. 1.25A fuse (remove the button, unscrew the panel, pull out and replace).

  • Page 31: Placing The Legs

    6.4 Placing the legs ® PHENIX II - Bodart & Gonay...

  • Page 32: Replacement Parts

    7. Replacement parts ® PHENIX II - Bodart & Gonay...
  • Page 33 OPCIONES Y RECAMBIOS PHENIX 1150 OPTIONS AND SPARE PARTS PHENIX 1150 RECAMBIOS / SPARE PARTS Concepto Description Code TRAMPILLA VENTILACION PHENIX 650/8 VENTILATION HATCH PHENIX 650/850/1000 37B10030 REPARTIDOR DE AIRE SIN AGUHERO 115 AIR DISTRIBUTOR WITHOUT HOLE 1150 37B11046 DOSIFICADOR DE AIRE PHENIX 1150...
  • Page 34 OPCIONES Y RECAMBIOS PHENIX 1000 OPTIONS AND SPARE PARTS PHENIX 1000 RECAMBIOS / SPARE PARTS Concepto Description Code TRAMPILLA VENTILACION PHENIX 650/8 VENTILATION HATCH PHENIX 650/850/1000 37B10030 REPARTIDOR DE AIRE CON CANAL 1000 AIR DISTRIBUTOR WITH CHANNEL 1000 37B10046 DOSIFICADOR DE AIRE PHENIX 850/1000 AIR REGULATOR PHENIX 850/1000 37B10032 MANO FRIA PRESTIGE-COMFORT...
  • Page 35 TRAMPILLA VENTILACION PHENIX 650/8 VENTILATION HATCH PHENIX 650/850/1000 37B10030 REPARTIDOR DE AIRE PHENIX 950 DF AIR DISTRIBUTOR PHENIX 950 DF 37B95231 DOSIFICADOR DE AIRE PHENIX 1150 AIR REGULATOR PHENIX 1150 37B11032 MANO FRIA PRESTIGE-COMFORT WIRE HANDLE PRSTIGE-COMF-PHENIX 07Q70073 PUERTA PHENIX 850 PEGADA...
  • Page 36 FACHADA REVESTIMIENTO PHENIX 850 COVER FACIA PHENIX 850 37B85020 LADRILLO 165X115X30 REFRACTORY BRICK 165X115X30 07CB316 VERMICULITA 340 x 114 35 DERECHA VERMICULITE 340 x 114 35 RIGHT 07CV850B VERMICULITA 330 X 320 25 VERMICULITE 330 X 320 25 07CV850A SUJETA PLACA PH 850/1000 PLATE HOLDER PHENIX 850/1000 37B10009 LADRILLO 115X105X30...

  • Page 37: Checklist

    8. Checklist: Check the various minimum installation space dimensions (including room for options!) See p.17. If these dimensions are not respected, it will be impossible to strip down the various component assemblies! Levelling the hearth, 2 reference points. See pp. 4 & 21. Mount the chimney duct and the hot air outlet duct.
