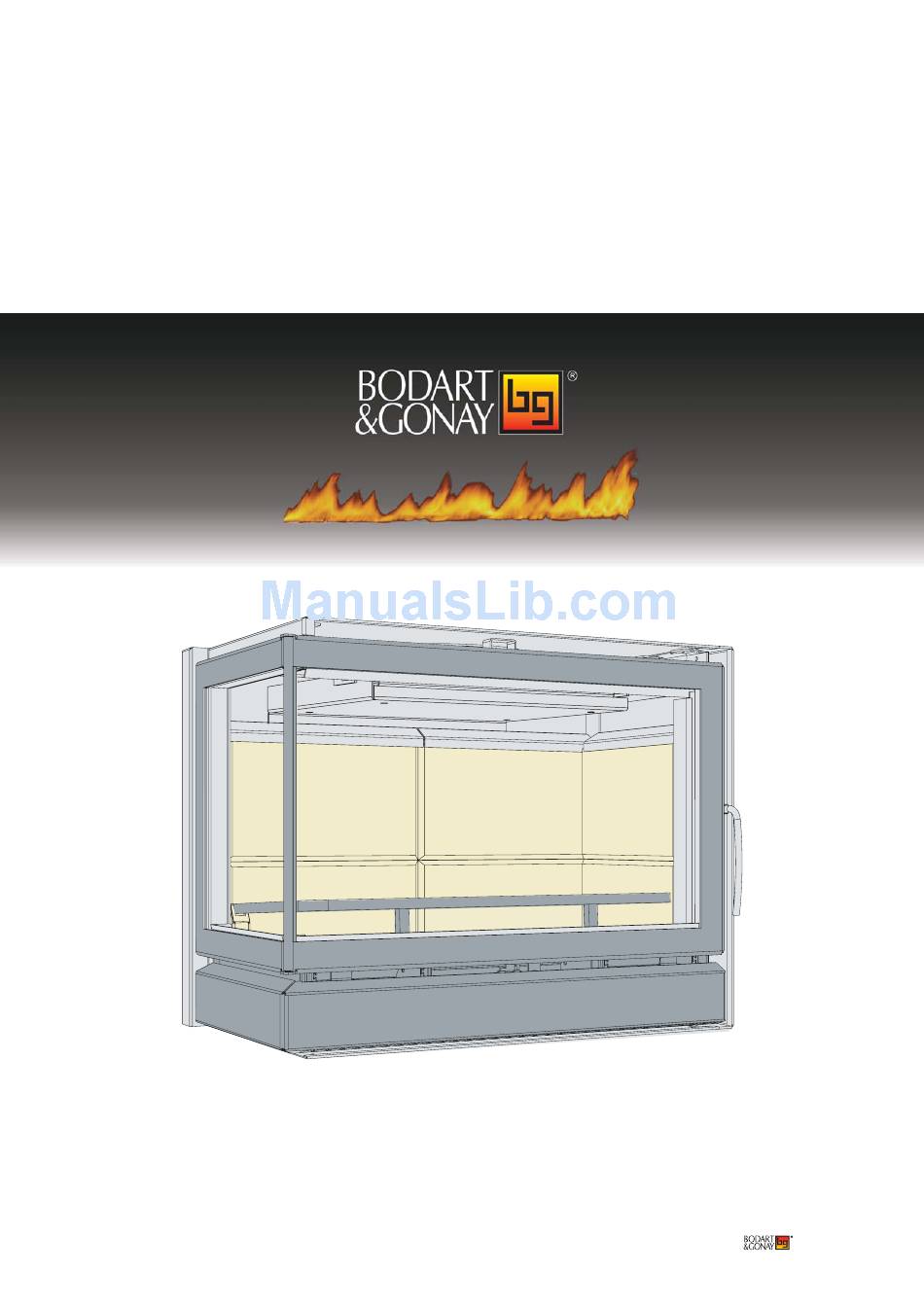

- Page 1 Instructions for use and maintenance Scope Attention: Remove the instructions from the fi replace and give them to the client, 07DHSCOA along with the necessary instructions (explanations and demonstrations). Scope 1...
- Page 2 We wish you lots of pleasure and warmth around your Bodart & Gonay fi replace. Customer Services MEMO * DISTRIBUTOR: (to be completed by the installer) Name ..............* SCOPE APPLIANCE * REFERENCES: Street / No............- Left corner: Town ..............- Right corner: Post code............
-
Page 3: Table Of Contents
Do not touch the paint until the fi replace has cooled down as initially it softens, then hardens for good. 3. With each fi re you must: - Close the door of the ash box. - Position the grill properly. - Turn on the fan. Scope 3... -
Page 4: Use
The lower grill is made of 17. The baffl e: Made of heat-resisting stainless steel, heat-resisting cast iron. The upper grill is operated it lengthens the path of fumes optimising secon- dary combustion and increasing heat transfer. by the deashing arm. 4 Scope... -
Page 5: Fire Behaviour
- It is also possible to use logs of compressed wood shavings and briquettes. An excessive load of wood leads to: - A reduction in yield and an increase in wood consumption. - A signifi cant loss of heat through the chimney. - Premature ageing of the fi replace. Scope 5... -
Page 6: Lighting
Piling logs in parallel encourages a long-lasting fi re. Add more logs when there are only embers left, just after the last fl ames die out. Continuous use at reduced rate may, through condensation, cause an accumulation of soot in the chimney, and thereby a risk of chimney fi re, and dirty the glass more quickly. 6 Scope... -
Page 7: Fans And Speed Variator
When the fi replace is being used, and even if there are no more fl ames, certain accessible parts of the appliance are at very high temperatures. Do not leave children unsupervised near the fi replace. 1.4. Fans and speed variator MAX. MAX. OFF= O OFF= O MINI. MINI. OFF= Scope 7... -
Page 8: Maintenance
If necessary, your supplier can adjust and/or replace it. Check that both the lock and the opening safety work properly. This is in order to ensure good yield and clean glass. ASHTRAY DOOR Check the condition of the seal and if necessary replace it to ensure airtightness. Check the operation of the spring clip. 8 Scope... -
Page 9: Annual Servicing
Stained areas may be restored using special B&G high temperature aerosol paint, which is available from your dealer. FANS Disconnect the electricity supply, remove the fi lter supports (remove the 2 locking screws), disconnect the fans then remove them. Clean the impeller blades using a brush (compressed air is prohibited). Reassem- ble everything. Scope 9... -
Page 10: Spare Parts
3. Spare parts 10 Scope... -
Page 11: Faults
- Thermostat no longer closes - Readjust the position of the lock roller - Check operation of the thermostat In the event of a CHIMNEY FIRE, close immediately the door and the ashtray door, turn off the thermostat. Scope 11... -
Page 12: Guarantee
The guarantee takes eff ect from the date written on the invoice. The invoice is the sole authentic docu- ment for the guarantee. Bodart & Gonay SA - Parc Artisanal de Harzé - Rue de Lambinon, 3 - B-4920 HARZE Tel: 32 (0)4 239 93 93 - Fax: 32 (0)4 239 93 98 info@bodartetgonay.be - www.bodartetgonay.be 12 Scope... - Page 13 Installation instruc Scope Attention: Remove the instructions from the fi replace and give them to the 07DHSCOA client, along with the necessary instructions (explanations and demonstrations). Scope 13...
- Page 14 For combustible materials on the fl oor, a safe distance of 80 cm is required. Combustion air circuit control. See p.4. Convection air circuits control. See p.4. The chimney outlet has a cowl. See p.15. Installation of frame (option) before building work. See p.19. 14 Scope...
-
Page 15: Flue
- Only connect one appliance per fl ue. FOR AN EXISTING FLUE: It is essential to check, in addition to airtightness, emptiness and overall sta- bility, the compatibility of the fi replace and if necessary, line the fl ue, or even modify the chimneystack. Scope 15... -
Page 16: Outside Air Supply
When installing these pipes, limit the length and changes in direction, bend at an angle at the widest change in direction and avoid the use of outlet grills with a low permeability coeffi cient, as the resulting losses in speed reduce the eff ectiveness of hot air outlets. 16 Scope... -
Page 17: Installation
- INSULATING MATERIALS: use «HIGH TEMPERATURE» materials like certain rock wools. In all cases, these materials must not be in contact with convection air (DO NOT USE GLASS WOOL). Scope 17... -
Page 18: Alcove
- In the case of new building work, it is PROHIBITED Ø125 to rest the building work on top of the Scope. 4.3.Electricity - Remove the fi lter support from your chosen side corresponding to the power supply (unscrew the 2 fi... -
Page 19: Options
5. Options: 5.1. Frames: Scope 19... - Page 20 Bodart & Gonay SA - Parc Artisanal de Harzé - Rue de Lambinon, 3 - B-4920 HARZE tel: 32 (0)4 239 93 93 - fax: 32 (0)4 239 93 98 info@bodartetgonay.be - www.bodartetgonay.be 20 Scope...
