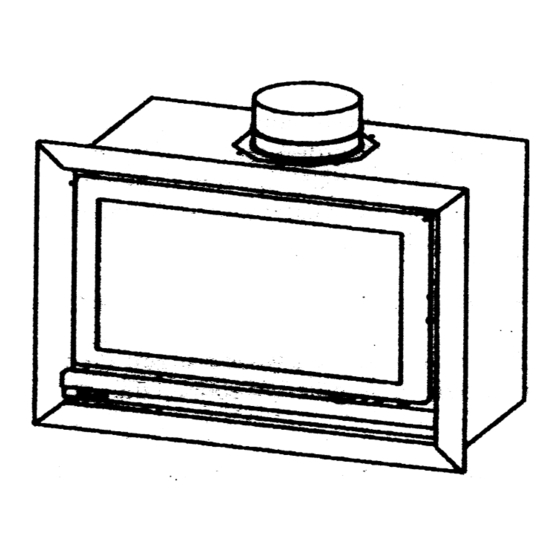

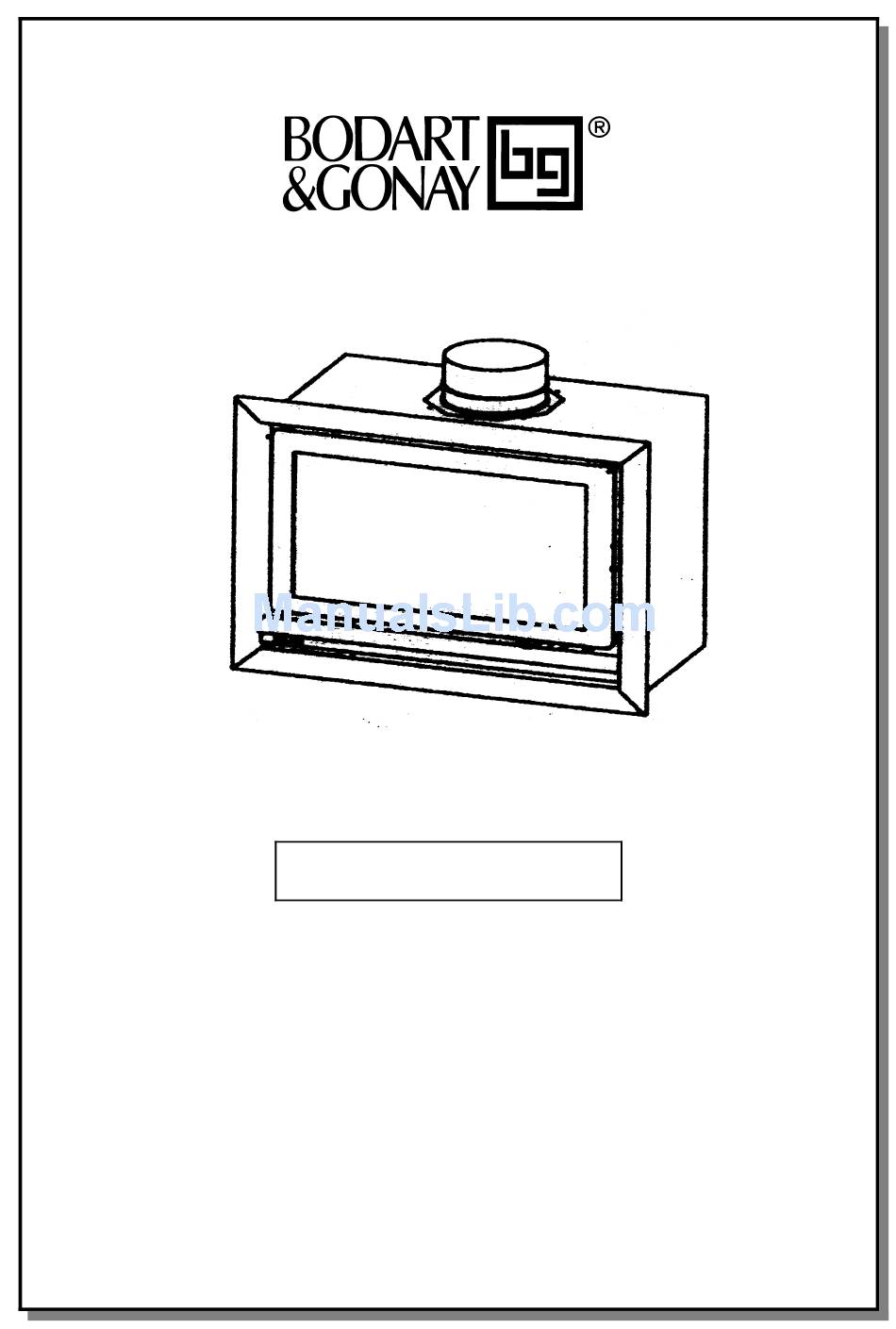

- Page 1 F:\Home\RD\ME\FUNNY\FUNNYGB.WP IN-FIRE Jubilee USER’S MANUAL, MAINTENANCE MANUAL INSTALLATION INSTRUCTIONS 03/99 07DHIFFUA - 1 -...
- Page 2 Dear Customer! Congratulations on the purchase of your new Bodart & Gonay appliance! Your choice shows the interest you have for high quality products. You are now a full member of the large international family of Bodart & Gonay customers, who have enjoyed for many years the elegance, efficiency and reliability of our equipment.
-
Page 3: Table Of Contents
- Phone : ........CONTENTS INSTRUCTIONS ON MAINTENANCE AND USE A. IMPORTANT RECOMMENDATIONS B. CHARACTERISTICS C. USE OF THE FIRE D. MAINTENANCE E. TROUBLE SHOOTING F. GUARANTEE INSTALLATION INSTRUCTIONS A. SAFETY B. RECESS C. CHIMNEY D. HOT AIR DUCT E. ELECTRICITY F. - Page 4 - 4 -...
-
Page 5: Instructions On Maintenance And Use
INSTRUCTIONS ON MAINTENANCE AND USE A. IMPORTANT RECOMMENDATIONS Carry out the installation in accordance with the safety regulations (see instructions, under the heading “Installation”). FUEL This appliance ONLY burns logs of wood. THE FIRST TIME YOU LIGHT IT If you have selected the fan option, set the fan on maximum speed to run it in (for about 12 hours). -
Page 6: Characteristics
B.CHARACTERISTICS TYPE: Jubilee 47B66B4P RATED HEATING POWER: 7 KW 6020 Kcal FUEL: WOOD DIAMETER OF SMOKE OUTLET: 180 MM NUMBER OF SMOKE OUTLETS / DIAMETER 2 X Ø 125 WOOD CONSUMPTION (ON TOP SETTING): 2.8 Kg/h VENTILATION 1 TANGENTIAL TURBINE... -
Page 7: Use Of The Fire
USE OF THE FIRE I) USE OF MOVING PARTS AND SAFETY DEVICES AIR REGULATOR (1) This adjusts the quantity of primary air for combustion according to the position (+ to the right and - to the left). It can be moved using the safety handle. CLOSING THE DOOR AND SAFETY HANDLE (2) To close the door, insert the safety handle in the top hole of the right hand door section, and then close it until you hear the catch click. - Page 8 The QUALITY of the wood is ESSENTIAL for an optimal operation of the appliance (efficiency, cleanliness of the window, ...). A quality wood is a dry wood having dried at least 2 years under a ventilated shelter. Jubilee MODEL Maximum load (only for moderate setting) 6 Kg Recommended load for 1 hour on maximum setting 2.8 Kg...
- Page 9 LIGHTING THE FIRE Î OPEN fully the air flow. Ï Place crumpled paper (or fire lighters) and KINDLING FIREWOOD in the appliance on the grate. Ð LIGHT the FIRE. Ñ Leave the door SLIGHTLY AJAR to avoid an accumulation of dirt on the window, its temperature is too low it could leads to condensation and a deposit of particles on the glass if the door is closed to early .
-
Page 10: Maintenance
Choose logs of very high cross section. Reduce the air flow according to the draught of your chimney. REMARK: The use at a reduced rate for a long time may, because of condensation, lead to an accumulation of creosote in the chimney and thus to a risk of setting the chimney on fire. - Page 11 CARRY OUT THE FOLLOWING OPERATIONS: AIR DISTRIBUTOR: If necessary, clear the air inlet holes. FAN: DISCONNECT from the electricity supply. Remove the frame and take out the fan box. Dismantle the protective grid (4 screws). Remove dust using a fine brush (not compressed air). Fit everything back in place.
-
Page 12: Troubleshooting
E. TROUBLESHOOTING PROBLEMS SOLUTIONS GLASS GETTING DIRTY TOO – Check whether the fuel is damp QUICKLY – Increase the fire setting – Check that the motor is working stops working – Check (and reconnect) the supply – Check the switch –... -
Page 13: Guarantee
F. GUARANTEE DURATION AND LIMITATION – 6-year guarantee on: the overall structure; – 1-year guarantee on: the internal removable parts and the fan; – no guarantee on: the glass, bricks and cast iron plates. RESERVATIONS Bodart & Gonay reserve the right to modify their equipments, catalogues, and manuals independently, at any time and without prior notice. - Page 14 Costs due to the non-use of the equipment. TAKING EFFECT The guarantee starts on the date written on the invoice. The invoice is the only document valid for the guarantee. - 14 -...
-
Page 15: Installation Instructions
INSTALLATION INSTRUCTIONS Your dealer is the SPECIALIST that BODART & GONAY have chosen to represent them in your area. For your SAFETY and SATISFACTION we recommend that you entrust him with carrying out your installation. The appliance must be installed in compliance with the rules of building regulations and any local regulations. -
Page 16: Recess
ANY COMBUSTION CONSUMES AIR. From the gap under the door to the direct outside air intake, every one must choose the solution best adapted to the installation to compensate the slight consumption of air. Never create a depression in the room where the appliance is installed. - Page 17 The chimney flue must be made according to the best rules of the trade, here are the most important ones: Minimum height 4 m The cross section must be neither too small (not less than the output cross section of the equipment) nor too large (risk of condensation and poor draught) The flue must be thermally insulated Avoid sloping parts, never exceed a slope of 45 °...
-
Page 18: Hot Air Duct
TIGHTNESS AND CLEANLINESS are important. Seal all the linking parts so that the bottom of the flue socket is placed 10 mm higher than the top of the appliance that will be introduced. On installation, if necessary install a draught regulator. The depression must be measured at the time of the first fire. -
Page 19: Electricity
E. ELECTRICITY Installation and connection of the fan box Remove the front frame by simply pulling it forwards. (Take out the 4 lateral clips). Then let the central screw slide out of its location. Dismantle the right hand side of the protective screen (2 screws). Remove the protective grid from the fan box. - Page 20 5° At the rear of the front cover, dismantle the Bodart & Gonay badge from the support and replace it with the pierced insulation. 7° 6° 6° Clip the switch into the insulator through the outside of the front. Connect the switch in accordance with the diagram below. Brown wire Black wire Replace the front cover.
-
Page 21: Installation Of The Fire
F. INSTALLING THE FIRE Dismantle removable parts: the door (open beyond 45 and lift) the baffle and chimney deflector the false brick set. Insert the fire in the recess and locate in correct position. Connect the hot air fittings if any, through the chimney outlet. Reminder: If the fire is installed without a fan, installation of the hot air fittings is recommended to improve the natural convection. - Page 22 With the door closed, check that there is no clearance between the door and the heating body, by pressing on the right hand side of the door. A slight clearance can be accepted at the lower right hand corner. Dust visible painted surfaces. Light the first fire to bake the paint (air the room and do not touch the fire).
-
Page 23: Spare Parts List
SPARE PARTS LIST Ref. Code No. DESCRIPTION 37B66008 Chimney deflector 37B66007 Baffle 37B66006 Distributor 37B66005 Air regulator 37B66013 False brick 240 x 120 x 30 37B66021 False brick 240 x 100 x 30 37B66019 False brick 150 x 93 x 30 37B66018 Air duct 07CB300... - Page 24 - 24 -...
