OPERATING INSTRUCTION MANUAL
S-55B

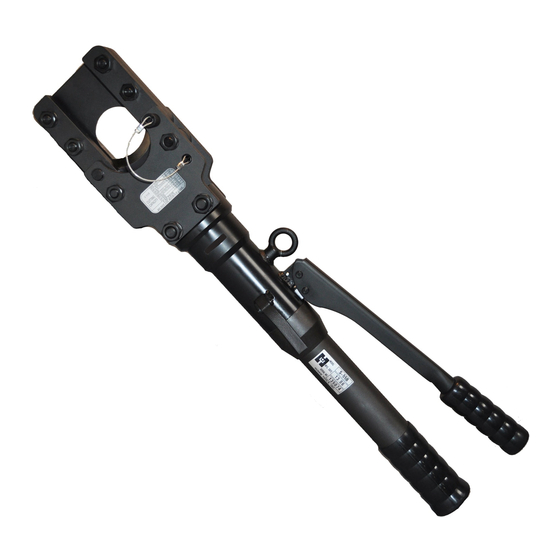

Manual Hydraulic Cutting Tool

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-55B and is the answer not in the manual?

Questions and answers

Related Manuals for Huskie Tools S-55B

Summary of Contents for Huskie Tools S-55B

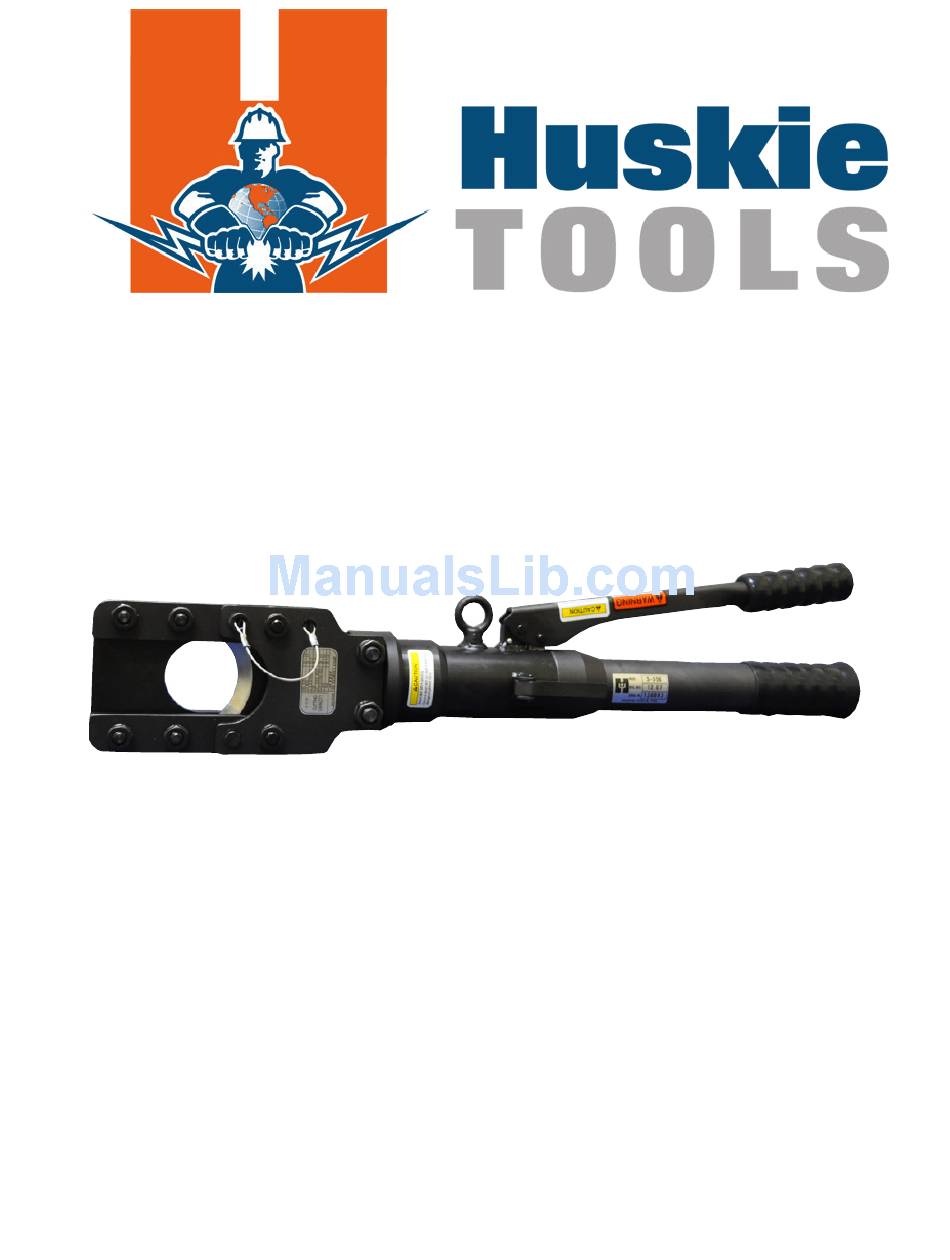

  • Page 1 OPERATING INSTRUCTION MANUAL S-55B Manual Hydraulic Cutting Tool...

  • Page 2: Connect With Us

    Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com...

  • Page 3: Specifications

    SPECIFICATIONS S-55B Output: 13Ton Weight: 17 lbs. Size: 24”L Jaw Opening: 2” CUTTING CAPACITIES Wire Rope 26mm, 1” Soft Steel Bolts 32mm, 1-1/4” Rebar, Ground & Anchor Rod 20mm, 2/4” Cu/Al Wire 50mm, 2” ACSR 50mm, 2” Standard Guy Wire 20mm, 3/4”...
  • Page 4 www.huskietools.com...

  • Page 5: General Information

    Refer to “troubleshooting” on page three to free the blade. 4. All Huskie tools require proper care. Occasional cleaning and degreasing in solvent, and sharpening blade and cutter head, will keep these tools operating without problems.
  • Page 6 GENERAL INSTRUCTIONS CONTINUED 10. Always return tools to their carrying bag to protect them from sand and dirt. Extra bags can be purchased. 11. Always carry a spare blade, preferably attached to the carrying bag. 12. Use clear hydraulic fluid MV-32 available from your dealer or HTI.

  • Page 7: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 1. Problem: Small wire strands or pieces of cable or debris get jammed between the cutter head and blade, not allowing the blade to retract. Solution: A) Hold release lever down while tapping on the ram with a block of wood and a ham- mer.
  • Page 8 S-SERIES OPERATING INSTRUCTIONS 1. Before cutting, make sure the material being cut is within the proper cutting capacity of the tool being used. 2. Open cutter head by lifting latch or removing lock pin, depending on the model being used. 3.

  • Page 9: S-Series Specifications

    S-SERIES SPECIFICATIONS Specifications Model SP-20 SP-24 SP-24CC SP-32 SP-32CC1 SP-35 SP-40 SP-55 SP-85 SP-100 Output 4.4 Ton 7.8 Ton 7.8 Ton 20 Ton 24 Ton 6.2 Ton 6.28 Ton 13 Ton 2.7 Ton 8.3 Ton Weight 3 lbs. 6 lbs. 21 lbs.
  • Page 10 BREAKDOWN www.huskietools.com...

  • Page 11: Parts List

    PARTS LIST PART NO. DESCRIPTION QTY. CODE NO. PART NO. DESCRIPTION QTY. CODE NO. M10 Hex Nut 40-31 P-3 O-Ring 16-36 M10 Lock Washer 40-32 Release Valve Stem 55A-20 Stud Bolt (7) 55-01 Release Lever 55A-19 Head Shear Plate 55-02 Release Lever Spring (77) 16-37 Spacer...

  • Page 12: Warranty

    WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty.
  • Page 13 WARRANTY HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not Prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
  • Page 14 198 N. Brandon Drive Glendale Heights, Illinois 60139 Toll Free 1-800-860-6170 Fax (800) 345-3767 huskietools.com 9/12 info@huskietools.com...
