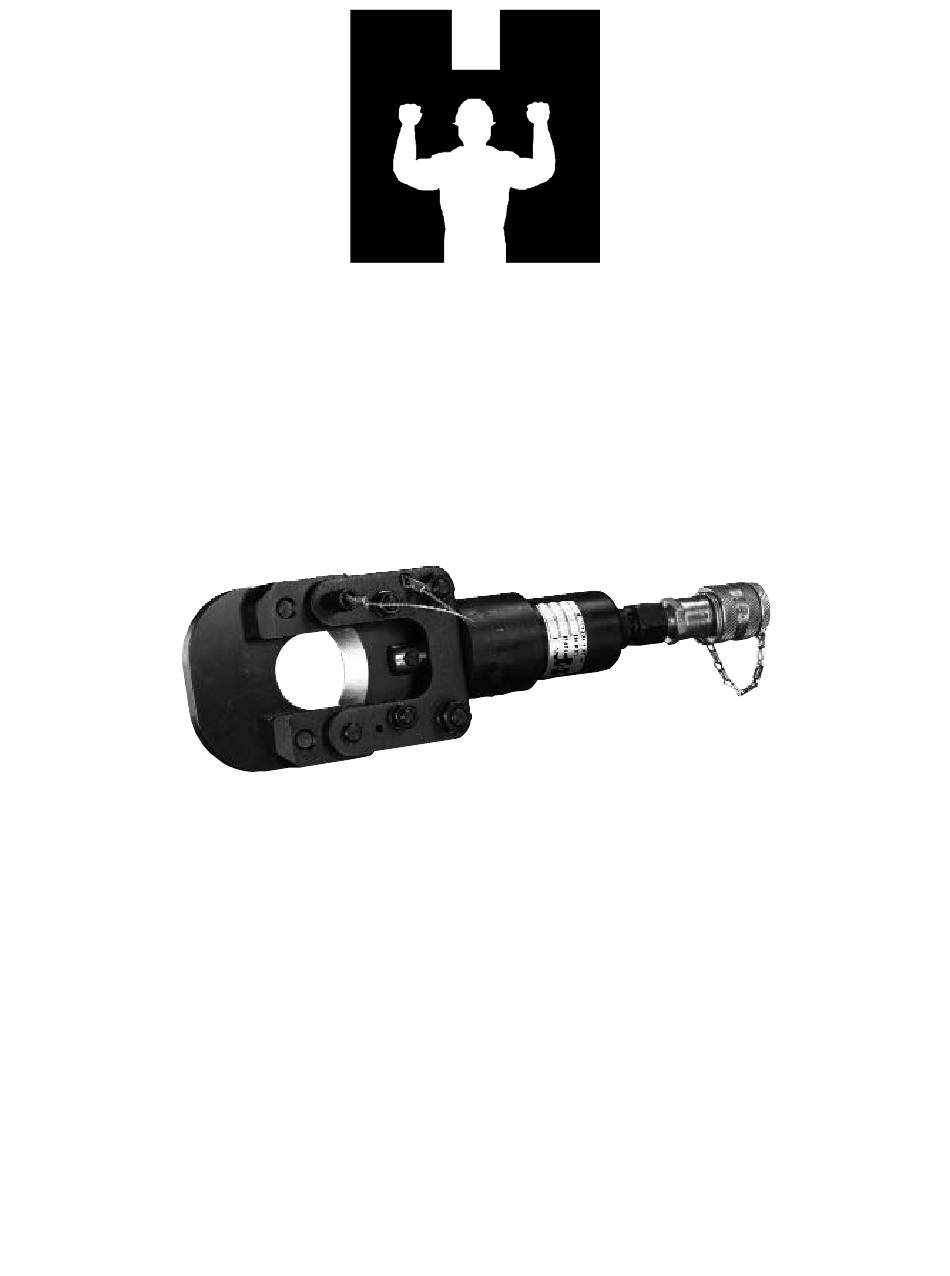

HUSKIE TOOLS, INC. Operating Instruction Manual For SP-40 Hydraulic Cutters With Parts List...
Page 3
Refer to “troubleshooting” on page three to free the blade. All Huskie tools require proper care. Occasional cleaning and degreasing in solvent, and sharpening blade and cutter head, will keep these tools operating without problems.
Page 4
G EN ER A L I N F OR M AT I O N G U I D E F O R C U TT ER S If the cutters are used under water, wash them down and lubricate after each use. This whole operation takes less than five minutes.
Page 5
T R O U B LE S HO O TI N G G U I D E Problem: Small wire strands or pieces of cable or debris get jammed between the cutter head and blade, not allowing the blade to retract. Solution: A) Hold release lever down while tapping on the ram with a block of wood and a hammer.
Page 6
O P ER AT I N G I N S T R U C TI O N S F O R A LL “ S P ” S ER I E S HY D R A U LI C C U T TE R S Before cutting, make sure the material being cut is within the proper cutting capacity of the tool being used.
Page 7
S P SE R I E S SP EC IF I C AT IO N S SP-20 SP-24 SP-32 SP-40 SP-55 SP-85 SP-100 output 4.4 ton output 7.8 ton output 20 ton output 6.28 ton output 13.12 ton output 2.7 ton output 8.3 ton...
Page 8
M O D E L SP - 4 0 PA RT S D I A G R A M http://www.huskietools.com info@huskietools.com...
Page 9
M OD E L SP - 4 0 PA RT S LI S T DESCRIPTION CODE QTY. NO. DESCRIPTION CODE QTY. Guide Piece (A) 40-02 Guide Piece (B) 40-04 3 X 12 Drive Pin (AW) 40-05 Head Shear (H.A.) 40-07H M12 Lock Washer 40-09 M12 X 30 Screw...
Page 10
Failure due to misuse, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life of the tool.
Page 11
MODEL SP-40 WARRANTY OW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
Page 12
198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 Fax (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com...
