Summary of Contents for Huskie Tools SP-85

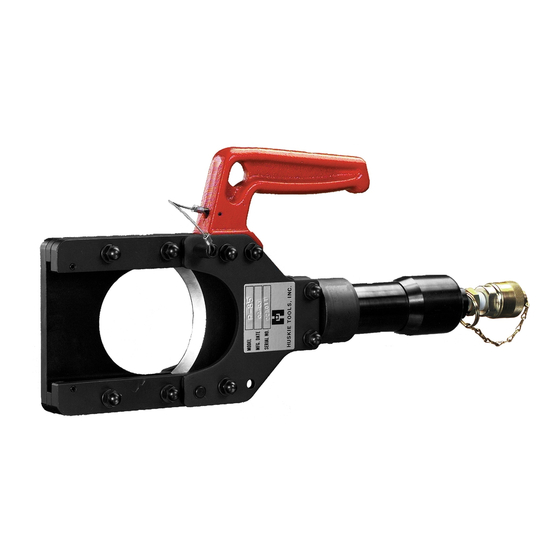

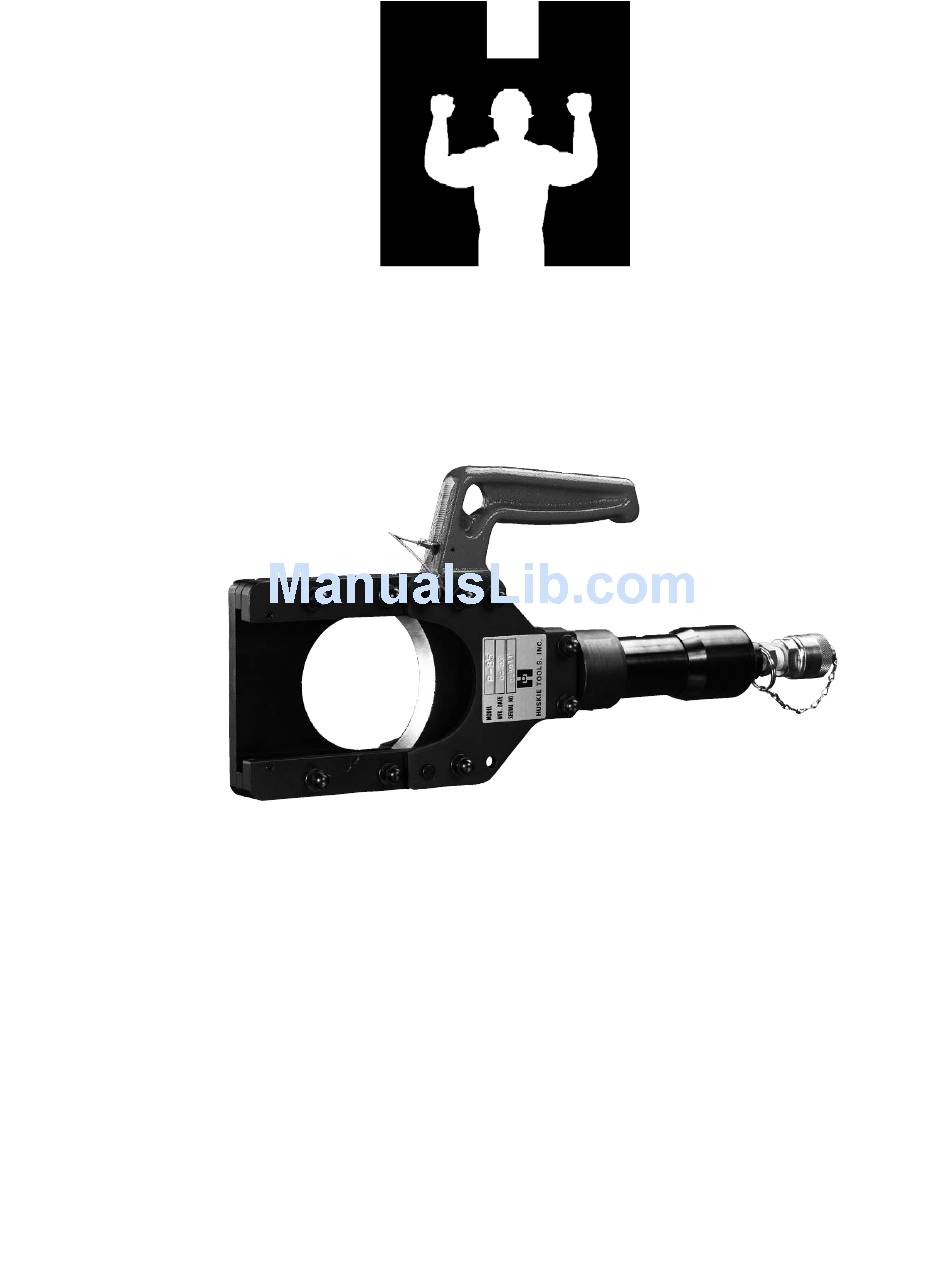

- Page 1 HUSKIE TOOLS, INC. Operating Instruction Manual For SP-85 Hydraulic Cutters With Parts List...
- Page 3 Refer to “troubleshooting” on page three to free the blade. All Huskie tools require proper care. Occasional cleaning and degreasing in solvent, and sharpening blade and cutter head, will keep these tools operating without problems.
- Page 4 G EN ER A L I N F OR MAT I ON G U ID E F O R S P - 8 5 C U TT ER 9. If the cutters are used under water, wash them down and lubricate after each use. This whole operation takes less than five minutes.
- Page 5 T R O U B LE S HO O TI N G G U I D E Problem: Small wire strands or pieces of cable or debris get jammed between the cutter head and blade, not allowing the blade to retract. Solution: A) Hold release lever down while tapping on the ram with a block of wood and a hammer.
- Page 6 SP-series cutter will result in severe blade damage and may cause personal injury. Models SP-85 and SP-100 are designed for use on non-ferrous metals only! Do not cut steel or severe tool damage and personal injury may occur.
- Page 7 S P SE R I E S S P EC I F I C AT IO N S SP-20 SP-24 SP-32 SP-40 SP-55 SP-85 SP-100 output 4.4 ton output 7.8 ton output 20 ton output 6.28 ton output 13.12 ton output 2.7 ton...
- Page 8 M OD E L SP - 8 5 PA RTS D I A G R A M http://www.huskietools.com info@huskietools.com...
- Page 9 M OD E L SP - 8 5 PA RTS L IS T NO. DESCRIPTION CODE QTY. NO. DESCRIPTION CODE QTY. M8 Cap Nut 85-01 M8 Lock Washer 40-25 Head Shear Plate 85-02 Spacer 85-03 Stud Bolt (3) 85-04 Head Shear 85-05 Pin (44) 85-06...
- Page 10 Failure due to misuse, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life of the tool.
- Page 11 MODEL SP-85 WARRANTY OW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 12 198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 Fax (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com...
