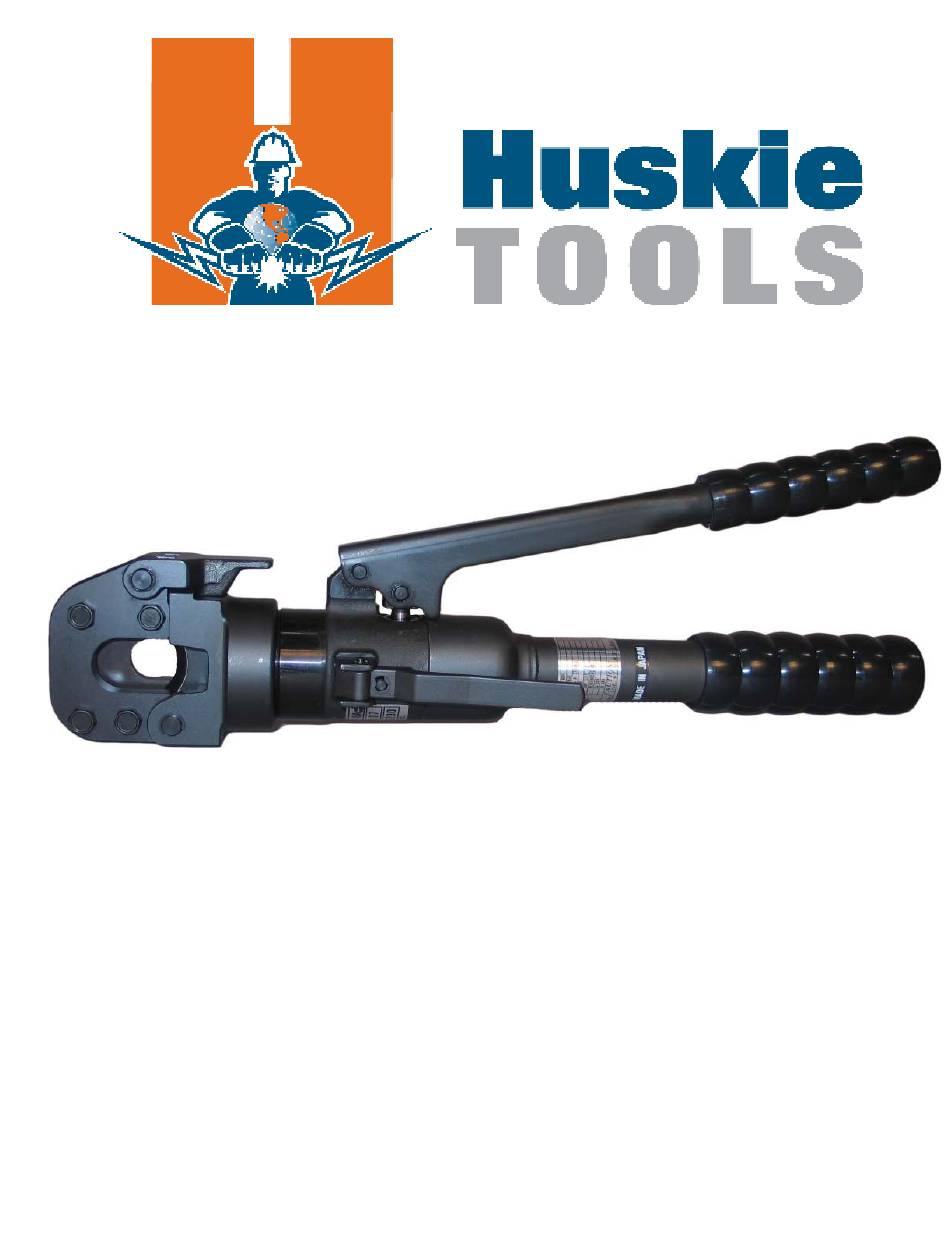

- Page 1 OPERATING INSTRUCTION MANUAL S-16 HANDHELD HYDRAULIC CUTTING TOOL .6” JAW OPENING...
- Page 2 Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com...
-
Page 3: Specifications

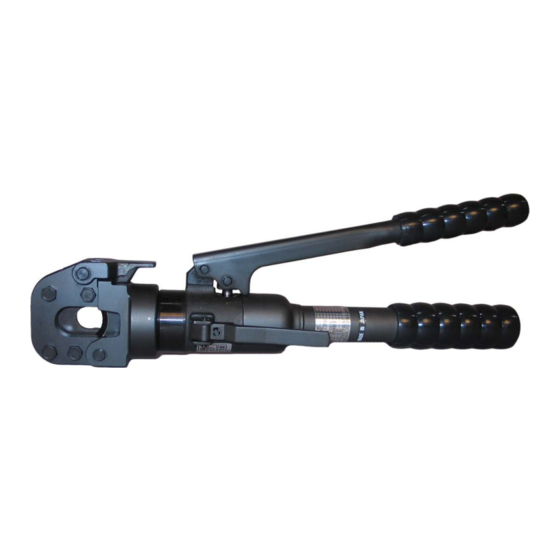

SPECIFICATIONS S-16 Output: 4.4 Ton Weight: 6 Ibs. Size: 15” L Jaw Opening: .6” CUTTING CAPACITIES Wire Ropes 16mm 5/8” Soft Steel Bolts 16mm 5/8” Rebar, Ground, & 13mm Anchor Rod 1/2” Cu & Al Wire 16mm 5/8” ACSR 16mm 5/8”... -
Page 4: Important Operating Precautions
Refer to the “Troubleshooting Guide” on page 4. All Huskie tools require proper care. Occasional cleaning and degreasing in solvent, and sharpen ing blade and cutter head, will keep these tools operating without problems. - Page 5 IMPORTANT OPERATING PRECAUTIONS 8. All tools can be reconditioned and overhauled. Call factory and obtain an RGA # for returning tools. 9. If the cutters are used under water, wash them down and lubricate after each use. This whole operation takes less than five minutes. It may be helpful to paint new tools with a light color, corro sion resistant paint.
- Page 6 OPERATING INSTRUCTIONS 1. Before cutting, make sure the material being cut is within the proper cutting capacity of the tool be ing used. 2. Open cutter head by lifting latch or removing lock pin, depending on the model being used. 3.
-
Page 7: S Series Specifications
S SERIES SPECIFICATIONS www.huskietools.com... - Page 8 www.huskietools.com...
- Page 9 DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. 1 M6 Hex. Nut 16-01 49 P-26 O-Ring 16-55 2 M6 Lock Washer 16-02 50 Oil Reservoir (4) 20A-03 3 Stud Bolt (1) 16-03 51 Reservoir Cap 410-55 4 Main Head 20-04 52 S-36 O-Ring 85-51 5 Spacer 20-70 53 Body Handle 16-63 6 Head Shear...
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. Problem: Small wire strands or pieces of cable or debris get jammed between the cutter head and blade, not allowing the blade to retract. Solution: A) Hold release lever down while tapping on the ram with a block of wood and a ham mer. -
Page 11: Warranty
WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty. The BP-70E, BP-70EI, BP-70MH, and BP-80 batteries carry a 5 year or 1,000 recharge cycles... - Page 12 WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty. The BP-70E, BP-70EI, BP-70MH, and BP-80 batteries carry a 5 year or 1,000 recharge cycles...
