OPERATION MANUAL
OPERATION MANUAL

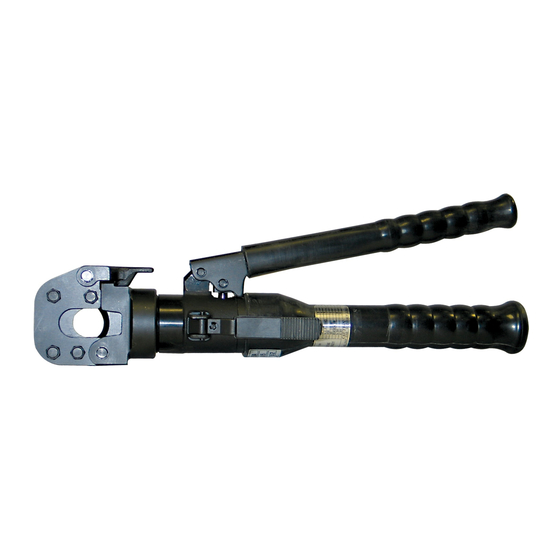

S-20: S-Series Handheld Hydraulic Cutter
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
S-20
195 Internationale Blvd
Glendale Heights, IL 60139
www.spartacogroup.com
Phone 800-860-6170
Fax 800-345-3767
