URC Total Control DMS-100 Owner's Manual

URC Total Control DMS-100 Owner's Manual

Single zone amplifier
Hide thumbs Also See for Total Control DMS-100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Owner's Manual
DMS-100
Single Zone Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Total Control DMS-100 and is the answer not in the manual?

Questions and answers

Related Manuals for URC Total Control DMS-100

Summary of Contents for URC Total Control DMS-100

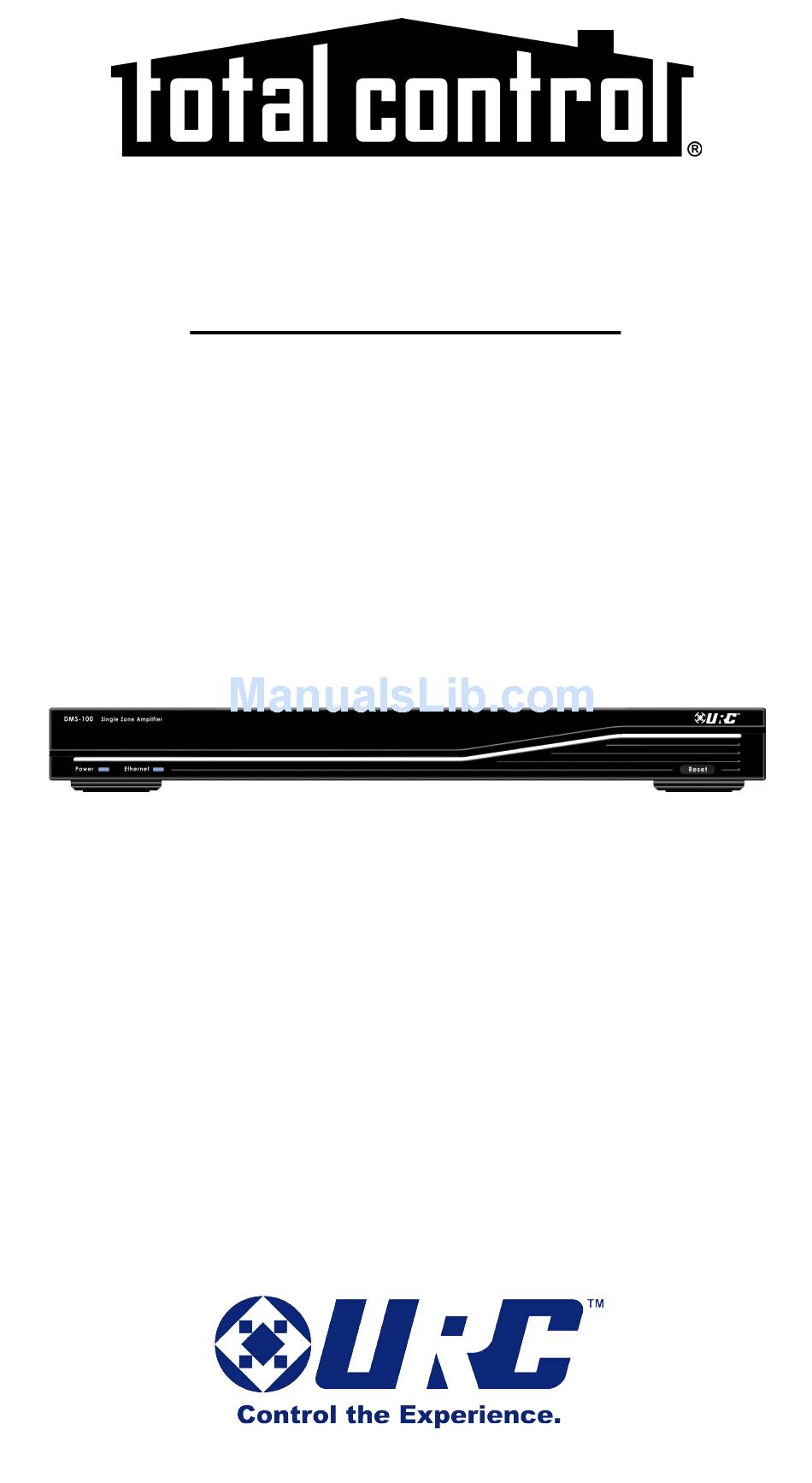

  • Page 1 Owner’s Manual DMS-100 Single Zone Amplifier...
  • Page 2 THIS MANUAL. The information in this Owner’s Manual may be subject to change without prior notice. Total Control is a registered trademark of Universal Remote Control, Inc. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.

  • Page 3: Table Of Contents

    ABLE ONTENTS Congratulations! Features and Benefits Parts Guide Front Panel Description System Features Rear Panel Description System Features Important Safety Instructions Federal Communication Commission Interference Statement Limited Warranty Statement End User Agreement Specifications System Configuration for Internal LAN Networks Europe Certification of Conformity Page 1...

  • Page 4: Congratulations

    Congratulations! You’ve purchased the finest music distribution system available today. The DMS-100 is a native to the network, CD quality digital music distribution system with an available range of keypads and remote controls that not only fully control your music but control all of your other audio video components.

  • Page 5: Features And Benefits

    INGLE MPLIFIER Features and Benefits • One audio input streams to other Total Control amplifiers. • Preamp output for connection to local amplifier. • Scalable solution; install as an additional zone with a DMS-1200 system, or install multiple DMS-100s to create customized multi-zone system.

  • Page 6: Front Panel Description

    LEDs indicate that the DMS-100 is connected to power and to the local area network. Automatic Power Off The DMS-100 is powered off and is in an automatic stand by state when no zones are active. Reset Button The front panel reset button offers the end user a quick way to reconnect the DMS-100 to the local area network.

  • Page 7: System Features

    Reliability The DMS-100 is engineered first and foremost for reliability. It offers extensive internal protection against failure and is manufac- tured in our ISO 9000 certified factory with the utmost attention to quality control at every stage of manufacturing, from parts procure- ment to final assembly.

  • Page 8: Rear Panel Description

    100V-220V Power Connection The IEC power socket enables either UL/CSA approved 110V power cords or CE approved 220V power cables to be used with the DMS-100. The internal power supply automatically switches from 100V to 240V. Network Connection A 10/100 LAN connection ensures that the DMS-100 will receive all network streams from other DMS or SNP sources.

  • Page 9: System Features

    INGLE MPLIFIER System Features Analog Audio Input Connect a music source to the DMS-100 to listen locally to an AV receiver. Preamp Zone The preamp zone enables use of external power amplifiers for a room with a need for more or less power than 50 watts per channel.

  • Page 10: Important Safety Instructions

    MPORTANT AFETY INSTRUCTIONS Important Safety Instructions This unit shall be connected to a mains socket outlet with a protective grounded connection or equivalent. CAUTION: To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.
  • Page 11 MPORTANT AFETY INSTRUCTIONS Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. In the event of malfunction, un plug lmmediately. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 12: Federal Communication Commission

    DMS-100 S INGLE MPLIFIER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a res- idential installation.

  • Page 13: Limited Warranty Statement

    ARRANTY Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for two (2) years from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America.
  • Page 14 ARRANTY SKILL AND CARE, OR OUTCOME OR RESULTS. WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OF NATURE, (II) MODIFICATIONS, (III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY CLAIM PROCEDURE.

  • Page 15: End User Agreement

    ARRANTY With the exception of URC’s IR-only, broad-based consumer remotes, none of URC’s PC programmable remotes or any of our Total Control® whole-house equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty.

  • Page 16: Specifications

    PECIFICATIONS Specifications Network One 10/100 Ethernet port (Indicator Two LED) IR One Way & IP Two Way Control: Indicators: One Power Blue LED - Blink when resetting/One Network Blue LED indicator Zones of Stereo Audio: One (preamp and speaker output are linked) Rated Wattage per Channel: 50 watts per channel at 8 ohms, stable to 4 ohms...

  • Page 17: System Configuration For Internal Lan Network

    4. Connect a third RJ-45 cable to connect the DMS-100 LAN port to one of the eight 10/100 Smart ports. 5. Plug the power supply to the DMS-100 and then plug it in to an unswitched AC outlet. 6. Connect a PC computer to the same LAN as the DMS-100 or plug an ethernet cable directly to the LAN port of the DMS-100.

  • Page 18: Europe Certificate Of Conformity

    UROPE ERTIFICATE ONFORMITY Europe Certificate Of Conformity Universal Remote Control, Inc. declares that this product complies with the requirements CE/LVD (Low Voltage Directive, 2006/95/EC). Certificated Attestation of compliance “E8N 10 10 75224 001” is issued according to the Directive 2004/108/EC relating to electromagnetic compatibility on a voluntary basis and is in compliance with the corre- sponding technical standards such as EN55013, EN55020, EN55022, EN55024/A2, EN61000-3-2, EN61000-3-3 and EN60065 A/V.
  • Page 19 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0099C Rev 03...
