Summary of Contents for URC HDA-4100
- Page 1 HDA-4100 Total Control Owner’s Manual HDA-4100 Owner’s Manual...
-
Page 2: Table Of Contents
End User Agreement ....................17 Specifications ......................10 Congratulations! Technical Suppor t The HDA-4100 Multi-Zone Amplifier is one of URC’s powerful yet flexible amplifier! This document highlights product features, LED status conditions, basic installation, and Toll Free: 800-904-0800 general speaker wiring instructions. -
Page 3: Overview
URC’s HDA-4100 Multi-Zone amplifier delivers incredible performance, reliability, and powerful amplification making it the perfect audio distribution system for any home or business. The HDA-4100 can provide audio in up to four (4) stereo zones, eight (8) mono zones, or any combination of both. -
Page 4: Parts & Pieces
HDA-4100 Total Control Owner’s Manual Parts & Pieces Included with the HDA-4100 is the following:... -
Page 5: Front Panel Descriptions

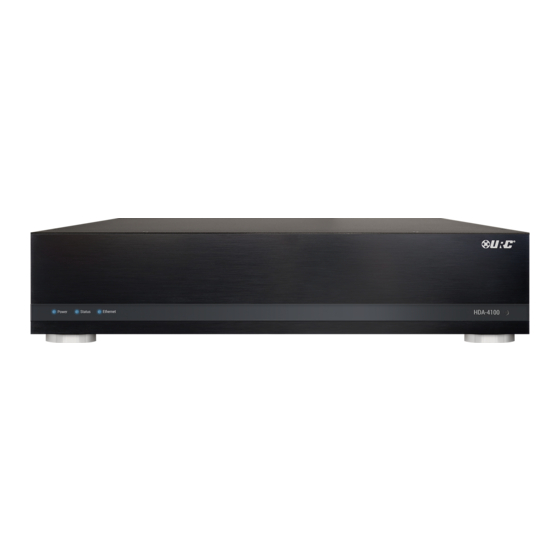

HDA-4100 Total Control Owner’s Manual Front Panel Descriptions There are three (3) LEDs on the front panel of the HDA-4100: 1. Power LED: Indicates one (1) of the following: 2. Status LED: Indicates one (1) of the following: • Solid Blue: Power has been applied to the device and it has •... - Page 6 HDA-4100 Total Control Owner’s Manual 3. Ethernet LED: Indicates one (1) of the following: 4. Reset Button: There are two (2) ways to press this button: • Solid Blue: The device has received an IP address from the local network.
-
Page 7: Rear Panel Description
(phoenix connector). NOT available, device must be hard-lined to the network. 2. Audio Inputs: The HDA-4100 Multi-Zone Amplifier contains four (4) RCA 5. AC Main Power: Connect the supplied power cable to provide the HDA-4100 (single ended) stereo inputs. with power. -
Page 8: Installation Instructions
2. Attach the rack ears to the left and right sides of the amplifier using the supplied screws. Align the rack ears to the sides of the HDA-4100 aligning the three (3) screw inserts with the slots on the left and right sides of the devices. -
Page 9: Connecting Speakers
Total Control Owner’s Manual Connecting Speakers The HDA-4100 Multi-Zone Amplifier can power up to four (4) stereo zones, eight (8) mono zones or any combination of stereo/mono. To connect speaker wire: 1. Connect the speaker wire to the positive (red) and negative (black) to the wire terminals available on the speaker (be mindful of proper polarity). -
Page 10: Network Setup
HDA-4100 Total Control Owner’s Manual Network Setup When using more than one (1) HDA devices, URC’s HDA-SW5 Network Switch is REQUIRED on the local network. For more information of the HDA-SW5 Network Switch, please refer to the HDA-SW5 Owner’s Manual. -
Page 11: Hda Modules
Total Control Owner’s Manual HDA Modules URC’s HDA line of products contains several two-way modules that are accessible from any graphical user interface. These modules serve a variety of residential and commercial applications providing end-users with advanced functionality directly from any URC interface. -
Page 12: Specifications
HDA-4100 Total Control Owner’s Manual Specifications Height x Width x Depth: General: Audio Inputs: • 3.5” (without feet) x 17.25” x 12| • Four (4) RCA analog (unbalanced) inputs with audio sensing Weight: capabilities Zone Speaker Outputs: • 11 lbs 14 oz •... - Page 13 HDA-4100 Total Control Owner’s Manual Audio: Thermal: • Frequency Response: ±0.4 dB, 10Hz - 20kHz, all loads 4Ω - 8Ω • Operating Temperature: 32°F to 86°F • Signal to Noise Ratio: >100 dB • Humidity: Maximum 85% • High & low pass filters per zone •...
-
Page 14: Safety Precautions
HDA-4100 Total Control Owner’s Manual CA U T I O N Risk of electric shock do not open To reduce the risk of CA U T I O N electrical shock, do not remove cover (or back). No user-serviceable parts inside. -
Page 15: Important Safety Instructions
HDA-4100 Total Control Owner’s Manual Important Safety Instructions • Read Instructions: All the safety and operating instructions should be read • Protect the power cord from being walked on or pinched particularly at plugs, before the apparatus is operated. convenience receptacles, and the point where they exit from the apparatus. -
Page 16: Federal Communications Commission
HDA-4100 Total Control Owner’s Manual Federal Communications Commission FCC Caution Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device... -
Page 17: Limited Warranty Statement
WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, THIS LIMITED WARRANTY DOES NOT COVER: (I) URC warrants that at the time of purchase the URC equipment and the URC DAMAGE FROM MISUSE, NEGLECT OR ACTS OF NATURE, (II) - Page 18 URC equipment sold by unauthorized resellers. In the event of any warranty claim, URC will, at its sole option, repair the With the exception of URC’s IR-only, broad-based consumer remotes, none of URC equipment using new or comparable rebuilt parts, or exchange the URC URC’s PC programmable remotes or any of our Total Control®...
-
Page 19: End User Agreement
PERMITTED BY APPLICABLE LAW. End User Agreement The terms and conditions of the End User Agreement are available at: URC SHALL NOT BE HELD RESPONSIBLE FOR THE STATEMENTS MADE BY OTHERS. https://www.urc-automation.com/legal/end-user-agreement/ SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR...
