- Page 1 HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual HDA-8100 Owner’s Manual...
-
Page 2: Table Of Contents
Main: 914-835-4484 techsupport@urc-automation.com For questions on how this device operates contact your certified URC Integrator or URC’s Technical Support Team! H o u r s : 9 : 0 0 a m - 6 p m E S T M - F... -
Page 3: Overview

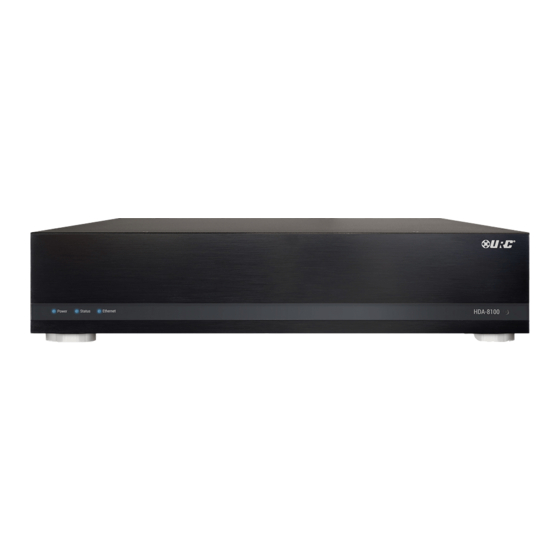

URC’s HDA-8100 Multi-Zone amplifier delivers incredible performance, reliability, and powerful amplification making it the perfect audio distribution system for any home or business. The HDA-8100 can provide audio in up to eight (8) stereo zones, 16 mono zones, or any combination of both. -
Page 4: Parts & Pieces
HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual Parts & Pieces Included with the HDA-8100 is the following:... -
Page 5: Front Panel Descriptions
Total Control Owner’s Manual Owner’s Manual Front Panel Descriptions There are three (3) LEDs on the front panel of the HDA-8100: 1. Power LED: Indicates one (1) of the following: 2. Status LED: Indicates one (1) of the following: •... - Page 6 HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual 3. Ethernet LED: Indicates one (1) of the following: 4. Reset Button: There are two (2) ways to press this button: • Solid Blue: The device has received an IP address from the local network.
-
Page 7: Rear Panel Description
(phoenix connector). • Inputs 1-6: RCA (single ended) stereo inputs 5. AC Main Power: Connect the supplied power cable to provide the HDA-8100 • Inputs 7 & 8: Either RCA stereo input or Digital Coax input can be used. -
Page 8: Installation Instructions
2. Attach the rack ears to the left and right sides of the amplifier using the supplied screws. Align the rack ears to the sides of the HDA-8100 aligning the three (3) screw inserts with the slots on the left and right sides of the devices. -
Page 9: Connecting Speakers
Owner’s Manual Owner’s Manual Connecting Speakers The HDA-8100 Multi-Zone Amplifier can power up to eight (8) stereo zones, 16 mono zones or any combination of stereo/mono. To connect speaker wire: 1. Connect the speaker wire to the positive (red) and negative (black) to the wire terminals available on the speaker (be mindful of proper polarity). -
Page 10: Network Setup
Total Control Owner’s Manual Owner’s Manual Network Setup When using more than one (1) HDA devices, URC’s HDA-SW5 Network Switch is REQUIRED on the local network. For more information of the HDA-SW5 Network Switch, please refer to the HDA-SW5 Owner’s Manual. -
Page 11: Hda Modules
Owner’s Manual Owner’s Manual HDA Modules URC’s HDA line of products contains several two-way modules that are accessible from any graphical user interface. These modules serve a variety of residential and commercial applications providing end-users with advanced functionality directly from any URC interface. -
Page 12: Specifications
HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual Specifications General: Height x Width x Depth: Audio Inputs: • 3.5” (without feet) x 17.25” x 12| • Eight (8) RCA analog inputs with audio sensing capabilities Weight: • Two (2) Coax Digital Inputs on inputs 7 & 8 (optional) •... - Page 13 HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual Audio: Thermal: • Frequency Response: ±0.4 dB, 10Hz - 20kHz, all loads 4Ω - 8Ω • Operating Temperature: 32°F to 86°F • Signal to Noise Ratio: >100 dB •...
-
Page 14: Safety Precautions
HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual CA U T I O N Risk of electric shock do not open To reduce the risk of CA U T I O N electrical shock, do not remove cover (or back). No user-serviceable parts inside. -
Page 15: Important Safety Instructions
HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual Important Safety Instructions • Read Instructions: All the safety and operating instructions should be read • Protect the power cord from being walked on or pinched particularly at plugs, before the apparatus is operated. -
Page 16: Federal Communications Commission
HDA-8100 HDA-8100 Total Control 2.0 Total Control Owner’s Manual Owner’s Manual Federal Communications Commission FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following Interference Statement two conditions: (1) this device may not cause harmful interference, and (2) this device... -
Page 17: Limited Warranty Statement
WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, THIS LIMITED WARRANTY DOES NOT COVER: (I) URC warrants that at the time of purchase the URC equipment and the URC DAMAGE FROM MISUSE, NEGLECT OR ACTS OF NATURE, (II) - Page 18 URC equipment sold by unauthorized resellers. In the event of any warranty claim, URC will, at its sole option, repair the With the exception of URC’s IR-only, broad-based consumer remotes, none of URC equipment using new or comparable rebuilt parts, or exchange the URC URC’s PC programmable remotes or any of our Total Control®...
-
Page 19: Dolby Audio
PERMITTED BY APPLICABLE LAW. End User Agreement The terms and conditions of the End User Agreement are available at: URC SHALL NOT BE HELD RESPONSIBLE FOR THE STATEMENTS MADE BY OTHERS. https://www.urc-automation.com/legal/end-user-agreement/ SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR...
