- Page 1 HDA-130 Total Control Owner’s Manual HDA-130 Owner’s Manual...
-
Page 2: Table Of Contents
Main: 914-835-4484 techsupport@urc-automation.com For questions on how this device operates contact your certified URC Integrator or URC’s Technical Support Team! H o u r s : 9 : 0 0 a m - 6 p m E S T M - F... -
Page 3: Overview
Using URC’s HDA amplifiers in conjunction with URC architectural in-ceiling speakers delivers an incredible high-fidelity audio experience throughout the home or business. HDA products are NOT compatible with URC’s legacy Total Control amplifiers (DMS). Features & Benefits • Integrated Audio Sensor: Each available input on the HDA-130 has built-in •... -
Page 4: Parts & Pieces
HDA-130 Total Control Owner’s Manual Parts & Pieces Included with the HDA-130 is the following:... -

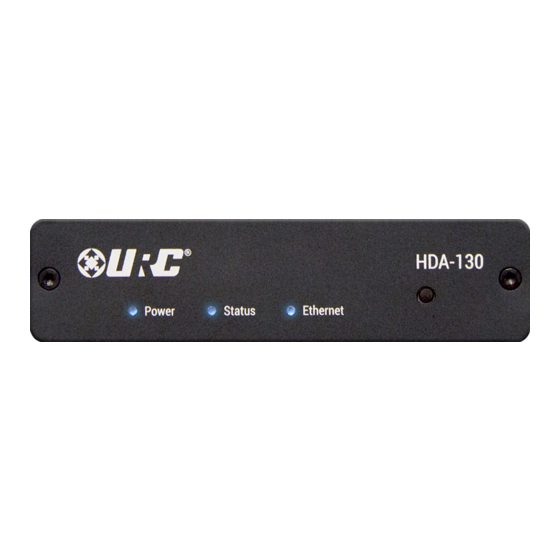

Page 5: Front Panel Descriptions
HDA-130 Total Control Owner’s Manual Front Panel Descriptions There are three (3) LEDs on the front panel of the HDA-130: 1. Power LED: Indicates one (1) of the following: 2. Status LED: Indicates one (1) of the following: • Solid Blue: Power has been applied to the device and it has •... - Page 6 HDA-130 Total Control Owner’s Manual 3. Ethernet LED: Indicates one (1) of the following: 4. Reset Button: There are two (2) ways to press this button: • Solid Blue: The device has received an IP address from the local network. •...
-
Page 7: Rear Panel Description
HDA-130 Total Control Owner’s Manual Rear Panel Description Below are the available connections on the rear of the HDA-130: 1. DC IN: Connect the supplied 48V DC adapter to this port to power the 4. Sub Out: Standard RCA connector, signal is left + right full range. HDA-130 amplifier. -
Page 8: Installation Instructions
HDA-130 Total Control Owner’s Manual Installation Instructions The HDA-130 amplifier is supplied with two (2) “L” shaped brackets for mounting on the wall or secure vertical surface. 1. Insert the supplied screws into the two (2) keyed slots on the L shaped bracket (as displayed on the image at the right). - Page 9 HDA-130 Total Control Owner’s Manual 3. Assure that all screws have been installed securely.
-
Page 10: Connecting Speakers
HDA-130 Total Control Owner’s Manual Connecting Speakers The HDA-130 can be placed nearly anywhere and deliver power to a local zone. To connect speaker wire: 1. Connect the speaker wire to the positive (red) and negative (black) to the wire terminals available on the speaker (be mindful of proper polarity). -
Page 11: Network Setup
HDA-130 Total Control Owner’s Manual Network Setup When using more than one (1) HDA device, URC’s HDA-SW5 Network Switch is REQUIRED on the local network. For more information of the HDA-SW5 Network Switch, please refer to the HDA-SW5 Owner’s Manual. -
Page 12: Hda Modules
Total Control Owner’s Manual HDA Modules URC’s HDA line of products contains several two-way modules that are accessible from any graphical user interface. These modules serve a variety of residential and commercial applications providing end-users with advanced functionality directly from any URC interface. -
Page 13: Specifications
HDA-130 Total Control Owner’s Manual Specifications General: Height x Width x Depth: Audio Inputs: • 1” x 4.5” x 5” • 1 x 3.5 mm analog (unbalanced) input (adapter required for Weight: Coaxial Digital input) • 12 oz • 1 x PCM TOSLink Digital input Zone Speaker Outputs: •... - Page 14 HDA-130 Total Control Owner’s Manual Audio: Thermal: • Frequency Response: ±0.4 dB, 10Hz - 20kHz, all loads 4Ω - 8Ω • Operating Temperature: 32°F to 86°F • Signal to Noise Ratio: >100 dB • Humidity: Maximum 95% • High & low pass filters per zone •...
-
Page 15: Safety Precautions
HDA-130 Total Control Owner’s Manual CA U T I O N Risk of electric shock do not open To reduce the risk of CA U T I O N electrical shock, do not remove cover (or back). No user-serviceable parts inside. Refer service to a qualified To prevent electrical shock, service professional... -
Page 16: Important Safety Instructions
HDA-130 Total Control Owner’s Manual Important Safety Instructions • Read Instructions: All the safety and operating instructions should be read • Protect the power cord from being walked on or pinched particularly at plugs, before the apparatus is operated. convenience receptacles, and the point where they exit from the apparatus. •... -
Page 17: Federal Communications Commission
HDA-130 Total Control Owner’s Manual Federal Communications Commission FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following Interference Statement two conditions: (1) this device may not cause harmful interference, and (2) this device This equipment has been tested and found to comply with the limits for a Class B digital must accept any interference received, including interference that may cause undesired device, pursuant to part 15 of the FCC Rules. -
Page 18: Limited Warranty Statement
WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, THIS LIMITED WARRANTY DOES NOT COVER: (I) URC warrants that at the time of purchase the URC equipment and the URC DAMAGE FROM MISUSE, NEGLECT OR ACTS OF NATURE, (II) - Page 19 URC equipment sold by unauthorized resellers. In the event of any warranty claim, URC will, at its sole option, repair the With the exception of URC’s IR-only, broad-based consumer remotes, none of URC equipment using new or comparable rebuilt parts, or exchange the URC URC’s PC programmable remotes or any of our Total Control®...
-
Page 20: End User Agreement
PERMITTED BY APPLICABLE LAW. End User Agreement: The terms and conditions of the End User Agreement are available at: URC SHALL NOT BE HELD RESPONSIBLE FOR THE STATEMENTS MADE BY OTHERS. https://www.urc-automation.com/legal/end-user-agreement/ SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR...
