CPU Module Positions in the Workstation

Caution – If the workstation has only one CPU, that CPU must be installed in CPU
processor slot 0 (connectors J0501 and J0601) See
The CPU modules are enclosed in a cooling shroud and secured to the shroud with
captive screws that must be torqued to specific values.
Note – Beginning in June 2004, CPU torque tools are not shipped in the Sun Blade
2000 workstation. The torque tools are shipped with the CPU modules.
CPU processor slot 0
Captive screw(2)

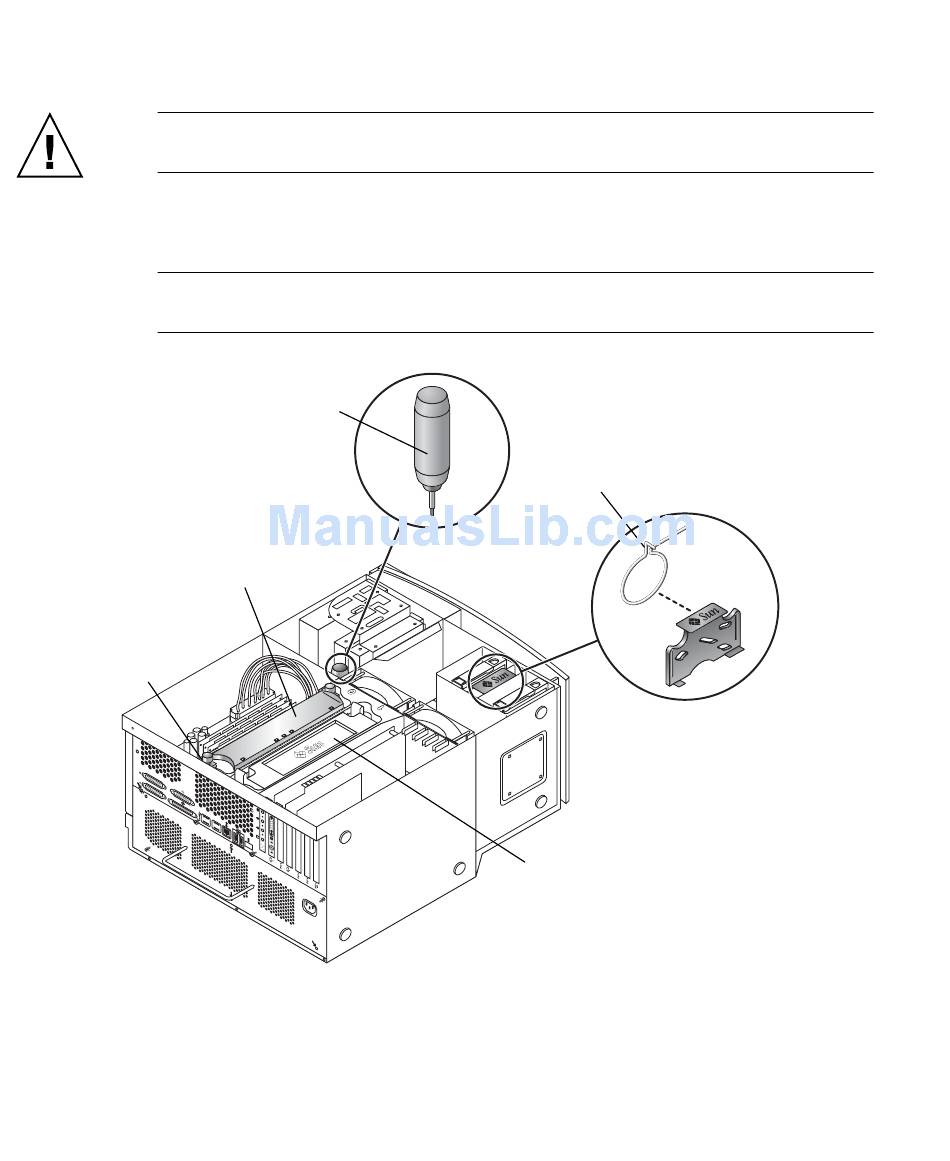

Location of CPU Processor Slot 0, Captive Screws, and Torque Tools
FIGURE 6
12 Sun Blade 1000 and Sun Blade 2000 UltraSPARC III Cu Module Installation Guide • June 2004
Torque tool A
.
FIGURE 6
Torque tool B
CPU processor slot 1
