Baumatic BES900BGL Instruction Manual

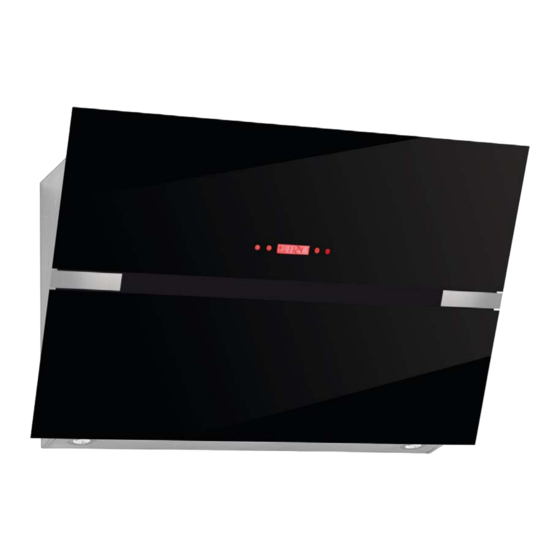

90 cm glass chimney hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BES900BGL
90 cm Glass Chimney
Hood
my

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BES900BGL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic BES900BGL

Summary of Contents for Baumatic BES900BGL

  • Page 1 BES900BGL 90 cm Glass Chimney Hood...
  • Page 2 User Manual for your Baumatic BES900BGL 90 cm Glass Chimney hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Setting the time of day Light control 9 – 10 Speed selection The cut-off timer 10 - 11 Cleaning your Baumatic cooker hood Cleaning The grease filters Maintenance 12 - 15 Removing and cleaning the grease filters 12 - 13...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o When installed between adjoining wall cabinets, the cabinets must not overhang the hob. o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 to observe the fire safety advice contained in this instruction booklet. o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note: Your cooker hood is designed to remove cooking odours from the room and not steam.

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood PRODUCT DIMENSIONS Height: 650 mm Width: 900 mm Depth: 430 mm Your cooker hood is fitted with: o Touch control operation o LCD display o Integrated centrifugal motor o Cut off timer o 3 Speeds o 2 x Washable aluminium grease filters o 2 x LED lights o Extraction capacity: 1000 m³/hr...

  • Page 9: Using Your Cooker Hood

    Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o When you initially connect the cooker hood to the electricity supply, the backlight will turn on and the hood will enter stand- by mode.

  • Page 10: Speed Selection

    o It is highly recommended that the hood lights are only used when the appliance is in operation. They should not be used as a permanent lighting source for your kitchen. Speed selection o To switch the cooker hood motor on you should press the speed selection button.

  • Page 11: Cleaning Your Baumatic Cooker Hood

    When the display shows the correct countdown time, release all buttons and in a few seconds the countdown will begin. o When the countdown time reaches “00:00” the cooker hood will switch off automatically. Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING,...

  • Page 12: Maintenance

    Maintenance Removing and cleaning the grease filters o First lift up the cover screen and then remove the grease filters by pulling down on the handle and pulling them away from cooker hood as shown in the diagram above. o Soak the grease filters in hot water and washing up liquid for at least 3 minutes.

  • Page 13: Changing A Light Bulb

    o Repeat the process if required. o Refit the grease filters once they have dried and close the cover screen. o IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 14: Fitting The Carbon Filter

    o IMPORTANT: It is not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring complete part. This available from Spares Department. o Fit the replacement bulbs, bulb holders and wiring in the same manner as the originals.

  • Page 15: Installation

    2) Hook the carbon filter over the pins that are located at the end of the motor. 3) Turn the carbon filter clockwise, until you feel it click into place. o Repeat this process second carbon filter. You need to place a carbon filter at either end of the motor.

  • Page 16: Electrical Connection

    Electrical connection YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm. THE FUSE MUST BE RATED AT 3 AMPS.
  • Page 17 o Ensure that all electrical connections are carried out by a suitably qualified person. o Before commencing installation of the cooker hood the grease filter should be removed. o Check inside the product and insure that there is no transit packaging or any other materials, such as packets of screws, guarantees etc.

  • Page 18: Extraction Mode Or Recirculation Mode

    Please note that the styles of cooker hood shown in the line drawings in the following pages are sometimes different to the shape of the BES900BGL. However the installation method shown is correct and MUST be followed.
  • Page 19 IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED. Remove grease filters previously described). 2) Position the hood against the wall that you are intending to install it on and mark the position of the screw holes that are to be drilled (as shown in the figure above).
  • Page 20 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B. 3) Using a drill bit with an 8 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
  • Page 21 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.

  • Page 22: Connecting To External Ducting

    Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours.
  • Page 23 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D).
  • Page 24 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section (C) to the hood and fix it onto the hood using the two screws that are supplied.

  • Page 25: Completing The Installation

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting Baumatic Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly.
  • Page 26 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 27: Baumatic Consumables

    BC005 Stainless Steel Cleaner and Protector (250ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk...

  • Page 28: Contact Details

    United Kingdom Baumatic Ltd., Baumatic Buildings, Czech Republic 6 Bennet Road, Baumatic CR spol s.r.o. Reading, Berkshire Lípovà 665 RG2 0QX 460 01 Liberec 4 United Kingdom Czech Republic Sales Telephone +420 483 577 200 (0118) 933 6900 Sales Fax www.baumatic.cz...
