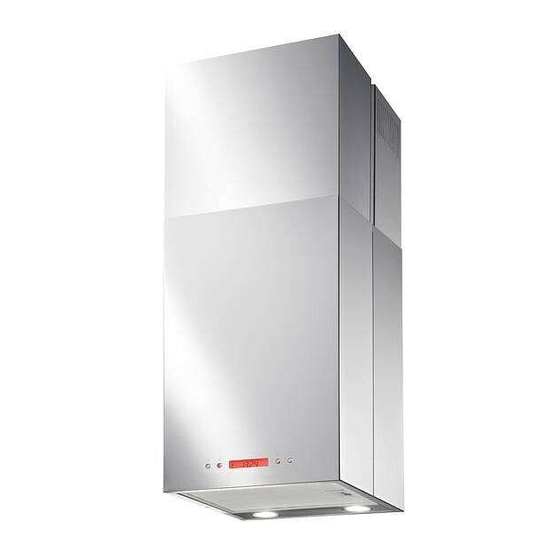

35 cm island cooker hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BEI350SS 35 cm
Island cooker hood
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEI350SS and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BEI350SS

Summary of Contents for Baumatic BEI350SS

  • Page 1 BEI350SS 35 cm Island cooker hood...
  • Page 2 User Manual for your Baumatic BEI350SS Cooker Hood 35 cm Island cooker hood in stainless steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Contents Page Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood Using your Baumatic cooker hood 9 - 12 Before first use To use your cooker hood 9 – 10 Light control Speed selection Setting the time of day...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood been disconnected...

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood Congratulations on purchasing a Baumatic cooker hood! PRODUCT DIMENSIONS Height: 880 mm * – 1180 mm Width: 350 mm Depth: 390 mm o Integrated centrifugal motor o Electronic pushbutton operation o LCD display o 3 Speeds...

  • Page 9: Using Your Baumatic Cooker Hood

    Using your Baumatic cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner and polish on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.

  • Page 10: Light Control

    Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o Find the control panel, which is located at the front of the hood. o There are several buttons on the control panel, which perform separate functions.

  • Page 11: Setting The Time Of Day

    Setting the time of day o When the cooker hood lights have not been turned on and a motor speed has not been selected, you are able to set the time of day shown on the LCD display. o Press and hold the timer button for about 3 seconds to enter the time setting mode.

  • Page 12: Cleaning Your Baumatic Cooker Hood

    IMPORTANT: The cut off timer function does not control the hood lights. If you have turned the hood lights on during use, you will need to turn these off manually after the countdown time has elapsed. Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING,...

  • Page 13: The Grease Filters

    The grease filters o Your cooker hood includes a grease filter which helps to absorb grease particles to protect your kitchen and furniture from greasy residues. o The aluminium filter may become flammable if it becomes saturated with this greasy residue. o To prevent this fire hazard, the filter should be cleaned regularly.

  • Page 14: Changing A Light Bulb

    o Refit the grease filter once it has dried. o IMPORTANT: Let the grease filter dry thoroughly before refitting it in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 15: Fitting The Carbon Filter

    o Refit the grease filter. Fitting the carbon filter If the appliance is to be used in recirculation mode then it is necessary to fit carbon filters. These will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 16: Installation

    o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage.

  • Page 17: Before Beginning Installation

    with the I.E.E. and local regulations. The wires in the mains lead are coloured in accordance with the following UK code: Blue = Neutral, Brown = Live, Green/Yellow = Ground If you only find two wires in the main’s lead (blue and brown), then neither must be connected to the earth terminal.

  • Page 18: Positioning

    o Wall plugs are provided to secure the hood to most types of ceilings. However qualified technician must verify suitability of the materials, in accordance with the type of ceiling. The ceiling must be strong enough to take the weight of the hood.

  • Page 19: Installing Your Cooker Hood

    yourself sufficient space to make the electrical connections and connecting the ducting hose (if required). IMPORTANT: Your ceiling should have a minimum height of 2.7 metres; otherwise you may encounter difficulties when installing the appliance. IMPORTANT: Although the minimum height of the appliance can be set at 880 mm.

  • Page 20: Supplied Installation Components

    Supplied installation components 1) Position the hanging plate on the ceiling and then mark the position of the screw holes. o The hanging plate should securely fixed to the ceiling, using the 12 x ST6 (40 mm) screws. o Depending on the surface of the ceiling that you are fixing the hanging plate to, you may need to use 8 x expansion bolts (for concrete).
  • Page 21 2) Fix the angle bars to the hanging plate, using the 8 x M4 nuts and bolts with metal washers. 3) Extend the angle bars to the required height and then fix them in position using the 16 x M4 nuts and bolts with metal washers.
  • Page 22 o Fix the upper chimney section to the hanging plate, using the 4 x self tapping screws. o Slide the lower chimney section onto the angle bars and raise it until it sits just below the upper chimney section. o Use the hanging hook to temporarily keep the lower chimney section in this position, to make sure that it does not drop down whilst fixing the main body of the hood to the angle bars.

  • Page 23: Competing The Installation

    Completing the installation o If you are setting the appliance to recirculation mode, then you should now fit the carbon filter. See the “Fitting the carbon filter” section on pages 15 - 16. o The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood.

  • Page 24: External Ducting

    1 metre. Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting Baumatic Customer Care, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply.
  • Page 25 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...

  • Page 26: Contact Details
