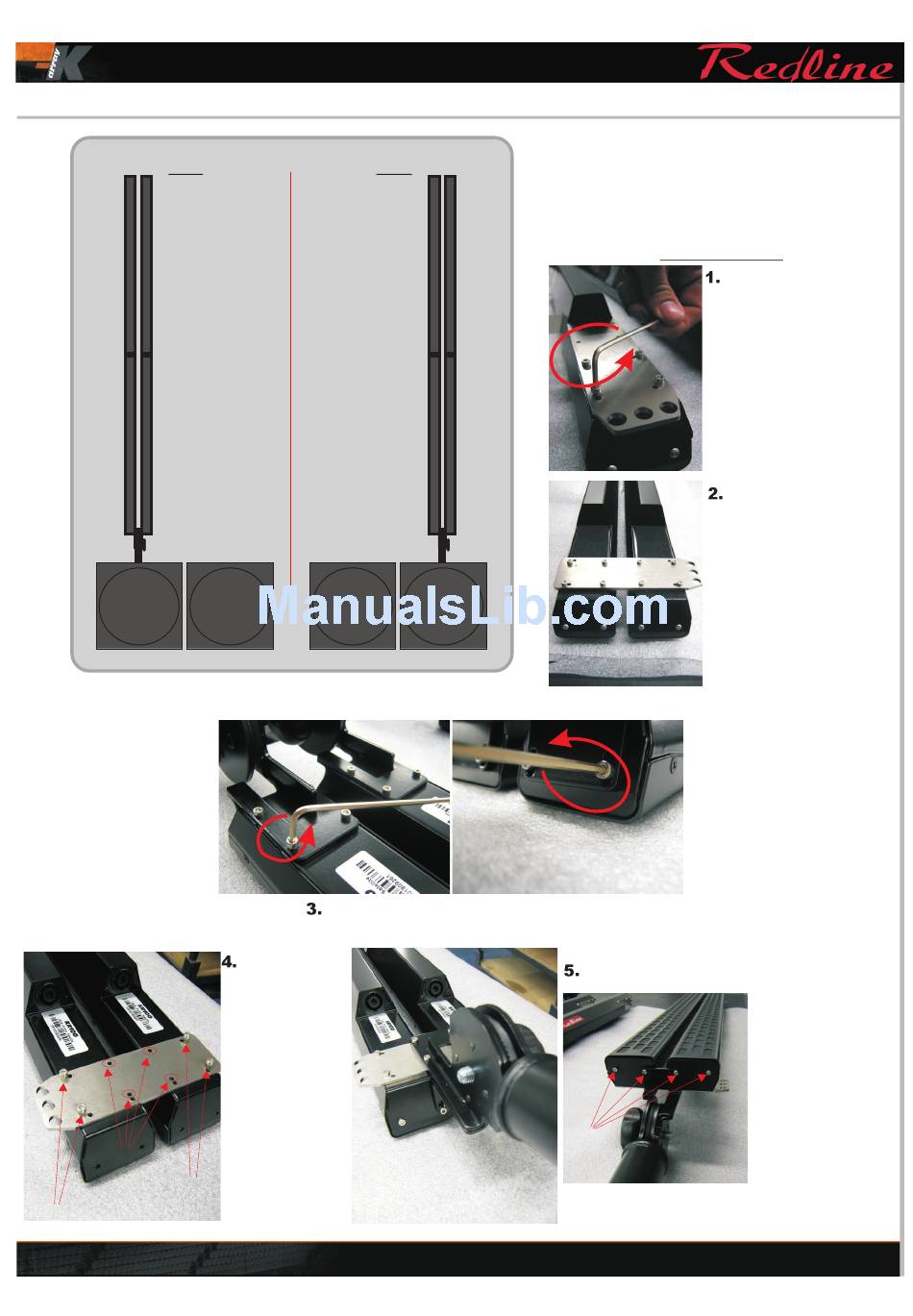

6. SYSTEM'S EXTENSION
SX
System 1
2 x KR200
2 x KL18ma
A
M3x10
M3x10
USER'S MANUAL
DX
System
2 x KR200
2 x KL18ma
Disassemble the junction of the lower support.
Combine the two
KR200 by the bottom
u s i n g t h e o t h e r
disassembled steel
bracket. Fix it only by
the more external
h o l e s . T h e f o u r
c e n t r a l p o i n ts o f
attachment (A) must
be left free.
To get
possible to combine two KR200 columns using the
machanical parts fitted on each speaker.
M3x10
pag. 06
higher SPL and horizontal directivity, is
Assembly Manual
Unscrew the four screws that
fix the high steel bracket (by
a 2.5mm allen key),
remove it.
Combine two KR200 by the
t o p u s i n g o n e o f t h e
disassembled brackets.
Assemble the junction
sopport with the middle of
the bracket, by the four
free central points of
attachment. Use other
four screws in the four
holes on the bottom of the
speaker.
