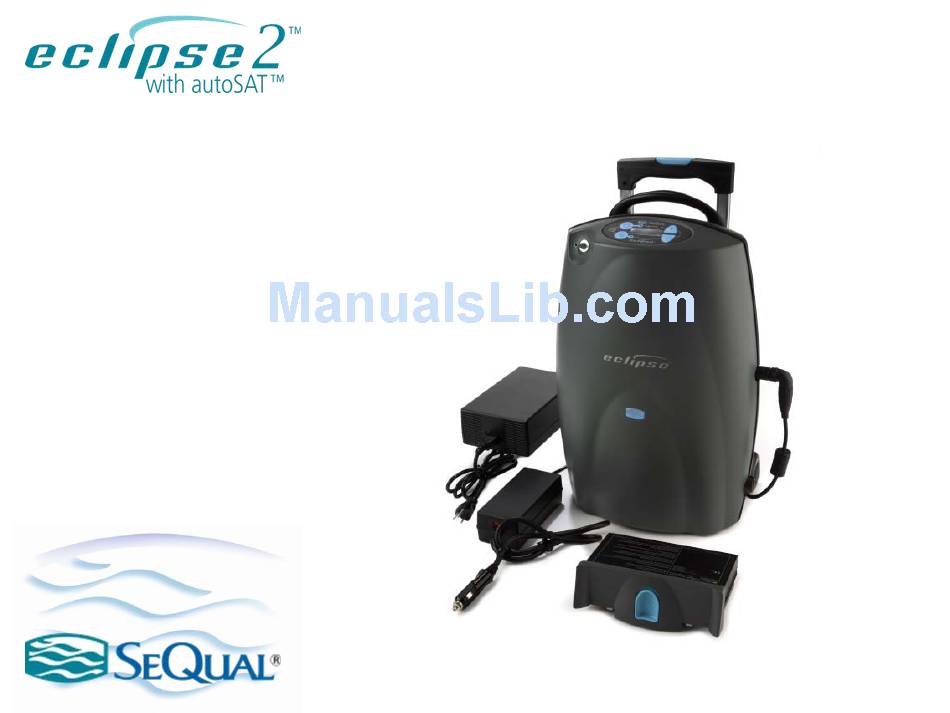

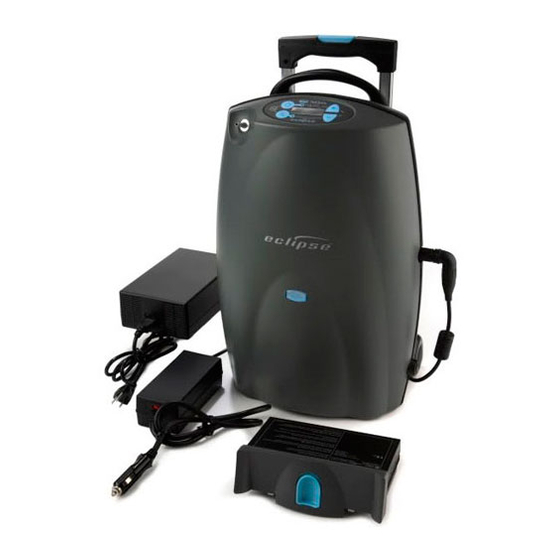

- Page 1 Eclipse & Eclipse 2 Eclipse & Eclipse 2 Troubleshooting Troubleshooting Alarm Conditions Alarm Conditions 11436 Sorrento Valley Road • San Diego, CA 92121 • www.sequal.com • 858.202.3100...
- Page 2 Quick Reference Guide (pg 6 & 7) Low Power Cartridge or warm Power Cartridge (pg 9) ECLIPSE is: Beeping has a YELLOW light flashing and the unit IS running. Low Oxygen Purity (Between 85% & 70%) (pg 9) ECLIPSE has: a YELLOW light flashing and the unit IS running. (NO Alarms).
- Page 3 The Eclipse will not Power Down (Turn OFF). • The Eclipse Powers ON automatically My Power Cartridge will not charge more than 5 bars (Eclipse 1 only). Power Cartridge Re-Calibration. Power Cartridge will not charge (Cascade) when it is in the Eclipse, and is running off an AC / DC Power Source.
- Page 4 Flashing Flashing Flashing Steady Steady Steady Steady Warm Loss of Syst Battery External Malf Low O2 Power (See < 70 % System Battery Codes) Battery Flow Block 11436 Sorrento Valley Road • San Diego, CA 92121 • www.sequal.com • 858.202.3100...
- Page 5 Troubleshooting Guide No Alarming Codes Yellow Flash Steady Flash Steady Can not Charge Power Low O2 Cartridge Applicable Applicable <85% - No Breath >70% Detected (Pulse Mode Only) 11436 Sorrento Valley Road • San Diego, CA 92121 • www.sequal.com • 858.202.3100...
- Page 6 2 Beeps 0.5s/0.5s every 30s DC cable detected 4/Medium (1s/1s) (0.5s/1.5s) < 70 3/High (0.25s/0.25s) 3 Beeps (0.5s/0.5 every 120s) Loss of power 2/High (0.25s/0.25s) Malfunction 1/High 10s then silence 11436 Sorrento Valley Road • San Diego, CA 92121 • www.sequal.com • 858.202.3100...
- Page 7 IPC watchdog timeout (External Power & Power Compressor motor stalled Battery communication failure Cartridge) for 20 sec's then IPC failure restart Eclipse. Product pressure sensor failure Breath pressure sensor failure Ultrasonic failure Loss of product tank pressure failure If problem persist replace Purity calibration data failure and/or repair unit.
- Page 8 Code Resolution Compressor motor too hot Remove Power for 20 PCB too hot min's then restart Eclipse. Product temperature sensor failure If problem persist replace and/or repair unit. 11436 Sorrento Valley Road • San Diego, CA 92121 • www.sequal.com • 858.202.3100...
- Page 9 ** NOTE: If Eclipse is plugged into an external power source and running from the Power Cartridge and will not switch over to an external power source (AC or DC) then there may be a system fault.
- Page 10 (The Diagnosis Code will disappear after 5 sec’s if no button is pushed). ** NOTE: If Eclipse is plugged into an external power source and running from the Power Cartridge and will not switch over to an external power source (AC or DC) then there may be a system fault.
- Page 11 Alarms) What Flow Mode is Eclipse in CONTINUOUS or PULSING? If Continuous Flow – Is Eclipse is at least 3” away from anything that may block the vents (i.e.: drapes, bedding, fabric or upholstery, and is the cabinet filter clean? If “YES”, then the purity is low.
- Page 12 What Flow Mode is set? (CONTINUOUS or PULSING) If Continuous Flow – Is Eclipse is at least 3” away from anything that may block the vents (i.e.: drapes, bedding, fabric or upholstery, and is the cabinet filter clean? If “YES”, then your purity is low.
- Page 13 Troubleshooting Guide Troubleshooting Guide Flow Rate Error / Blocked Flow Eclipse is: BEEPING has a YELLOW BLINKING LED and the unit running Ensure that the Oxygen Tubing and Nasal Cannula are not blocked or kinked If a humidifier bottle is attached make sure it is not clogged? Replace it if necessary Check to make sure Air Intake Vent (Filter) is not blocked.
- Page 14 A qualified person needs to test the pulse sensitivity. If the steps above have been taken and the Eclipse is still not functioning correctly. Exchange out the unit for evaluation and possible repair. 11436 Sorrento Valley Road • San Diego, CA 92121 •...
- Page 15 If “Yes” then find a working outlet to plug in Eclipse. If “No” then proceed to Step B Remove all electrical power from the Eclipse; by removing the Power Cartridge and any AC or DC power source. If alarming continues, push & hold the Power Button for 5 - 7 seconds then release to silence the alarm.
- Page 16 If “Yes”, continue to Step E Push and hold the On/Off button until the unit turns “ON”, the Eclipse should sound a 3 second test beep. All LED’s should be LIT. The Red then the Yellow LED’s should go out with in several minutes.
- Page 17 Is the LED on top of the AC or DC Adapter lit, (YES or NO)? If “YES” go to Step D If “NO”: ensure there is power to the AC outlet.. If not, find a working outlet for Eclipse. If the LED still is not lit, then the adapter may have a fault.
- Page 18 Continued from Previous Page Plug in the AC or DC power cord into the Eclipse power connector (on the side of the Eclipse). A 3 second “Test Beep” should be heard and all 3 LED’s should light up, for 3 sec’s and the Green LED will remain on.
- Page 19 Display Panel may be faulty (See Below) Note: “Find a quiet, out of place location (i.e:, spare room) where the Eclipse can be placed and allowed to alarm and until the internal battery is depleted.. “Contact your provider for further instructions”...
- Page 20 Power Cartridge will not charge more than 5 bars (E1) & more than 2 bars in Eclipse shuts down at half the time expected while running on the Power Cartridge. Has the Power Cartridge and display been calibrated recently? If “YES”, then go to Step vi If “NO”, Make sure the Power Cartridge is plugged into the Eclipse.
- Page 21 Allow Eclipse to charge the Power Cartridge until the Power Cartridge Indicator is full. ** NOTE: By powering down or reducing the liter flow the Eclipse will charge the Power Cartridge more rapidly. 11436 Sorrento Valley Road • San Diego, CA 92121 •...
- Page 22 (2.5 or 3.0 continuous)? (YES or NO) If “YES”: The Power Cartridge may have over heated. Remove the Power Cartridge from Eclipse and allow it to cool in a well ventilated area for approximately 20 min’s, then return the Power Cartridge to Eclipse for recharging.
- Page 23 *Note: If Eclipse can be used in the Pulse Mode do so. This mode of operation reduces the power requirements from the vehicle electrical system, or use the Power Cartridge to continue to run Eclipse 11436 Sorrento Valley Road •...
- Page 24 Eclipse Technical Support Eclipse Technical Support Thank you for Thank you for your time & your time & Interest in Interest in SeQual SeQual Technologies Technologies 11436 Sorrento Valley Road • San Diego, CA 92121 • www.sequal.com • 858.202.3100...
