Summary of Contents for Martin Professional Stagebar 54
- Page 1 Stagebar 54 user manual...
-
Page 2: Dimensions
Stagebar 54 L ©2007-2009 Martin Professional A/S. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual. -
Page 3: Safety Information
Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: Warning! Warning! Warning! Warning! Warning! Safety hazard. - Page 4 • Do not expose the fixture to rain or moisture. • Refer any service operation not described in this manual to a qualified technician. P R O T E C T I O N F R O M F I R E •...
-
Page 5: Table Of Contents
..............27 Stagebar 54™ specifications... -
Page 6: Product Overview
Replace fuse with one of same type and the first fixture in the chain must not exceed rating only. 15 amps peak, 11 amps constant Figure 1: Connections panel Stagebar 54 user manual... -
Page 7: Introduction

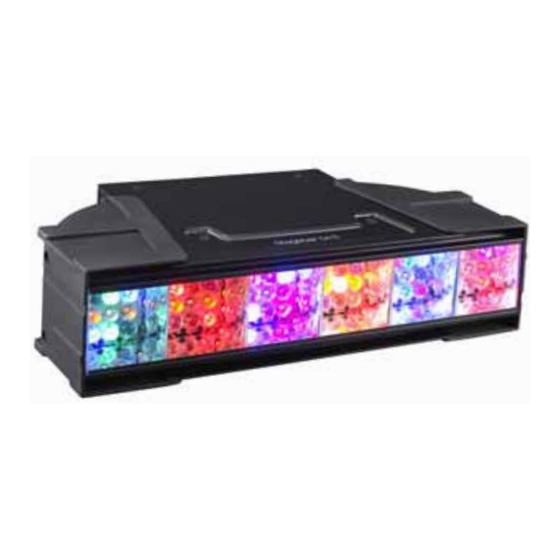

Introduction Thank you for selecting the Stagebar 54™, a modular LED-based color changer and pixel display fixture from Martin™. This product features: • Luxeon K2 high-power LEDs • 116 watts total LED output per fixture at 25° C (77° F) •... -
Page 8: Physical Installation
The Stagebar 54 can be installed in a standing position or suspended in any orientation from a truss or supporting structure. The supplied mounting bracket can be fitted with a rigging clamp or bolted to a surface. -
Page 9: Ac Power
AC power Warning! Read “Safety Information” on page 3 before connecting the Stagebar 54 to AC power. Lock out power to the entire distribution system before carrying out installation work. Warning! Replace fuses with ones of the same type and rating only. - Page 10 11 amps constant. See the following examples for an explanation of what this means in practice: - At 100 V AC power, a maximum of five Stagebar 54 fixtures may be linked in one chain so that they draw AC power from the same source. As stated in the Stagebar 54 Specifications (see page 28), each fixture draws a current of 2.5 A at 100 V.
-
Page 11: Control Data Link
• Each chain on the link must be terminated by inserting an RJ-45 termination plug (P/N 91613028) into the data output of the last Stagebar 54 on the chain. The termination plug places a resistance across data hot (+) and cold (-). -
Page 12: Connecting The Data Link
• Pin 5 (White/blue) XLR connector pinout To connect Stagebar 54 fixtures to a controller with an XLR output, for example, connectors are suitable if DMX cable is used for the data link. XLR pin numbers are normally marked on connectors. Connectors must be wired using the standard XLR DMX pin-out: •... -
Page 13: Fixture Setup
The DM X M OD E → pi x e l gr o up i n g menu also allows you to set up pixel control (one pixel is one of the six blocks of LEDs in a Stagebar 54). You can control each pixel individually, so that each pixel displays its own color and is controlled using its own DMX channels, or you can control pixels in groups. -
Page 14: Fixture Settings And Dmx Channel Requirements
The fixture’s DMX address can be set manually using AD D RE S S → m an . ad d re s s in the control panel. Press Enter, then use the up and down buttons to set the address. The fixture’s battery power means that the fixture does not have to be connected to mains power for manual address setting. Stagebar 54 user manual... -
Page 15: Fixture Readouts
DMX address and will light up red for a moment. If you apply an ad d r. i n pu t - > command to a Stagebar 54, you will run the same process, but you will assign addresses to all the fixtures that are connected to the first fixture’s data input connector. - Page 16 • If you apply a c op y i n p ut - > command, the settings are copied back along the link to all the fixtures that are powered on and connected to the fixture’s data input. Fixtures must not receive an external DMX signal during the settings copy process. Stagebar 54 user manual...
-
Page 17: Operation
Operation Once the Stagebar 54 is connected and set up as described earlier in this manual, adjust color and intensity using the DMX controller following the applicable DMX protocol (see page 22). Color control See “Color control mode” on page 13 for a description of RGB, RGBAW, HSI and HSIC modes. -
Page 18: Service And Maintenance
To maximize the life of the Stagebar 54 and protect the investment it represents, clean the fixture regularly – especially the cooling fans and grilles – following the guidelines in this section. -
Page 19: Installing And Removing The Diffuser Front
5. See Figure 4. If a cooling fan or grille requires more thorough cleaning, loosen the fan assembly retaining screw (arrowed) slightly and slide the assembly out of the end cap for access. Do not strain the wires to the fan. Brush dirt from the fan blades with a soft brush, preferably in conjunction with a vacuum cleaner. -
Page 20: Removing And Installing Led Lenses
The power output circuit and connector are protected by a 15 amp slow-blow fuse located inside the fixture on the mains filter PCB. If devices connected to a Stagebar 54 via the power output connector are dead but the Stagebar 54 is working normally, this fuse may have blown. -
Page 21: Battery Service
Software installation It may be necessary to upload new software to the Stagebar 54 if you believe that the product has a software-related fault or if you want to update to a newer version. Software updates are available from the Martin website (http://www.martin.com) and can be installed via the DMX data link with the following items:... -
Page 22: Dmx Protocols
→ Violet Magenta Saturation → 0 - 255 0 - 100 Zero (white) Full Intensity → 0 - 255 0 - 100% Intensity 0 100% In HSI mode, white color temperature is fixed at 5500 K. Stagebar 54 user manual... -
Page 23: Pixels Controlled In Groups
1 , 2 or 3 in the control panel), the fixture uses one block of DMX channels per group. are repeated for each group of pixels. For example, a Stagebar 54 with pixels that is: → → • set to three groups of 2 pixels (D MX M O DE... -
Page 24: Onboard Control Panel Menus
PE R SO N AL T Y b ac k l i gh t Set time before display backlight goes into d e l ay sleep mode to 15 secs., 30 secs. or 2 mins. Stagebar 54 user manual... - Page 25 Menu Options Notes s of t w. v e rs i o n Display main fixture software versions Display number of hours fixture powered on re s et ta b l e h ou r s since last reset (to reset, display hours then press Up key for 5 secs.) p ow e r on h ou r s Display number of hours fixture powered on...
-
Page 26: Display Messages
DC E R Contact Martin Service for assistance communication error ...the fixture’s unique I.D. Contact Martin for assistance with RU E R (identification code) is missing obtaining and loading a new I.D. from the fixture software or invalid Stagebar 54 user manual... -
Page 27: Troubleshooting
Troubleshooting Problem Probable cause(s) Remedy No power to fixture. Check power and connections. Fixture is completely dead. Primary fuse blown (located in fuseholder on Isolate fixture from power. Check fuse and replace. rear panel). Fixture works normally but other Power output fuse blown (located inside fixtures connected to power fixture behind right-hand end cap on PCB Isolate fixture from power. -
Page 28: Stagebar 54™ Specifications
Primary fuse............. .4 AT slow blow Stagebar 54 user manual... - Page 29 Stagebar 54L™ ............P/N 90352010 Specifications subject to change without notice. Stagebar 54™ specifications...
- Page 30 Stagebar 54 user manual...
- Page 31 Drilling template Ø7 Ø9.5 Ø13.5 Ø9.5...
