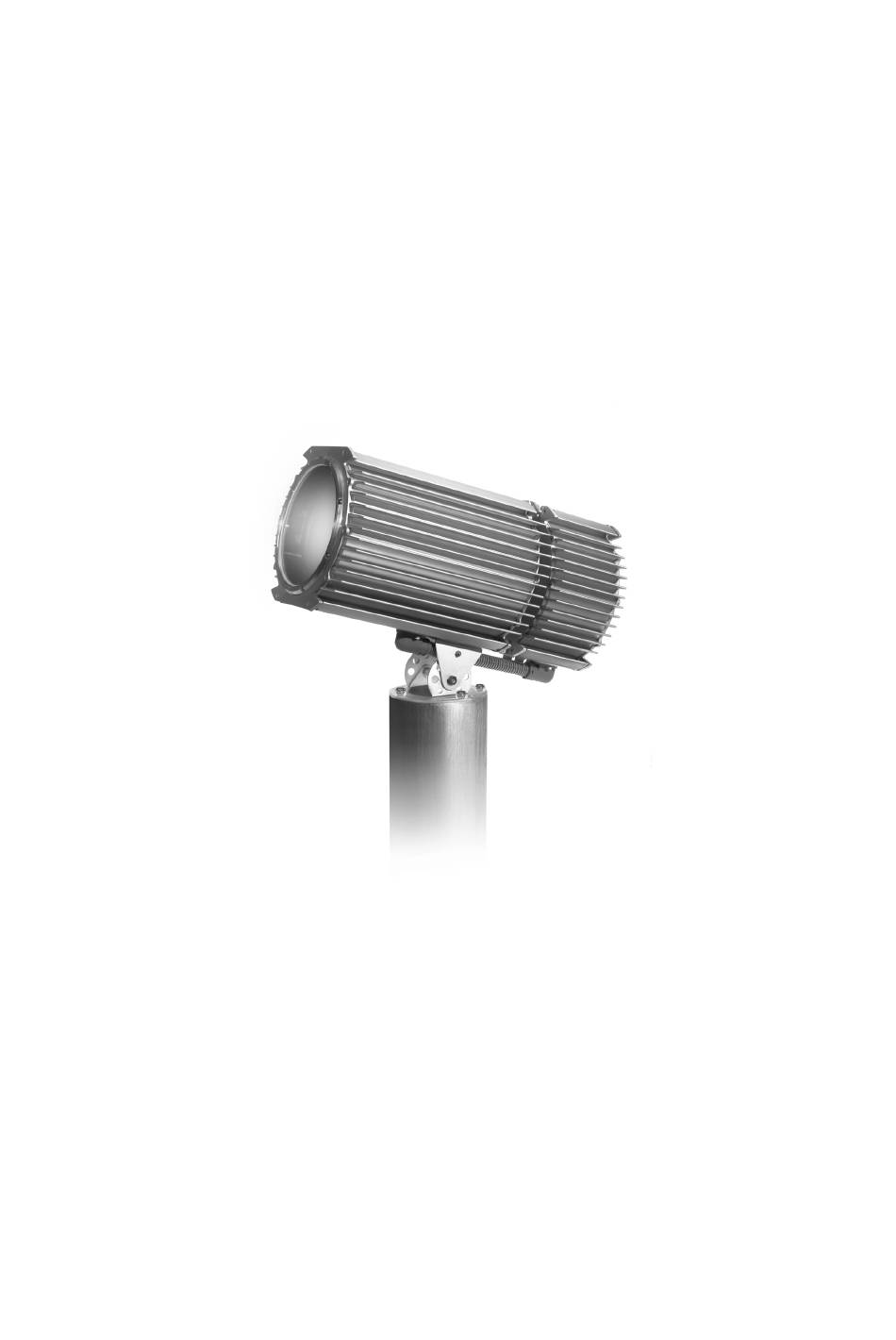

  • Page 1 Exterior 600 u s e r m a nua l...
  • Page 2 ©1998, 2000 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000020, Rev. G...

  • Page 3: Table Of Contents

    t a b l e o f C O N T E N T S Introduction and Safety Safety precautions ........................4 About this manual ........................4 Lamp Installation Compatible lamps ........................5 Maximum lamp usage......................5 Installing the lamp........................5 Optimizing lamp alignment ......................6 AC Power Connection Tapping the power supply......................7 Wiring the mains lead ......................9...

  • Page 4: Introduction And Safety

    S a f e t y p r e c a u t i o n s The Exterior 600 is not for domestic use. It presents potential risks due to electric shock, heat and ultraviolet radia- tion burns, lamp explosion, falls, high-intensity light, and fire. A thorough understanding of the dangers, genuine con- cern for safety, and attention to detail are required to prevent accidents.

  • Page 5: Lamp Installation

    This section describes how to install and adjust a lamp. C o m p a t i b l e l a m p s The Exterior 600 is designed to use the lamps listed below. Installing other lamps may damage the fixture. Lamp...

  • Page 6: Optimizing Lamp Alignment

    Tighten the Allen screws with a torque of 3 N.m (2.2 Ft-Lbs). With this torque, the seal will be compressed by about one-third. Tilt the rear section into position and replace the long bolt and lock nut. Exterior 600...

  • Page 7: Ac Power Connection

    A C P O W E R C O N N E C T I O N The Exterior 600 is available with a power supply for operation at 200/230/245 V, 50 Hz and 208/227 V, 60 Hz; and with a special transformer for operation at 277 V, 60 Hz. This section describes how to tap the power supply for the local AC voltage and frequency and how to connect the Exterior 600 to AC power.
  • Page 8 277 V see label Make sure the Exterior 600 is isolated from AC power. Remove the 10 Allen screws from the rear cover plate. Pull off the plate and seal. Locate the BROWN wire that connects the mains filter to the transformer. Move this wire to the transformer terminal labelled for the desired setting, 230 or 277 V.

  • Page 9: Wiring The Mains Lead

    Consult a qualified electrician if the Exterior 600 is to be connected directly to building wiring. There shall be a switch in the circuit to turn power off when the fixture is not in use or is being serviced.

  • Page 10: Data Connection

    This section describes how to connect fixtures to a controller and other devices, and how to terminate the data link. For data connection, the Exterior 600 has a dual 1.8 meter (5.9 ft.) 24 AWG cable with locking 3-pin XLR connectors.

  • Page 11: Terminating The Link

    Te r m i n a t i n g t h e l i n k Link termination is achieved by inserting a 120 ohm resistor across the signal + (hot) and signal - (cold) wires; it is important for trouble-free communication. If a splitter is used, terminate each branch of the link. The easiest way to terminate the link is to insert a male termination plug into the data output cable of the last fixture.

  • Page 12: Installation

    L o c a t i o n a n d o r i e n t a t i o n The Exterior 600 may be installed outdoors, in any orientation. It shall be located at least 1 meter (39 in.) away from the surface to be illuminated and any combustible materials.

  • Page 13: Address, Settings, And Software

    Otherwise, if you can apply power only to the fixture you want to set and you can turn off all others, use all-fixtures mode: only the Exterior 600 that is powered on will be set.

  • Page 14: Setting Address And Mode

    The fixture address, also known as the start channel, is the first channel used to receive instructions from the controller. The Exterior 600 requires 8 channels in DMX mode 1 and 9 channels in DMX mode 2. It uses 2 channels in Martin mode.

  • Page 15: Setting Personalities

    Once programmed, scenes are executed using the Martin MC-X remote control. The MC-X, which sends DMX com- mands with a special start-code on channel 1, also has functions to blackout the light and to engage the Exterior 600’s stand-alone mode. Please refer to the MC-X user manual for information about executing scenes.
  • Page 16 Enter enter effect menu Program the dimmer level. Press Times Display up / down as needed select dimmer level menu Enter enter menu up / down as needed adjust dimmer level 0-255 Enter save setting and continue Exterior 600...
  • Page 17 Program the color wheel color. Press Times Display up / down as needed select color wheel menu Enter enter menu WHIT up / down as needed select color varies Enter save setting and continue Set CMY color. Press Times Display up / down as needed select cyan menu...

  • Page 18: Running A Test Sequence With The Mpbb1

    I n s t a l l i n g s o f t w a r e The latest control software for the Exterior 600 is available from your Martin dealer and the Martin web site at http:// www.martin.dk.
  • Page 19 Disconnect the fixture from AC power. Open the electronics section as described on page 26. On the circuit board, move jumper PL121 to pins 1 " " " " PIN 1 PIN 1 and 2 (hard boot setting) as shown. PL104 PL121 PL104...

  • Page 20: Stand-Alone Operation

    S T A N D - A L O N E O P E R A T I O N This section describes how to operate the Exterior 600 without a controller in stand-alone (SA) mode in which the fix- ture executes random color changes at set intervals and speeds at a set time and/or light level.

  • Page 21: General Procedure For Changing Stand-Alone Settings

    G e n e r a l p r o c e d u r e f o r c h a n g i n g s t a n d - a l o n e s e t t i n g s Plug the fixture’s data input cable (male) into the 3-pin “DMX/RS-485 OUT”...

  • Page 22: Synchronizing Stand-Alone Operation

    The color relationship for each address is shown in the table of stand-alone settings. Disconnect the MPBB1 and reconnect the data link. Turn the fixture off. The stand-alone settings take effect when the fixture is turned back on. Exterior 600...

  • Page 23: Controller Operation

    M a r t i n R S - 4 8 5 c o n t r o l The Exterior 600 is controllable with the Martin 3032 controller. Though the Exterior 600 is not implemented in the 3032 software, it may be set up in the controller as a MAC 600. Use the beam-shaper 1 control to operate the zoom.

  • Page 24: Operating The Mechanical Effects

    O p e r a t i n g t h e m e c h a n i c a l e f f e c t s The mechanical effects reset to their “home” position when the Exterior 600 is powered on. They can also be reset from the controller on channel 1.

  • Page 25: Operating Status

    O p e r a t i n g s t a t u s Under normal operation, the LED display indicates the status of the mechanical effects and the control data. Two steady green LEDs indicates proper operation. A red or unlit LED indicates an error. Special conditions are also indicated.

  • Page 26: Basic Service And Maintenance

    R e p l a c i n g f u s e s The Exterior 600 has 4 fuses. The main fuse is located in a fuse holder inside the electronics section, to the left of the ballast. The fuses for each of the 3 low-voltage power supplies are located on the printed circuit board.

  • Page 27: Maintaining The Seal

    M a i n t a i n i n g t h e s e a l The Exterior 600 has an IP rating of 65: it is protected against dust and can withstand low pressure water jets. To main- tain protection against dust and water: Replace any seal that becomes brittle or shows visible signs of wear.

  • Page 28: Dmx Protocol

    Tracking, no shortcuts (override SCUT ON) (Mode 2 only) 249 - 251 98 - 98 Tracking, shortcuts on (override SCUT OFF) 252 - 255 99 - 100 Dimmer, CMY, and zoom: fast (no blackout), Color wheel and beam shaper: blackout while moving Exterior 600...

  • Page 29: Troubleshooting

    a p p e n d i x b TR O U B L E S H O O T I N G Problem Probable cause(s) Remedy Check that power is switched on and cables Fixture not powered on. are plugged in. One or more of the fixtures is Primary fuse blown (located Disconnect fixture and replace fuse.

  • Page 30: Specifications

    a p p e n d i x c S P E C I F I C A T I O N S P h y s i c a l • Length............................636 mm (25.0 in) • Width ............................. 375 mm (14.8 in) •...
  • Page 31 Seal for alu. gable, Exterior 600 (4 pcs. included in seal kit)............. P/N 20600020 • Seal 1 for front lens, Exterior 600 (2 pcs. included in seal kit) ............P/N 20620060 • Seal for lamp replacement, Exterior 600 (1 pc. included in seal kit) ..........P/N 20620050 •...
