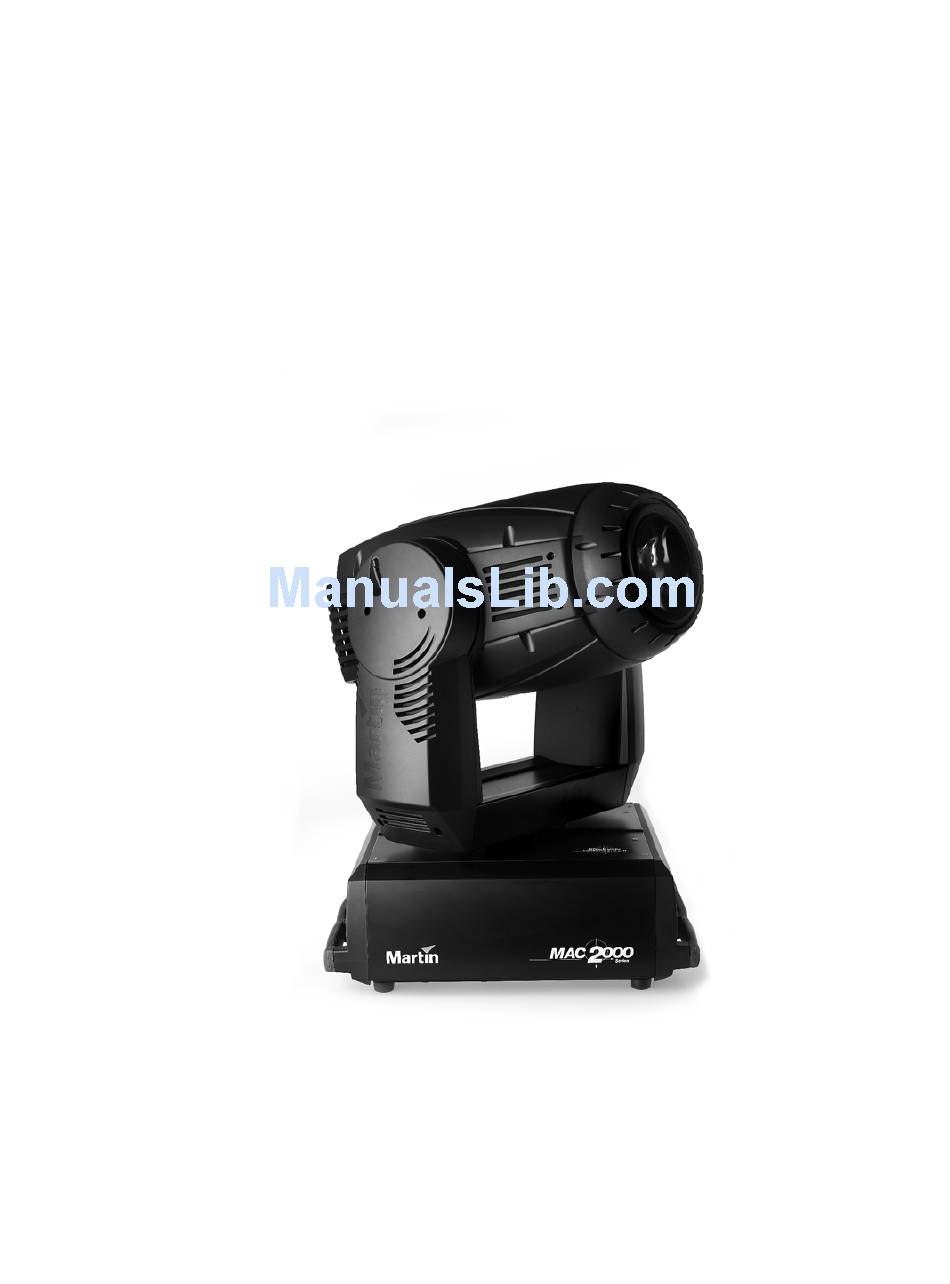

MAC 2000
Performance II
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAC 2000 Performance II and is the answer not in the manual?

Questions and answers

Related Manuals for Martin Professional MAC 2000 Performance II

Summary of Contents for Martin Professional MAC 2000 Performance II

  • Page 1 MAC 2000 Performance II user manual...
  • Page 2 270° © 2001-2006 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or eco- nomic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.

  • Page 3: Table Of Contents

    ONTENTS NTRODUCTION ............... . 5 Safety information .
  • Page 4 ONTROL MENU ..............45 DJUSTMENT SUBMENU .

  • Page 5: Introduction

    NTRODUCTION Thank you for selecting the MAC 2000 Performance II. The MAC 2000 Performance II is a 1200 W moving head spotlight that provides CMY color mixing, continuous color correction (CTC), four-blade framing system, motorized iris, gobo wheel with five indexable rotating gobos, indexable gobo animation wheel, effect wheel with 3 effects (wide-angle converter lens, non-rotating nine-facet prism and variable frost), combined dimmer/shutter, focus, zoom, 540°...
  • Page 6 P r o t e c t i o n f r o m b u r n s a n d f i r e • Never attempt to bypass the thermostatic switch or fuses. Always replace defective fuses with ones of the specified type and rating.

  • Page 7: Transportation

    RANSPORTATION Important! Release the transport locks before operating the fixture. Included items The MAC 2000 Performance II is shipped in a cardboard carton or 1 or 2 unit flight case that contains the following items. • User manual • 2 x 20 A main fuses (for use with 100-130 V local power supply) •...

  • Page 8: Double Flight Case

    Double flight case Unpacking 1 Open the flight case and pull the drawer all the way out. 2 Release the head (tilt) transport lock. 3 Install rigging hardware as described on page 11. 4 With one person on each side, lift the fixture out of the flight case.

  • Page 9: Ac Power

    Install the appropriate fuses in the holders near the power switch. Power supply adjustments The MAC 2000 Performance II (identified as such by the label on the base of the product) comes with an electronic ballast and an auto-sensing, auto-ranging switch-mode power supply. Manual adjustments to the transformer or ballast are not necessary as the MAC 2000 Performance II automatically adapts to the mains voltage and frequency.

  • Page 10: Data

    Important! Never connect more than 1 data input and 1 data output. The MAC 2000 Performance II has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

  • Page 11: Rigging

    IGGING The MAC 2000 Performance II can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 4. Figure 4: Clamp bracket positions Warning! Always use 2 clamps to rig the fixture.

  • Page 12: Control Panel

    Navigation The DMX address and any messages (see page 51) are displayed when the MAC 2000 Performance II is turned on. To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter].

  • Page 13: Readouts

    2 1 "8 positions at a steady rate. Begin by selecting the alternative, , which is better if the intermediate positions stray significantly from the line of travel. The second parameter is the number of position updates used to calculate speed. The level is adjustable between 1 and $ &...

  • Page 14: Service Messages

    Service messages The Service LED on the control panel lights under conditions that require fixture service, and there is a message % 2 % ? describing the service required. To display the message, select in the main menu. This item is available only when the LED is lit.
  • Page 15 Figure 6: Zoom calibration point → → 5 ' . 3 6 ! 3 9 = 1 / 5 To calibrate the dimmer, select and press [Enter]. Hold a piece of paper over the lens. Set the offset to 0 and then increase it until light is clearly projected onto the paper. Press [Enter] to save the setting.

  • Page 16: Effects

    FFECTS The MAC 2000 Performance II is compatible with USITT DMX512 controllers. The fixture has two DMX operating modes, 8-bit and 16-bit. 16-bit mode requires three more DMX channels than 8-bit mode but provides more precise gobo indexing and pan/tilt positioning. All other functions are identical. The complete DMX protocol begins on page 38.

  • Page 17: Dimming And Strobe

    shaft, and which can be quickly changed. The gobo animation wheel pivots to allow horizontal, vertical, and angled effects, such as rising flames or windswept clouds. Via your DMX controller, you can control both the starting position of the animation disc and its rotation direction and speed.

  • Page 18: Speed Control

    The pan/tilt speed (fast, norm, or slow) may be selected on the pan/tilt speed channel. Setting the pan/tilt speed channel to “blackout” causes the shutter to black out the light while the head is moving. Speed control There are two ways to control the speed at which effects move from one static position to another. These are known as tracking control and vector control and are selected on the Pan/Tilt Speed and Effect Speed Channels.

  • Page 19: Animation Guide

    D i r e c t i o n o f m o v e m e n t The flexible mounting system for the animation discs inside the MAC 2000 Performance II allow you, through DMX control, to position the wheel at any position through a 90 degree section of the disc. This means that effects can be produced with a horizontal movement - such as clouds, with a vertical movement - such as rising flames, or at any angle in between - such as driving rain.

  • Page 20: Animation Discs And Their Uses

    C o l o r The use of the dichroic CMY color changing system of the MAC 2000 Performance II can greatly enhance your animation effects. The system has been designed so that refraction across the beam will give slight variants in color, adding depth to your animations, particularly when using multiple dichroic colors.
  • Page 21 This animation wheel is supplied as standard with the MAC 2000 Performance II. E l l i p t i c a l b r e a k u p The Elliptical Breakup disc (P/N 62400221) produces a bidirectional movement similar to the Spiral Breakup, but with constantly changing direction of movement.

  • Page 22: Effects Ideas

    The ideas outlined here are intended as suggestions only. The precise look of any effect will depend on many factors including the focus setting of your MAC 2000 Performance II, the projection surface onto which the image is directed and any color mixing effects that you choose.
  • Page 23 W a t e r e f f e c t s IPPLING WATER Gobo 955 and one of the following Gobo 958 Gobo 833 Radial breakup disc Use slower speeds for gentler or more distant movement. For rough water, substitute a more 'wavy' gobo design such as DHA Lighting’s 'Reflected Water 906', 'Flames-4 960', or 'Fire/Waves 238-275' and use the Coarse Radial Breakup animation disc or the Elliptical Breakup animation disc (for an irregular movement) combined with a higher rotation speed.
  • Page 24 EFLECTED WATER Gobo 903 and one of the following Gobo 906 Radial breakup disc As with any animation effect, the rotation speed and image focus will have a great effect on the final projection, so these parameters should be experimented with. With all water effects, it is possible to add an amount of cyan from the color mixing system, which will diffract to give both cyan and white color shifts as the image animates.
  • Page 25 F i r e e f f e c t s The range of animation wheels available for the MAC 2000 Performance II is very versatile in producing fire and flame effects. Good results may be obtained from many of the designs together with any standard flame or fire gobo designs.
  • Page 26 C l o u d s , r a i n a n d s n o w The versatility that you can achieve with the animation system of the MAC 2000 Performance II makes this an ideal tool for creating all sorts of weather effects.
  • Page 27 O t h e r e f f e c t s Here are some further examples of different animations that can be achieved with the MAC 2000 Performance II. IGHT THROUGH TREES...
  • Page 28 REE IN BREEZE DHA 14 Gobo 110 Linear breakup disc By using a combination of the cyan and yellow color mixing flags, you can create various shades of green which will diffract to give a variety of shades. You should adjust the values proportionately to give darker or lighter shades of green to your image.

  • Page 29: Ptical Configuration

    PTICAL CONFIGURATION Rotating gobo wheel The MAC 2000 Performance II is supplied with 5 rotating gobos installed. Figure 7 shows the standard gobo configuration with the gobo positions marked. Open 1 - Dot breakup 5 - Flames 2 - Soft breakup...
  • Page 30 Custom stainless steel gobos can also be used, however they can warp, losing sharpness, in a matter of hours in the MAC 2000 Performance II. The useful life will depend on the gobo pattern and the projection cycle.
  • Page 31 R e p l a c i n g r o t a t i n g g o b o s Important! The gobo can fall out if the spring is inserted backwards. 1 Disconnect the fixture from power and allow it to cool. 2 Lock the head in the top side up position and remove the top cover.

  • Page 32: Effect Wheel

    Effect wheel The effect wheel provides a variable frost filter and two positions for effects. The MAC 2000 Performance II comes with a wide angle lens and a nine-fact prism installed in these positions. Wide angle lens 9-facet prism (beam expander)
  • Page 33 For information about using the gobo animation effects, see “Animation guide” on page 19. R e p l a c i n g t h e g o b o a n i m a t i o n w h e e l 1 Disconnect the fixture from power and allow it to cool.

  • Page 34: Routine Maintenance

    The MAC 2000 Performance II requires routine cleaning. To maximize the life of the product and protect the investment it represents, clean the fixture regularly – especially the cooling systems. It is essential to follow the guidelines given later in this section.
  • Page 35 R e p l a c i n g t h e l a m p s o c k e t The lamp holder used in the MAC 2000 Performance II eventually wears out due to the high voltages that pass through the contacts.

  • Page 36: Cleaning

    Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the MAC 2000 Performance II. Cooling fans suck in airborne dust and smoke particles, and in extreme cases fixtures may require cleaning after surprisingly few hours of operation.

  • Page 37: Software Installation

    R e q u i r e m e n t s The following are required in order to install software. • The MAC 2000 Performance II update file, available for download from the User Support Area of the Martin web site (http://www.martin.dk).

  • Page 38: Dmx Protocol

    PROTOCOL This section contains two DMX protocols (both from protocol version 1.0A): • “16-bit protocol” on page 39 • “8-bit protocol” on page 42 The 16-bit is the default protocol that is used. To modify this use the control menu. For more information see “Control menu”...

  • Page 39: 16-Bit Protocol

    16-bit protocol DMX channel Value Percent Function Start code = 0 Shutter, Strobe, Reset, Lamp On/Off 0 - 19 0 - 7 Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.) 20 - 49 8 - 19 No function (Shutter Open) 50 - 72 20 - 28 Strobe on fast→slow...
  • Page 40 DMX channel Value Percent Function Start code = 0 Rotating gobo 1 index coarse, MSB (Set gobo selection on channel 7) Index min. → max 0 - 255 0 - 100 Rotating gobo 1 cont. rotation (Set gobo selection on channel 7) 0 - 2 Static CCW slow →...
  • Page 41 DMX channel Value Percent Function Start code = 0 Framing shutter 2 0 - 126 Angle – 127-128 Parallel 129 - 255 Angle + Framing shutter 3 Out → In 0 - 255 0 - 100 Framing shutter 3 0 - 126 Angle –...

  • Page 42: 8-Bit Protocol

    8-bit protocol DMX channel Value Percent Function Start code = 0 Shutter, Strobe, Reset, Lamp On/Off 0 - 19 0 - 7 Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.) 20 - 49 8 - 19 No function (Shutter Open) 50 - 72 20 - 28 Strobe on fast→slow...
  • Page 43 DMX channel Value Percent Function Start code = 0 Rotating gobo index (Set gobo selection on channel 7) Index min. → max 0 - 255 0 - 100 Rotating gobo cont. rotation (Set gobo selection on channel 7) 0 - 2 0 - 1 Static CCW slow →...
  • Page 44 DMX channel Value Percent Function Start code = 0 Framing shutter 3 Out → In 0 - 255 0 - 100 Framing shutter 3 0 - 126 Angle – 127-128 Parallel 129 - 255 Angle + Framing shutter 4 Out → In 0 - 255 0 - 100 Framing shutter 4...

  • Page 45: Control Menu

    ONTROL MENU Menu Item Options Notes (Default settings in bold print) DMX address. ! " "# , E F , 8 () *+ Full control with coarse pan, tilt, and gobo indexing. $ % &' ,- ) + Full control with fine pan, tilt, and gobo indexing. Map DMX pan control to tilt channel and vice versa.
  • Page 46 > &# Decimal value of the DMX start code. The start code must be 0 for %' 6 1 the MAC 2000 Performance II to function properly. " 2 ;3 ". 2 I I & / % $ DMX value (from 0 - 255) received for each channel.
  • Page 47 Menu Item Options Notes (Default settings in bold print) !4 ! D Gobo animation wheel. Move away from optical path. >3 = H - L Gobo animation wheel. Select speed of vertical movement left. ># = L - H Gobo animation wheel. Select speed of vertical movement right. ! 0.

  • Page 48: A Djustment Submenu

    Menu Item Options Notes (Default settings in bold print) Enable pan/tilt position correction system. / &) ! 1/ / Disable pan/tilt feedback. Setting not saved. Enable on the fly reset of color, gobo, and effect wheels. & // ) 1/ / Disable on the fly reset of color, gobo, and effect wheels.

  • Page 49: Adjustment Submenu

    DJUSTMENT SUBMENU 5 ' . 3 7! " B This functions are used by Martin service technicians to adjust the fixture. This menu is located under Menu Item Options Notes #% ' Reset fixture. Strike lamp. 3= 1 0 3: / / Douse lamp.
  • Page 50 Menu Item Options Notes 0& 5 ' Move pan and tilt to neutral positions. $0 ' " Pan neutral, tilt down. Pan neutral, tilt up. $0 ' 5 $! ' . $3 ' 0 Pan left, tilt neutral. $# ' 0 Pan right, tilt neutral.

  • Page 51: Display Messages

    ISPLAY MESSAGES Message Appears when... What to do # % ' ... the fixture is indexing effects at startup. Wait for reset to complete. (Reset) Wait for reset to complete. Set ... the fixture has received a reset command from the % # %' $&...

  • Page 52: Troubleshooting

    ROUBLESHOOTING Problem Probable cause(s) Remedy Check that power is switched on and cables are No power to fixture. plugged in. One or more of the fixtures is Primary fuse blown (located near mains inlet). Disconnect fixture and replace fuse. completely dead. Secondary fuse(s) blown (located on PCB Disconnect fixture.

  • Page 53: Circuit Board Connections

    IRCUIT BOARD CONNECTIONS...

  • Page 54: Specifications Mac 2000 Performance

    PECIFICATIONS MAC 2000 P ERFORMANCE HYSICAL Length: ............... 408 mm (16.0 in) Width: .
  • Page 55 MAC 2000 Performance II in cardboard carton: ........
  • Page 56 NCLUDED ITEMS 2 x Omega bracket, 1/4-turn User manual:..............P/N 35000103 Realistic stars gobo (E size): .
  • Page 57 Disposing of this product Martin products are supplied in compliance with Directive 2002/96/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products.
