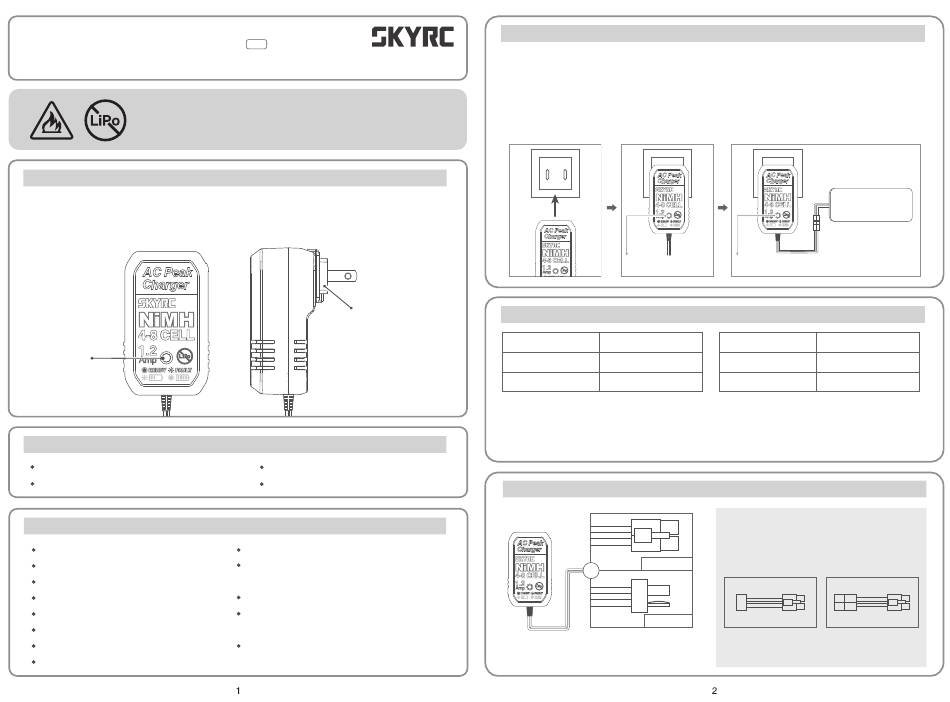

Skyrc eN18 NiMH Instruction Manual

Instruction Manual
eN18 NiMH Battery Charger
DO NOT attempt to charge LiPo batteries.
IT WILL CAUSE FIRES!
INTRODUCTION
Congratulations on your choice of SkyRC eN18 charger.

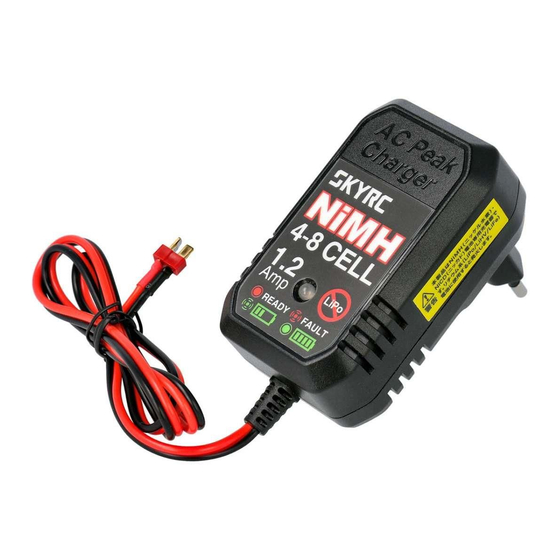

eN18 is an easy-operation charger for 4-8S NiMH battery. It will start charging
once you insert the battery. Please read the instructions carefully before using.
Status
Indicator
FEATURES
Easy operation: universal-voltage input
Short circuit protection
SPECIFICATION
Input: AC100V-240V 50/60Hz
Battery Type: NiMH
Output Voltage: 4.8V-14.4V
Output Current: 1.2A
Output Power: 18W Max.
Battery Cell: 4-8S
Output Cable Length: 70cm
Size: 85mm×50mm×54mm
V1.0
SK - 100184
Detachable
Input Converter
*The specific input converter
type refers to the actual SKU
description.
Bi-Color LED: status at a glance
Reverse polarity protection
Net Weight: 120g
Operating Temperature: 0℃-40℃
（32℉-104℉）
Relative Humidity: 5%-75%
Storage Temperature: -10℃ - 70℃
（14°F-158°F）
Storage Humidity: 5%-75%
USING THE CHARGER
1. Connect the charger to the wall socket. The LED will be steady RED, reflecting
it is on standby.
2. Connect the battery; the charger will start charging automatically with LED
flashing in GREEN.
3. When fully charged, the LED will stay in steady GREEN.
*Please disconnect the battery and the AC power source when fully charged.
LED stays in steady RED
Standby
LED STATUS EXPLANATION
LED Status Charging Status
Steady RED Standby
Flashes RED* Error
*
If the LED flashes RED, it should be that the battery is connected reversely,
over-discharged, or could not reach the specified voltage, or the battery
cells are not applicable. If you doubt that the connection is reversed,
please remove the battery immediately and check the battery polarity.
OUTPUT CONNECTOR*
Tamiya Male
or
Deans Male
* The specific connector
refers o the actual SKU
description.
NI-MH Battery
LED flashes GREEN
Charging
LED Status Charging Status
Flashes GREEN Charging
Steady GREEN Fully charged
Optional Parts
The charging cables is not included in
the package. You need to purchase
them separately.
Deans Female Tamiya Female
to Tamiya Male to Mini Tamiya Male
SK-600023-17 SK-600023-18
