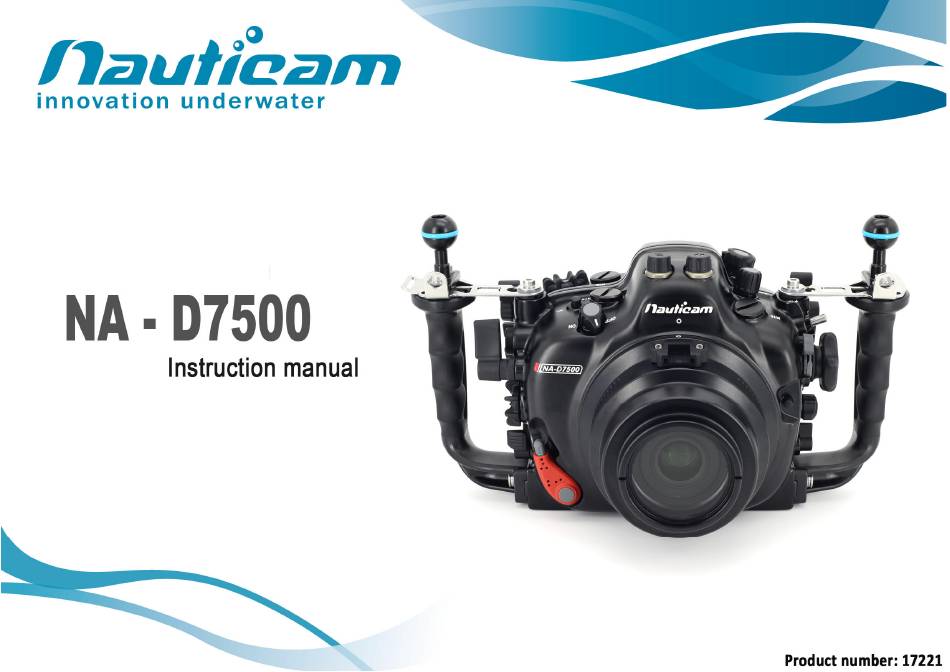

Nauticam NA-D7500 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-D7500 and is the answer not in the manual?

Questions and answers

Related Manuals for Nauticam NA-D7500

Summary of Contents for Nauticam NA-D7500

  • Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Shooting Tips …………………………………………………………………………………………………….. Mounting the Port ……………………………………………………………………………………………… Changing the Viewfinder ……………………………………………………………………………………. Care and Maintenance ……………………………………………………………………………………….

  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.

  • Page 5: Precautions

    O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage.
  • Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...

  • Page 7: Package Contents

    ACKAGE ONTENTS • NA-D7500 housing • Spare silicone rubber O-ring for housing • O-ring remover • CR2032 battery • Lubricant • Set of Allen keys • Instruction manual...

  • Page 8: Specifications

    PECIFICATIONS Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 345mm Dimensions Height: 203mm Depth: 135mm Weight Approx. 3.07kg Buoyancy Slightly negative Depth rating 100 metres Port mount N120 Compatible Nikon D7500 Camera cameras...

  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS Optical bulkhead On/off switch Port lock safety button Lens release button Port alignment index Port lock lever...
  • Page 10 Mode dial Release mode dial M5/M10 threaded hole M16 accessory port Flash up/Flash mode/Flash Info lever compensation button Zoom/ focus gear Playback lever disengagement lever Housing lock Zoom/focus knob safety button Focus mode selector AF mode lever *Handles are not displayed...
  • Page 11 M16 accessory port M14 accessory port Exposure compensation button Main command dial M5/M10 threaded hole Shutter release lever AE-L/AF-L lever ISO lever Movie-record lever Front dial Fn2 lever i lever Housing lock Housing lock safety button *Handles are not displayed...
  • Page 12 Flash down lever 0.66x viewfinder Delete button OK button Menu button Multi-selector pad WB button Lv button QUAL button Metering button Live view selector Moisture alarm window *Handles are not displayed...
  • Page 13 Sacrificial zinc anode 1/4”-20UNC tripod socket x3* *The maximum length of screws that can be used with the tripod sockets is 4mm.

  • Page 14: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing: Always open and close the housing with the front facing down, place the housing on a flat surface or in your lap. The housing can be opened and closed by operating the two housing locks; when opening, press the safety buttons, then turn the locks outwards.
  • Page 15 To lock the housing: When closing, make sure there is nothing caught between the closing surfaces of the two halves of the housing. To close, turn the locks towards the housing, and then make sure they are locked in place securely.

  • Page 16: Preparation Of The Housing

    Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 17 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out.
  • Page 18 2. Switch the alarm on. The LED 3. Test the alarm by connecting the light will flash blue once and turn two wires near the bottom of the blue for five seconds indicating housing with a damp cotton bud; the battery is normal. Then it the alarm should start giving out goes into flashing blue light a repeating “beep”...
  • Page 19 Optional vacuum valve: Vacuum valve can be attached to the housing via one of the accessory port for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status...
  • Page 20 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
  • Page 21 It is required to reset the vacuum system when the vacuum level is dropped from target level to totally lost. i.e. when opening the housing or changing port. To reset when changing port/lens: Release vacuum. Remove the port and lens from the housing and camera.

  • Page 22: Installing The Camera

    NSTALLING THE AMERA To install the camera into to the housing: 2. Pull the sliding bar on the 1. Turn the locking lever on the tray of the housing to the “open” saddle to its outward position. position as shown. Then remove the camera saddle from the housing by sliding it outwards.
  • Page 23 3. Tilt the LCD monitor of the camera 4. After ensuring AF/MF upwards, then attach the saddle activator on the sliding bar to the camera by tightening the matches the focus mode selector screw to the tripod socket of the of the camera, push the sliding camera.
  • Page 24 5. If installing the camera with 6. Mount the camera by sliding the lens and gear attached, Pull attached saddle along the rail in down the Zoom/ focus gear the housing until it cannot go in disengagement lever before any further. mounting lens (with...

  • Page 25: Shooting Tips

    Connect HOOTING By setting the “Release Button to Use Dial” function of the D7500 camera to Yes allows adjustments which are normally made by holding down a button and rotating a command dial to be made by rotating the command dial after the button is pressed and released. E.g. to change ISO, press the ISO lever once and turn the rear dial to adjust the ISO valve.

  • Page 26: Mounting The Port

    Connect OUNTING THE Please refer to the NAUTICAM system port chart for a range of compatible ports: 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove.
  • Page 27 Connect 5. Lift housing cap. 4. Turn the port locking lever to the release position as shown.
  • Page 28 Connect 6. Align the Port mounting indices 8. Lock the port into place by of the port and the housing. turning the port locking lever to the inward position. To ensure 7. Gently push the port into the that the port is securely port opening of the housing, mounted, confirm that the...

  • Page 29: Changing The Viewfinder

    Connect HANGING THE IEWFINDER In order that user can change to a preferred viewfinder easily, the 0.66x viewfinder which comes with the housing is designed so that it can be removed and re-installed by the following simple steps described below. To remove the viewfinder: Push 1.
  • Page 30 Connect To re-install the viewfinder: Lightly coat the O-rings on the outer periphery of the viewfinder body with lubricant. 2. Push the viewfinder from the 1. Align the viewfinder with the outside of the housing until it sleeve in the display window. cannot go in any further.

  • Page 31: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our...

  • Page 32: Optional Accessories

    PTIONAL CCESSORIES P.N. 25625 P.N. 32201 P.N. 32203 M16 Vacuum Valve II Nauticam 180˚ straight Nauticam 45˚ viewfinder (Pushbutton Release) viewfinder P.N. 26304 Flash trigger for Nikon (compatible with NA- D7100/D7200/D7500)
