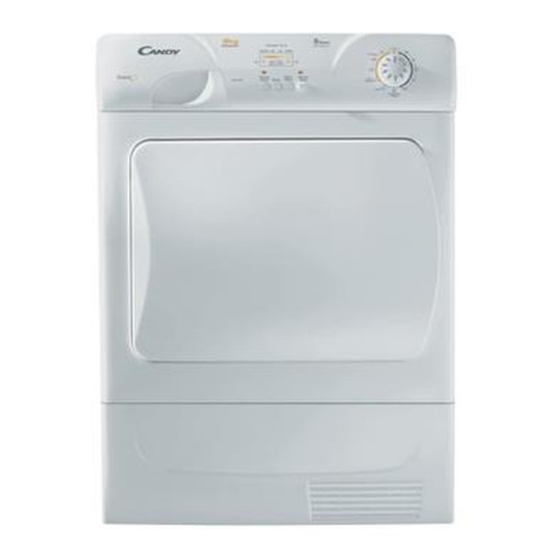

Ofrecido por www.electromanuales.com 40005051Eng.qxd 06/06/2007 10:15 Page 1 ® Instruction Book GO DC 38 Condenser Tumble Dryer English Español...
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:19 Page 3 Introduction Check that no damage has occurred to the Please read and follow these instructions carefully and operate the machine accordingly. machine during This booklet provides important guidelines for transit. If it has, safe use, installation, maintenance and some call for service by useful advice for best results when using your...
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:28 Page 4 Safety reminders Installation ● Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service. ● Do not use adapters, multiple connectors and/or extensions. ●...
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 5 tumble dryer. Clothes that are dripping wet should NOT be put into the dryer. ● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine. ●...
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 6 Installation Electrical requirements You may be charged for a Tumble dryers are supplied to operate at a service call if a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 16A. problem with Electricity can be extremely dangerous.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 7 Ventilation Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer. ●...
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 8 Preparing the load Before using the tumble dryer for the first time: ● Please read this instruction book thoroughly. ● Remove all items packed inside drum. ● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 9 Sort the load as follows: ● By care symbols These can be found on the collar or inside seam: Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 10 Drying advice Do not tumble dry: IMPORTANT: Do not dry articles Woollens, silk, delicate fabrics, nylon stockings, which have been delicate embroidery, fabrics with metallic decorations, garments with PVC or leather treated with a trimmings, training shoes, bulky items such as dry cleaning fluid sleeping bags, etc.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 12 Door and Filter Opening the door Pull on handle to open the door. To restart the dryer, close the door and press Start. WARNING! When the tumble dryer is in use the drum and door may be VERY HOT.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 13 Water Container The water removed from the laundry during the drying cycle is collected in a container at the bottom of the dryer. When the container is full the ‘Depósito Lleno’ indicator on the control panel will light, and the container MUST be emptied.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 14 Condenser Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser. To maintain the efficiency of the dryer regularly check that the condenser is clean. To remove the condenser Remove the kickplate (see page 13).
Page 15
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 15 programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:28 Page 16 Operation Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door. Gently close the door pushing it slowly until you hear the door 'click' shut.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 17 To commence the programme press Start and the WARNING! appliance will complete the drying cycle at the end of this time. The 6 or 9 hour indicator light The drum, door will flash to indicate that the start delay is in and load may be progress.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 18 Troubleshooting What might be the cause of... Defects you can remedy yourself Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.
Ofrecido por www.electromanuales.com 40005051Eng.qxd 31/05/2007 14:20 Page 19 Customer Service Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:26 Page 21 Introducción Verifique que no se hayan producido daños al Por favor lea cuidadosamente estas instrucciones y utilice la máquina según sus indicaciones. Este folleto electrodoméstico presenta directrices importantes para el seguro, la durante el instalación y el mantenimiento seguros y algunos transporte.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:26 Page 22 Instalación ● Verifique que el producto no muestre daños visibles antes de usarlo. En caso de presentar algún daño, no lo use y póngase en contacto con el Servicio técnico de GIAS. ●...
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 23 prendas que escurren agua NO deben introducirse en la secadora. ● Deben sacarse de los bolsillos encendedores y cerillas y no se deben NUNCA usar líquidos inflamables cerca de la máquina. ● No se deben introducir NUNCA cortinas de fibra de vidrio en esta máquina.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 24 Instalación Requisitos eléctricos Es posible que se le Las secadoras están preparadas para funcionar con un cobre una llamada voltaje monofásico de 230 V, a 50 Hz. Verifique que el al servicio técnico circuito de suministro tenga una corriente nominal de al si el problema con menos 16 A.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 25 Ventilación Debe asegurarse una ventilación adecuada en la sala donde esté ubicada la secadora para evitar que los gases de aparatos que quemen otros combustibles, incluyendo llamas abiertas, entren en la sala cuando se está...
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 26 Preparación del material para secar Antes de usar por primera vez la secadora: ● Por favor lea con atención las instrucciones de este manual. ● Retire todos los artículos que haya guardado en el interior del tambor.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 27 Clasifique la carga de la siguiente manera: ● Según los símbolos de cuidado Se encuentran en el cuello o en la costura interior: Apropiado para secadora. Usar secadora a alta temperatura. Usar secadora solamente a baja temperatura. No secar en secadora.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 28 Consejos para el secado No secar en secadora: IMPORTANTE: No usar la secadora Prendas de lana, seda, telas delicadas, medias de nylon, para artículos que bordados delicados, tela con adornos metálicos, prendas con guarniciones de PVC o de cuero, zapatillas de se hayan tratado deporte, piezas voluminosas como sacos de dormir, etc.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:31 Page 29 Controles e indicadores INDICADOR DE PANTALLA COUNTDOWN MANTENIMIENTO DEL FILTRO BOTÓN ON/OFF (MARCHA/ PARADA) INDICADOR BOTÓN BOTÓN BOTÓN INICIO SELECTOR DE DEPÓSITO DELICADOS/ START DIFERIDO PROGRAMA LLENO SINTÉTICOS (INICIO) Panel de control y luces de aviso Selector de programa –...
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 30 Puerta y filtro Modo de abrir la puerta Tire de la palanca para abrir la puerta. Para poner la secadora en marcha nuevamente, cierre la puerta y presione Start. ¡AVISO! Cuando la secadora está en uso, puede que el tambor y la puerta SE CALIENTEN MUCHO.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 31 Depósito del agua El agua que se saca de la ropa durante el ciclo de secado se recoge en un recipiente que se encuentra en el fondo de la secadora. Cuando el depósito está lleno, se ilumina el indicador 'Depósito Lleno' del panel de control, y, SIN FALTA, hay que vaciar el depósito.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 32 Condensador IMPORTANTE: Antes de limpiar el condensador, siempre debe apagar el suministro de electricidad y sacar el enchufe del tomacorriente. Para que la secadora siga funcionando de modo eficiente, revise el condensador periódicamente para constatar si está...
Page 33
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 33 humedad, utilice los programas de duración controlada. Ajuste el programa entre 30 y 75 minutos según la cantidad de piezas que se quiere secar y el grado de secado requerido, y seleccione temperatura alta o baja, dependiendo del tipo de tela. Si el sensor no detecta la pieza, la secadora sólo funcionará...
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 34 Funcionamiento Abra la puerta e introduzca la ropa en el tambor, cuidando de que aquélla no estorbe al cerrar la puerta. Cierre la puerta suavemente, empujándola lentamente hasta que oiga un ruido de 'clic'.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 35 Para comenzar el programa, presione Start y el electrodoméstico completará el ciclo de secado al final ¡AVISO! de este tiempo. La luz del indicador de 6 o 9 horas El tambor, la parpadeará...
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 36 Resolución de problemas Causa posible de ... Defectos que puede solucionar usted mismo Antes de llamar al Servicio técnico de GIAS para obtener asesoramiento técnico, lea detenidamente la siguiente lista de comprobación. Se cobrará el servicio técnico si resulta que la máquina funciona correctamente, o si ha sido instalada o utilizada incorrectamente.
Ofrecido por www.electromanuales.com 40005051Spa.qxd 31/05/2007 15:27 Page 37 Servicio de atención al cliente Si después de revisar todos los aspectos recomendados persistiera algún problema con la secadora, llame al Servicio técnico de GIAS para obtener asesoría. Es posible que le puedan asesorar por teléfono o bien convenir una hora apropiada para que le visite un ingeniero bajo los términos de la garantía.
