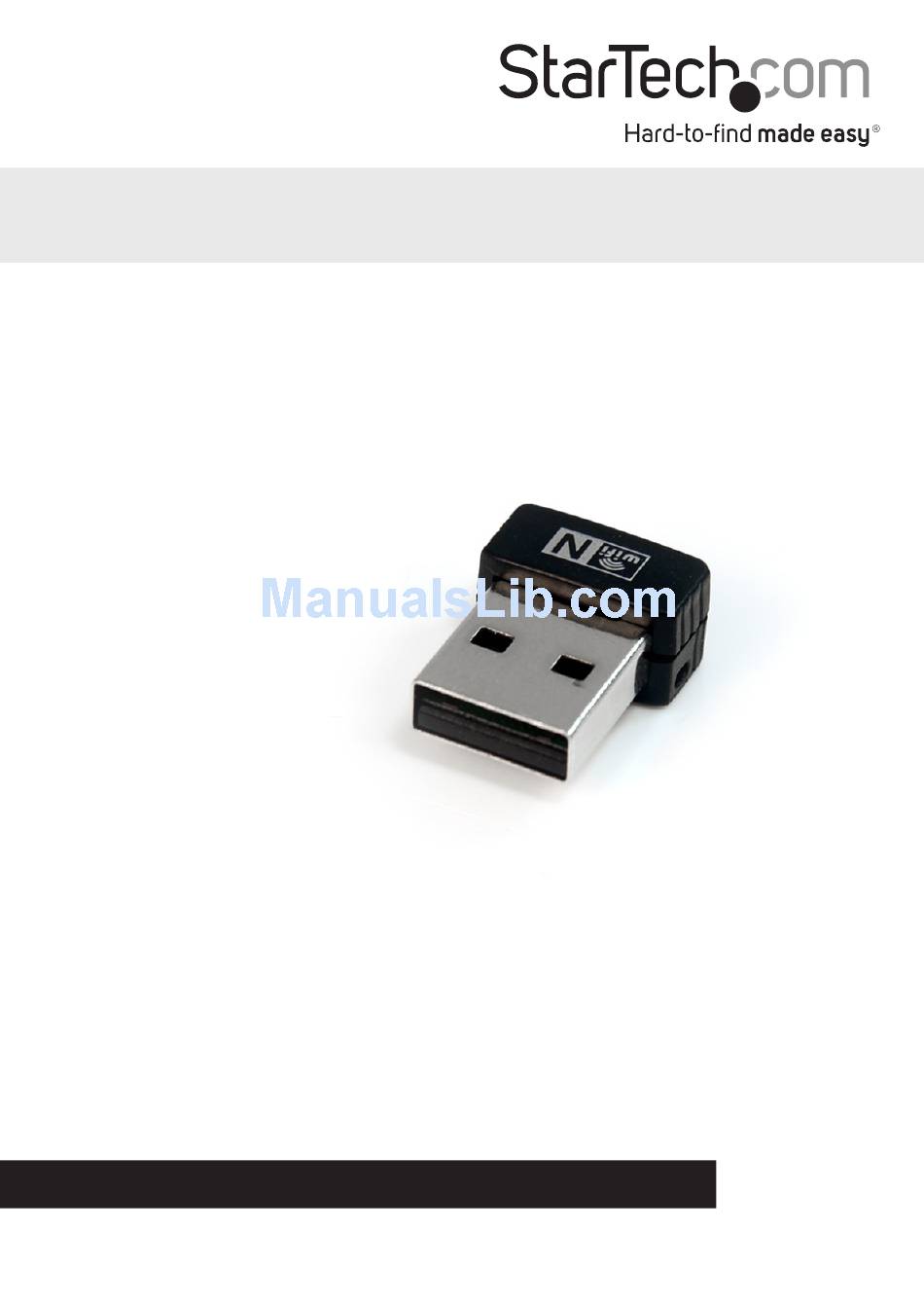

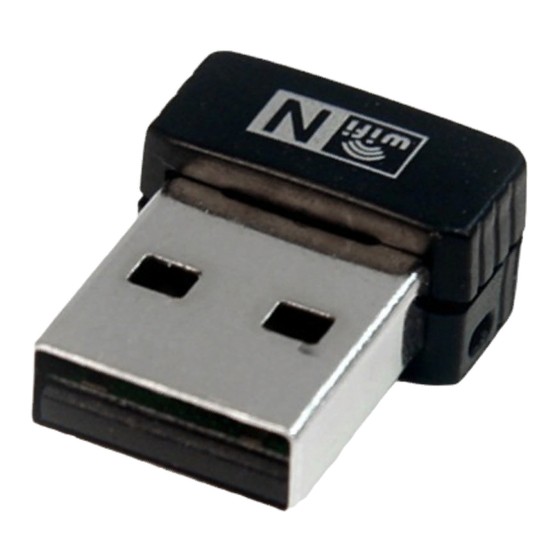

USB 2.0 to IEEE 802.11N 150Mbps
Mini Wireless Network Adapter - 1T1R
USB150WN1X1
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/15/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com USB150WN1X1
Summary of Contents for StarTech.com USB150WN1X1
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/15/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Driver Installation ............................2 How to Use ....................4 Wireless LAN Utility ..........................4 Wi-Fi Protected Setup (WPS) ..............5 Push Button Configuration ........................5 PIN Input Configuration .......................... 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7... -
Page 4: Introduction
WEP, WPA, as well as wireless Quality of Service (QoS) support, and quick and easy setup through WPS, this USB 2.0 adapter is backed by StarTech.com’s 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first- time setup option. -
Page 5: Installation
Installation Driver Installation NOTE: Install the drivers/software before plugging in the USB adapter. Windows 2000/XP/Server 2003 1. Upon starting Windows, before plugging in the wireless adapter, insert the included Driver CD into the computer’s CD/DVD drive. 2. AutoPlay should automatically launch the Driver/Software installation splash screen. If not, open “My Computer”... - Page 6 Windows Vista/7/Server 2008 R2 1. Upon starting Windows, before plugging in the wireless adapter, insert the included Driver CD into the computer’s CD/DVD drive. 2. AutoPlay should automatically launch the Driver/ Software installation splash screen or prompt you to run Setup.exe. If not, open “Computer” open the CD/DVD drive the disk is inserted into and double- click the file Setup.exe 3.
-
Page 7: How To Use
How to Use Wireless LAN Utility The optional Realtek Wireless LAN Utility can be used to replace or supplement the Windows wireless configuration utility. All features of the Windows utility are available, in addition to more detailed statistics and advanced features such as Wi-Fi Protected Setup (WPS). -
Page 8: Wi-Fi Protected Setup (Wps)
Wi-Fi Protected Setup (WPS) WPS is an easy way for anyone to automatically setup a secure wireless network on a Windows-based computer. A WPS compatible wireless access point (AP) is required. There are two methods of setting up WPS. Push Button Configuration 1. -
Page 9: Specifications
Specifications Host Interface USB 2.0 Chipset ID Realtek RTL8188CU Connectors 1 x USB type A male LEDs Antenna Configuration (TxR:S) 1x1:1 Wireless Frequency 2.4 GHz Supported Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Supported Security Protocols WEP, WPA, WPA2, TKIP/AES Maximum Data Transfer Rate 150 Mbps Operating Temperature... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
