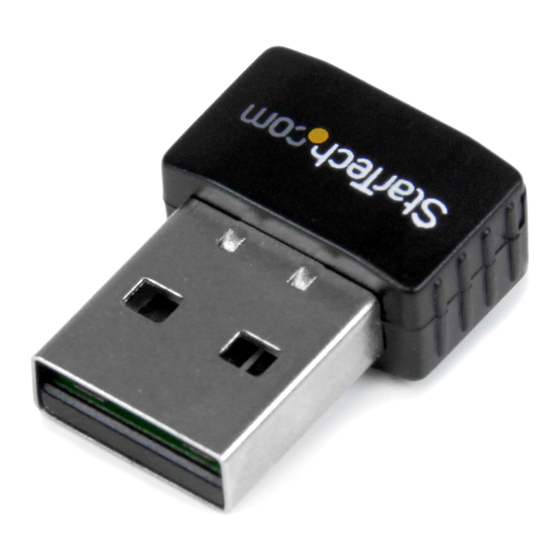

USB 2.0 802.11b/g/n 300Mbps 2T2R
Mini Wireless Network Adapter
USB300WN2X2C
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/05/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USB300WN2X2C
Summary of Contents for StarTech.com USB300WN2X2C
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/05/2014...
-
Page 2: Fcc Compliance Statement
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment Industry Canada Statement This Class B digital apparatus complies with Canadian ICES-003. - Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 4: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................1 LED Indicator .............................. 1 Installation ....................2 Windows ............................... 2 Mac OS ................................3 Veriftying Installation................3 Windows ............................... 3 Mac OS ................................4 Operation ....................4 Windows ............................... -
Page 5: Introduction
Introduction Packaging Contents • 1 x USB Wireless N Adapter • 1 x Driver CD • 1 x Instruction Manual System Requirements • Available USB port • Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), Windows Server® 2012, 2008 R2, 2003(32/64 ), Mac OS® 10.6 and up (Tested up to 10.9), Linux kernel 2.6.18 –... -
Page 6: Installation
Installation Windows 1. Insert the provided CD into your DVD/CD-ROM drive. 2. Select Autorun.exe from the Autoplay menu. If Autoplay is disabled on your system, browse to your CD/DVD drive and run the application. 3. Select the Driver Installation option. Instruction Manual... -
Page 7: Mac Os
4. Follow the on-screen instructions to complete the installation. NOTE: You may be prompted to restart once the install completes. 5. Connect the device to an available USB port. Mac OS 1. Insert the provided CD into your DVD/CD-ROM drive. 2. -
Page 8: Mac Os
Mac OS 1. Open the System Report by clicking the Apple symbol in the top left corner, selecting About this Mac, then select System Report. 2. Expand the “Hardware” section and click “USB” in the left column. With the adapter connected, you should see the following device in the list. -
Page 9: Realtek Utility
Realtek Utility Tray Icon The tray icon will display one of the following three statuses: Utility running, but no WLAN WLAN adapter detected, not WLAN adapter detected and adapter detected connected to a wireless network connected to a network Client Mode Click on the tray icon to open the configuration window. - Page 10 Signal Strength – Strength of the link between the adapter and the connected AP. Link Quality – Measurement of transmit / receive performance over the radio. Renew IP button – Refresh IP settings between the adapter and the connected AP Profile Tab Add, Remove, Edit, Duplicate or Set Default wireless profiles.
- Page 11 Refresh – Rescan for available networks. Add to Profile – Select a network from the list and click to create a profile for that network. Status Tab Add, Remove, Edit, Duplicate or Set Default wireless profiles. Statistics Tab Displays connection transmit / receive statistics. Reset –...
-
Page 12: Access Point Mode
WPS Setup Tab Allows for WPS PIN code and Push Button activation. Access Point Mode The device can also act as a Wireless Access Point, allowing other devices to connect and gain Internet access through it. Switch modes using the Mode menu at the top of the interface: Instruction Manual... - Page 13 General Tab Displays general information about the device in AP mode and a list of joined APs. SSID - The network name of this AP. BSSID - The MAC address of this AP. Association Table Displays the list of joined stations to this AP. AID (Association ID) –...
- Page 14 Network Name (SSID) - The network name of the AP, searchable by other wireless nodes. The length of SSID should be shorter than 32 characters. Channel - Select your preferred wireless channel. Network Authentication & Data Encryption – Choose your desired Authentication type and Encryption method from: Open System, Shared Key + WEP, WPA-PSK + TKIP &...
- Page 15 Advanced Tab Provides advanced configuration options for the AP. Beacon Interval – The frequency at which the beacon packet is sent, In TU unit (1024 micro-seconds). DTIM Period - The number of Beacon intervals between successive DTIMs. Preamble Mode: Long - Higher quality but with lower performance than preamble short mode. Short - Normal quality but with higher performance then preamble long mode.
-
Page 16: Mac Os
Statistics Tab Displays connection transmit / receive statistics. Mac OS Realtek Utility Open the WLAN Dual Band Utility from the Applications folder. The following sections outline the tabs in the utility and what they contain. Use the Available Network tab to connect to a wireless network within range of the adapter. - Page 17 Link Status Tab Displays information related to the currently connected network. Signal Strength – Strength of the link between the adapter and the connected AP. Radio Off – Disable the wireless radio. Profiles Tab Add, Remove, Edit, Duplicate or Set Default wireless profiles. Instruction Manual...
- Page 18 Available Networks Tab Displays a site survey of networks within range of the adapter Advanced Settings Tab Provides advanced configuration options for the device. Preamble Mode: Long - Higher quality but with lower performance than preamble short mode. Short - Normal quality but with higher performance then preamble long mode. Auto - Select the proper preamble mode by current signal frame information.
-
Page 19: Information Tab
WPS Tab Allows for WPS PIN code or Push-button modes. Information Tab Displays utility and driver version information. Instruction Manual... -
Page 20: Specifications
Specifications Host Interface USB 2.0 Chipset Realtek - RTL8192EU External Connectors 1 x USB A Male Supported Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Antenna Configuration 2x2:2 (TxR:S) Wireless Frequencies 2.400GHz ~ 2.484GHz Supported Security Schemes 64/128 bit WEP, WPA, WPA2 (TKIP/AES) Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature... -
Page 21: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 22 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
