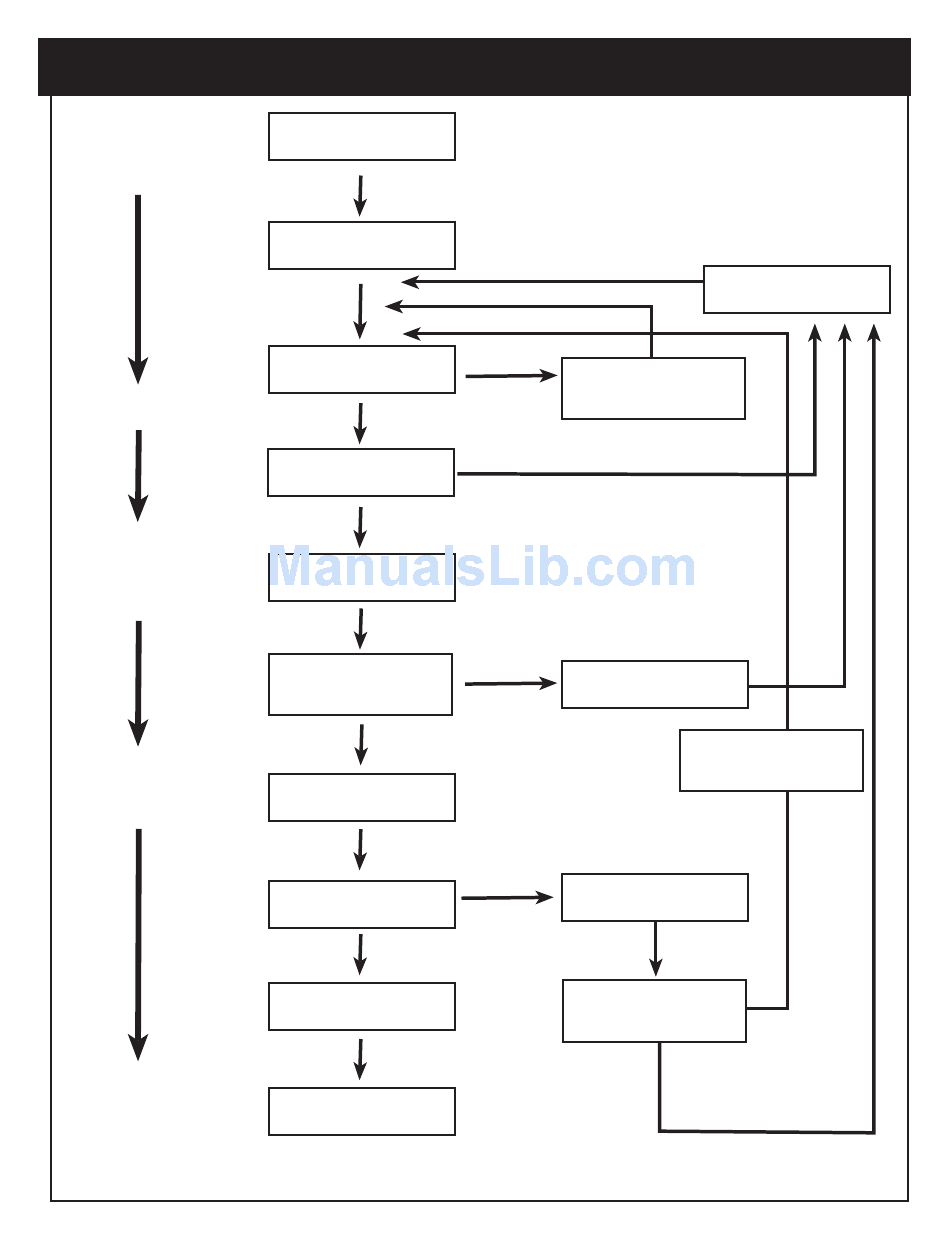

DVC-35IP INTERMITTENT PILOT SEQUENCE OF OPERATION

START
System Check
Trial for
Ignition
Main Burner
Operation
END
(1) Ignitor will turn OFF about 30 seconds into the trial for ignition if the pilot flame has not lit. It will turn back ON for the final 30 seeonds
of the 90 second trial for ignition. The pilot valve will be energized during the entire trial for ignition. This is normal operation for this gas
ignition system.
12430-3-0903
SEQUENCE OF OPERATION
Apply 24 VAC
to Appliance
Thermostat
Calls for Heat
Flame Signal
Detected
NO
Internal Check
OK
YES
• Pilot Valve Opens
• Ignitor Powered
Pilot Light and Flame is
Sensed During Trial
For Ignition (1)
YES
• Ignitor OFF
• Main Valve Opens
Flame Signal
Lost?
NO
Thermostat Call
for Heat Ends
Main Pilot Valves
Close
YES
• Pilot Valve Ignition OFF
• Wait for Flame Signal to
Disappear
NO
NO
• Pilot Valve Closes
• Ignition OFF
YES
Main Pilot
Valves Close
Flame Lost More
Than 5 Times in
One Call for Heat
5 Minute Retry
Delay
3 Second Flame
Failure Recycle
Delay
NO
YES
Page 17
