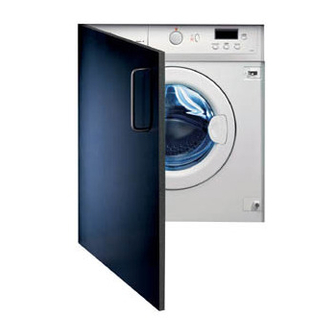

USER MANUAL FOR YOUR BAUMATIC BTWM5/BTWM6 Fully integrated washing Machine You will be mine NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference. -
Page 3: Table Of Contents
Unpacking and removing the transit bolts 29 - 30 Positioning and levelling the appliance Connecting to the mains water supply Water outlet Fitting the furniture door Power supply Before first use maintenance wash Baumatic Ltd. conditions of guarantee Contact details... -
Page 4: Environmental Note
Environmental note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorized service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your washing machine. - Page 6 This appliance is only designed to wash normal domestic washloads. If you use your washing machine in any other way or it is incorrectly used, then Baumatic accepts no liability for any damage that might be caused and any guarantee will be void.
-
Page 7: Specifications
Specifications 15 wash programs 6kg wash load 1100 rpm maximum spin speed (BTWM5) 1300 rpm maximum spin speed (BTWM6) LCD display Delay start timer with remain time indicator 3 Option buttons: Easy iron Extra rinse Intensive wash Unbalance control system... -
Page 8: Description Of The Appliance
Description of the appliance... -
Page 9: Control Panel
Control panel Wash program selection knob This control knob allows you to select the wash program of your choice. To activate it you should press in the program selection knob, to pop out the control. Start/Stop button Once a wash program has been selected, this button should be pressed to start the wash cycle. -
Page 10: Program Options
LCD display Wash program phases: o Prewash o Wash o Rinse o Spin and drain Spin speed. Program number (for a few seconds) and then program duration. Program options: o Easy iron o Extra rinse o Intensive wash... -
Page 11: Detergent Drawer
Detergent drawer Pre wash section This compartment should have detergent placed in, if you are going to select a wash program that has a pre wash as part of it. Main wash section This compartment should have detergent placed in it (you should also put a water softening agent in this section, if you use one). -
Page 12: Preparing The Wash Cycle
Preparing the wash cycle Preparing your garments for washing o Your washing should be sorted out, according to the fabric type and the wash care symbol that is printed on the garment’s wash care label. (see separate section on wash care symbols). o Your washing should also be sorted out according to the degree of soiling. -
Page 13: A Selection Of Wash Care Symbols
A selection of wash care symbols o The wash care symbols should be used to help you to select the most suitable wash program. They will also help you to sort your laundry into different loads, depending on the fabric type and the highest temperature which the garment can be washed at. -
Page 14: Detergents And Conditioners
Detergents and conditioners The amount of detergent that you need to use in your appliance, will depend on o The degree of soiling. Lightly soiled garments in general require less detergent. o The size of the wash load. A smaller wash load will require a reduction in the amount of detergent. -
Page 15: Program Table
15 15... -
Page 16: Wash Program Guidance
NOTE: the KWh and litre consumptions and program durations may vary depending on the type and amount of clothes being washed, your mains water pressure, etc. (*) Program for wash and energy consumption assessment, in accordance with standard EN60456 (press intensive wash button). Wash program guidance o A particular program option can only be selected if the program table advises that it is possible with the wash cycle you have... -
Page 17: Selecting A Wash Program
Selecting a wash program Load your laundry and put detergent in the relevant compartment of the soap drawer. Close the porthole door firmly. Activate the pop out program selector knob by depressing it. Select the most appropriate wash program for the garments that you are washing, by turning t program selector knob. -
Page 18: Cancelling Or Pausing A Wash Program
o The active phases will appear at the top of the display, as the wash program progresses. The time remaining until the end of the program will update throughout the wash cycle. Please note that it does not count down in “real time”. o Any program option can be selected once the wash cycle is already in progress, providing that the stage in the wash cycle that the option will effect has not already passed. -
Page 19: Delay Start Feature
Delay start feature Your appliance has a delay start feature, which allows you to pause the start of a wash cycle until a later time. Follow the process listed under “Selecting a wash program” Before pressing the START/STOP button, you should select the length of time that you want to delay the wash program... -
Page 20: Spin Reduction Button
Spin reduction button Your washing machine will automatically select an appropriate spin speed for each wash program. However it is possible to decrease the spin speed that it automatically selects, by pressing the spin reduction button. Turn the wash program selection knob to the wash program that you want to use. -
Page 21: Setting A Program Option
o This feature is useful if you are not going to be present when the wash cycle completes, as it will lessen the chance of the garments becoming creased. Please note that if you suspend the clothes in water, you must select a spin or drain program and not just cancel the program. -
Page 22: Child Lock
o Any program option can be selected once the wash cycle is already in progress, providing that the stage in the wash cycle that the option will effect has not already been passed. (E.g. you cannot select an intensive wash, once the machine has reached the rinse stage of the wash cycle). -
Page 23: Maintenance And Cleaning
Maintenance and cleaning In daily use Once a wash cycle has completed, you should pull out the detergent drawer slightly, so it can dry out. Leave the porthole door ajar for a short while after a wash cycle has completed. This should help to prevent stagnant smells and to protect the door seal. -
Page 24: Detergent Drawer
o Use warm water and a brush to thoroughly clean the three compartments of the detergent drawer. o Clean the area that the detergent drawer slides into with a brush. o You should also clean the siphon that sits inside of the conditioner section of the detergent drawer. -
Page 25: Error Code Failure System
See General troubleshooting section. F05 – F10- Contact Baumatic Service Department Once the machine has been plugged back into your mains power supply, to clear the fault code from the LCD display, you should turn on the machine and hold down the Start/Stop button for approximately 5 seconds. -
Page 26: General Troubleshooting
IF AN ENGINEER ATTENDS DURING THE GUARANTEE PERIOD AND FINDS THAT A FAULT HAS BEEN CAUSED BY AN ITEM ON THE ERROR CODE LIST, WHICH COULD HAVE BEEN CLEARED BY THE CUSTOMER. THEN YOU MAY BE LIABLE FOR THE COST OF THE SERVICE CALL. General troubleshooting Water under the washing machine o Tighten the drain pump filter. -
Page 27: Poor Wash Results
Poor wash results My garments are looking grey and there are limescale deposits present in the drum of my washing machine. o There is not enough detergent being added. o The incorrect detergent is being used. o Stains are not being pre-treated. o The correct wash program or wash temperature was not selected. -
Page 28: Cleaning The Drain Pump Filter
Cleaning the drain pump filter IMPORTANT: Switch off your washing machine and disconnect the plug from your mains supply. You should clean out the filter approximately every twenty washes. If the drain pump filter is not cleaned regularly, then your appliance may find it difficult to pump out water efficiently. -
Page 29: Installation
Installation IMPORTANT: THIS INSTALLATION MUST BE COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION THE INSTALLATION GIVEN IN THIS INSTRUCTION MANUAL. YOU SHOULD KEEP THE TRANSIT PACKAGING, IN CASE YOU NEED TO TRANSPORT THE MACHINE IN THE FUTURE. - Page 30 Locate the three transit bolts that secure the drum in position, whilst the appliance is being transported. Using a screwdriver, unscrew the three plastic transit bolt covers. Loosen and remove the three transit bolts. Using a screwdriver, refit he three plastic transit olt covers that you emoved previously.
-
Page 31: Positioning And Levelling The Appliance
Positioning and leveling the appliance Place the washing machine on a solid and level floor surface. DO NOT PLACE THE WASHING MACHINE ON A CARPET. Loosen the adjustable feet that are positioned on the base of the appliance. Slacken off the lock nut on each of the washing machine feet using a spanner. -
Page 32: Connecting To The Mains Water Supply
The inlet hose may leak if this filter is missing. This filter is supplied with the appliance, you should contact Baumatic to obtain one, if it is missing. Tighten the inlet hose to your mains supply fully, but do not over tighten as this may distort the filter that sits in the end of the inlet hose. -
Page 33: Water Outlet
Water outlet Secure the drain hose, so that it cannot move whilst the washing machine is in use. Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. IMPORTANT: Do not insert the drain hose too deeply into the water pipe, as this may cause siphoning. -
Page 34: Power Supply
Power supply IMPORTANT: As your appliance is a built in product, the electrical socket must still be accessible once the appliance is installed. Consult the rating plate, located on the inner rim of the porthole door of the appliance BEFORE making the electrical connections. -
Page 35: Before First Use Maintenance Wash
fore first use maintenance wash When your washing machine has been correctly installed, we recommend that you perform a maintenance wash cycle. This wil l check that all aspects of the installation are correct; it will also remove any deposits that may have been left on t drum by the manufacturing process. -
Page 36: Baumatic Ltd. Conditions Of Guarantee
Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 37: Contact Details
