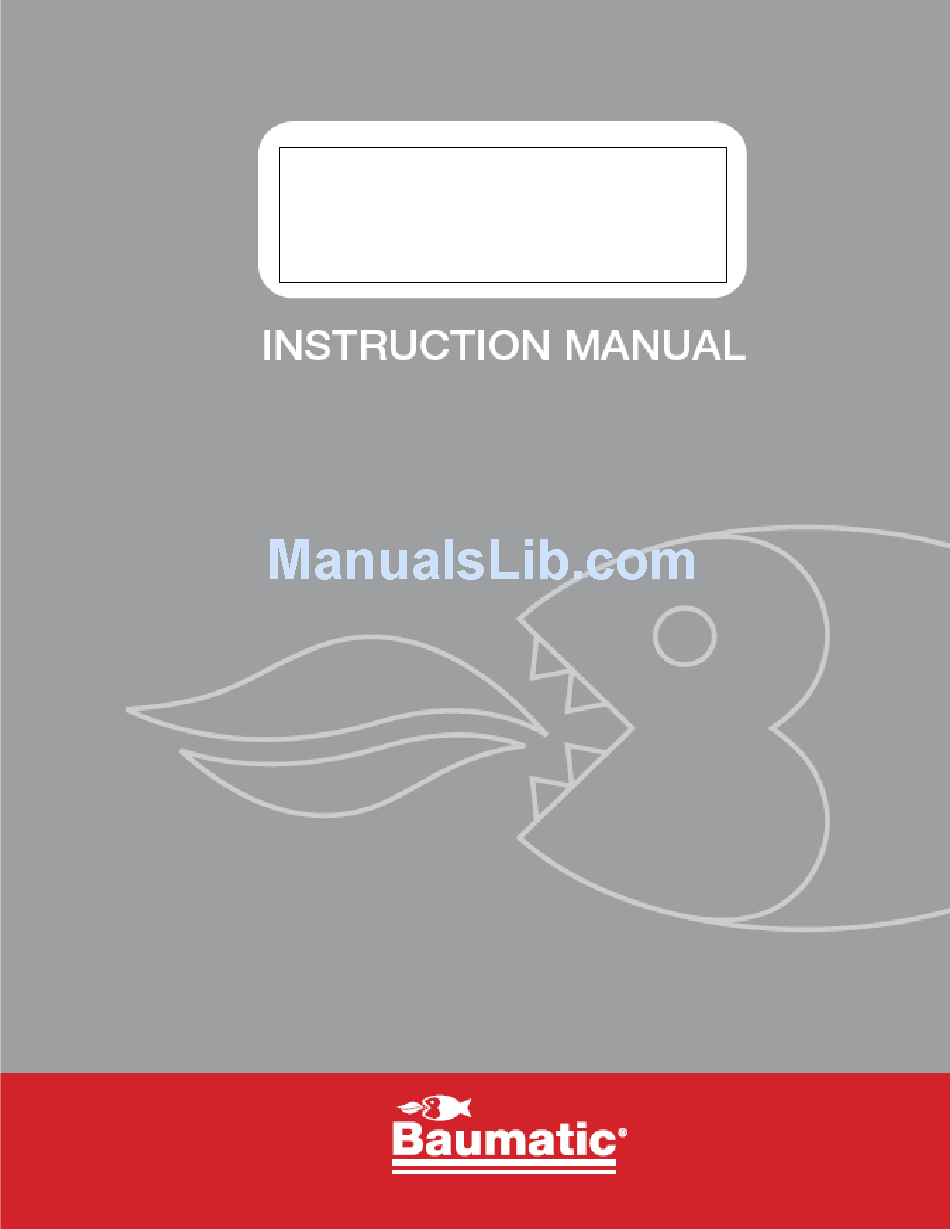

- Page 1 BFWM1206BL 60 cm 6 kg Freestanding washing machine...
-
Page 2: Washing Machine
USER MANUAL FOR YOUR BAUMATIC BFWM1206BL 60 cm 6 kg Freestanding washing machine NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;... -
Page 3: Table Of Contents
Locating your washing machine Connecting to the mains water supply Connecting to the water outlet Levelling the appliance Power supply 30 - 31 Before first use maintenance wash Error code failure system General troubleshooting 33 – 34 Baumatic consumables Technical data Contact details... -
Page 4: Environmental Note
Environmental not o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your washing machine. - Page 6 If you use either dyes or bleaching agents inside this machine, then you should consult with the manufacturer of these products to make sure they are suitable for use in your washing machine. Baumatic cannot be held responsible for any damage that may result. Child Safety o Your washing machine should only be used by adults.
-
Page 7: Specifications
Specifications o 15 wash programs o 6 kg wash load o 1200 rpm maximum spin speed o Electronic control operation o Wash phase indicator o Delay start o 180° door opening o Stainless steel drum o Overflow protection o Plastic tub o Easy-Iron function o Adjustable feet o Child lock... -
Page 8: Description Of The Appliance
Description of the appliance Accessories... -
Page 9: Control Panel
Control panel 1) additional functions for your washing cycle: Economy: Reduces energy and water consumption – to be used with smaller loads only. Easy-Iron: Reduces the creases of clothes during a wash cycle by not executing the last drain – until the start/pause button is pressed. -
Page 10: Program Selections Dial
Program selection dial NOTE: The symbol means that the water is cold (not heated). -
Page 11: Detergent Drawer
Detergent drawer Main wash section This compartment should have detergent placed in it (you should also put a water softening agent in this section, if you use one). The detergent will be added to the drum at the start of the main wash program. -
Page 12: Preparing The Wash Cycle
Preparing the wash cycle Preparing your garments for washing o Your washing should be sorted out, according to the fabric type and the wash care symbol that is printed on the garment’s wash care label (see separate section on wash care symbols). o Your washing should also be sorted out according to the degree of soiling. -
Page 13: A Selection Of Wash Care Symbols
A selection of wash care symbols Washing Normal Normal Boiling Do not Wool Do not Bleachable temp temp temp bleach! seal wash! in cold 60°C 40°C 95°C water cleaning Hand Benzine All but TRI Do not Delicate Delicate wash only clean! temp temp... - Page 14 Liquid detergent If you are using liquid detergent, then in the majority of cases the liquid should be placed inside the dosing device supplied by the detergent manufacturer and placed inside the drum. All instructions on the detergent packaging should be followed. Low temperatures o The enzymes in biological washing detergents work best at low temperatures to provide excellent cleaning and stain removal...
-
Page 15: Wash Program Table
Wash program table Available optional functions Default Operation Wash load Rinse Temp. spin Time Easy- Program size times Delay Rinse+ Economy speed (mins) Iron (Kg) Cotton cold 1000 √ √ √ √ cotton 30℃ 30℃ 1000 √ √ √ √ *cotton 40℃... -
Page 16: Wash Program Guidance
Wash program guidance o A wash program option, such as Economy or Easy-Iron can only be selected if the program table advises that it is possible with the wash cycle you have selected (see page 10 or 15 for details) o Important: You should make sure that the selected spin speed is appropriate for the garments that you are washing. -
Page 17: Pausing A Wash Program
Pausing a wash program o If you want to pause a wash program temporarily, you should press the start/pause button (3). o When you want to restart the wash cycle, press the start/pause (3) button again. Delay start feature Your appliance has a delay start feature, which allows you to delay the start of a wash cycle until a later time. -
Page 18: Easy-Iron Function
Easy-Iron function o The Easy-Iron function means that the machine will not execute the last drain of the wash cycle – until the start/pause button is pressed. o This means that the laundry will sit in the water until you are ready to remove it for drying, preventing it from developing creases. -
Page 19: Maintenance And Cleaning
Maintenance and cleaning In daily use o Once a wash cycle has completed, you should pull out the detergent drawer slightly, so it can dry out. o Leave the porthole door ajar for a short while after a wash cycle has completed. -
Page 20: The Washing Machine Drum
o Detergent can also accumulate inside detergent drawer recess, so you should also clean this out using warm soapy water and a soft cloth. o Once you have finished cleaning the detergent drawer and recess, you should slide the drawer back into its original position. -
Page 21: Cleaning The Drain Pump Filter
Cleaning the drain pump filter IMPORTANT: Switch off your washing machine and disconnect the plug from your mains supply. You should clean out the filter approximately every ten washes. If the drain pump filter is not cleaned regularly, then your appliance may find it difficult to pump out water efficiently. -
Page 22: Cleaning The Water Inlet Filter
Cleaning the water inlet filter o Clean the filter approximately every 6 months, when water leaks from the water inlet, or if there are frequent interruptions to your water supply. o Always pull the power plug out before cleaning. 1) Use long-nose pliers to remove the water inlet filter 2) Clean carefully with a gauze brush and then replace. -
Page 23: Removing Stains
Removing stains Garments that are covered in stains, grease or are heavily soiled may need to be pre-washed or soaked before being placed inside of the washing machine. o Soaking helps to remove protein-type stains, like blood, milk or grass. o Pre-washing helps to loosen soil before the main wash. - Page 24 Tomato Scrape the dried pieces without ruining the material, then paste leave in cold water for about 30 minutes and wash by rubbing with detergent. Meat broth/ Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub with detergent and wash with diluted lye.
-
Page 25: Poor Wash Results
Poor wash results My garments are looking grey and there are limescale deposits present in the drum of my washing machine. o There is not enough detergent being added. o The incorrect detergent is being used. o Stains are not being pre-treated. o The correct wash program or wash temperature was not selected. -
Page 26: Installation
Installation IMPORTANT: THIS INSTALLATION MUST COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION THE INSTALLATION GIVEN THIS INSTRUCTION MANUAL. SHOULD KEEP THE TRANSIT PACKAGING, IN CASE YOU NEED TO TRANSPORT THE MACHINE IN THE FUTURE. Removing the transit bolts... -
Page 27: Locating Your Washing Machine
Locating your washing machine o Before commencing installation, check the location where you intend to install the appliance. You should make sure that you have everything in place that is necessary for the correct installation. o Do not place or store your washing machine in a location where the ambient temperature could fall below 0°C, otherwise the water in it could freeze. -
Page 28: Connecting To The Mains Water Supply
Connecting to the mains water supply IMPORTANT: The washing machine should never be connected to the water mains using an existing inlet hose, YOU MUST utilise the inlet hose that is provided with the appliance. Your appliance should only be connected to a cold water supply. 1) Take out the attached inlet hose. -
Page 29: Connecting To The Water Outlet
Connecting to the water outlet 1) Please use an elbow / “U” piece (provided) to bend the drain hose at a proper angle and fix securely. 1) The correct position of the drain hose is one which will prevent any water leaking onto the floor or other surfaces. -
Page 30: Levelling The Appliance
Levelling the appliance o Place the washing machine on a solid and level floor surface. DO NOT PLACE THE WASHING MACHINE ON A CARPET OR A SUSPENDED FLOOR. o If the floor is obviously uneven, the appliance needs to be adjusted to prevent the drum from inclining or the machine from moving while in use. -
Page 31: Before First Use Maintenance Wash
The moulded plug that is supplied with the appliance must be placed into an earthed and insulated socket. Broken or damaged power leads must only be replaced by a suitably qualified person. A power lead of a similar type must be used in replacement. -
Page 32: Error Code Failure System
You should turn the washing machine off, disconnect the appliance from your mains supply, and then arrange for an engineer to attend the appliance. You should contact Baumatic Customer Care Department on (0118) 933 6911. ENGINEER ATTENDS... -
Page 33: General Troubleshooting
General troubleshooting Problem Possible solutions The washing machine Close the washing machine’s door. does not work. Confirm and press the start button. The control panel might be locked – see the “Child lock” section and try unlocking the control panel. Water leakage. - Page 34 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 35: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 36: Technical Data
Technical Data Manufacturer BAUMATIC LTD Model Number BFWM1206BL Rated Capacity of Standard Cotton 6 kg Program Energy Efficiency Class Annual Energy Consumption (1) 177 kWh Energy Consumption of the Standard 0.79 kWh 60°C Cotton Program at Full Load Energy Consumption of the Standard 0.76 kWh... -
Page 37: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic Buildings, Baumatic CR s.r.o. 6 Bennet Road, Lípová 665 Reading, Berkshire 460 01 Liberec 4 RG2 0QX Czech Republic United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax...
