Scart Connection - JVC RX-DV5RSL Instructions Manual

Getting Started
Turn off all the components and the unit before connection.

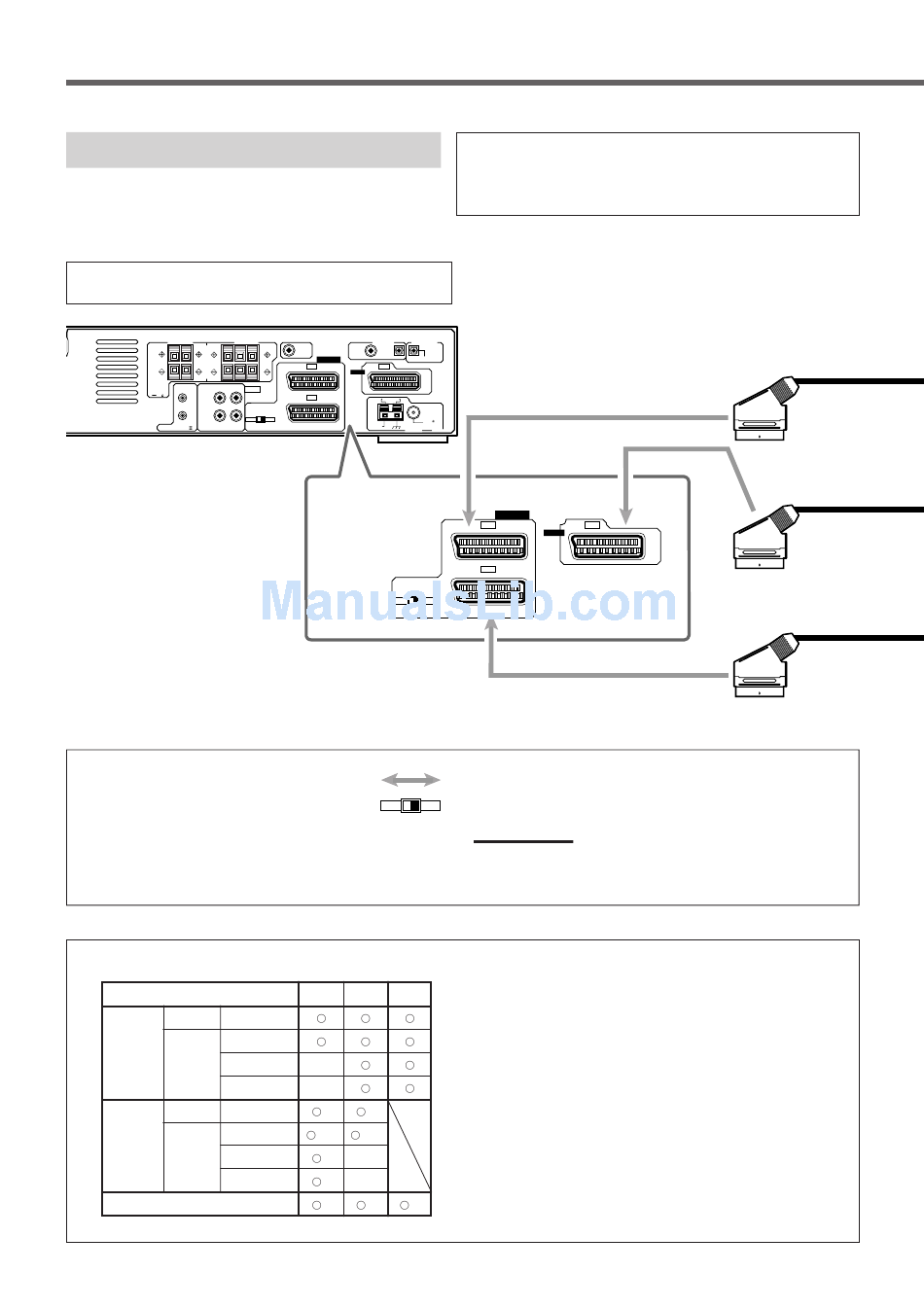

I SCART connection
DO NOT connect a TV through a VCR or a TV with a built-in
VCR; otherwise, the picture may be distorted.
RIGHT LEFT RIGHT
FRONT CENTER
SPEAKERS SPEAKER
CAUTION:
SPEAKER TAPE / CDR
IMPEDANCE
8 16
LEFT
RIGHT
OUT IN
AV COMPU LINK- (REC) (PLAY)
Setting the RGB/YC selector
Set the RGB/YC selector as follows while the unit is
turned off:
• When the TV is compatible with RGB signal, set to "RGB."
• When the TV is compatible with S-video signal, set to "YC."
• When the TV is compatible with composite video signal only, set
to "RGB."
SCART Terminal Specifications
AUDIO
Composite
IN
VIDEO S-video
AUDIO
Composite
OUT
VIDEO S-video
T-V LINK
9
DIGITAL IN DIGITAL OUT
LEFT
REAR SUB-
SPEAKERS
WOOFER
DIGITAL 1 DIGITAL 2
OUT
(STB) (TV)
AV IN/OUT
VCR STB
AV IN
AUDIO
TV
AM LOOP
RGB YC
AM EXT
ANTENNA
RGB/YC selector
RGB
RGB
TV VCR STB
L/R
−
−
RGB
L/R
* *
1 1
* * * *
1 2 1 2
−
*
2
−
RGB
*
2
* * *
3 3 3
Illustrations of the input/output terminals below are typical
examples. When you connect other components, refer also to
their manuals since the terminal names actually printed on the
rear vary among the components.
PCM/STREAM
FM 75
COAXIAL
AV IN/OUT
VCR STB
AV IN
TV
YC
YC
Note:
• If you change the RGB/YC selector setting while the unit is turned
on, this setting will not take effect until the unit is turned off.
*1 The signals input from a SCART terminal cannot be output
through the same SCART terminal.
*2 The video format of the output video signals are consistent
with that of the input video signals. For example, if S-video
signals are input to this unit, no signals other than S-video
signals can be output from this unit.
Refer to the manuals supplied with the video components to
check the setting of the input/output video signals.
*3 The signals for T-V LINK function are always going through
the unit.
