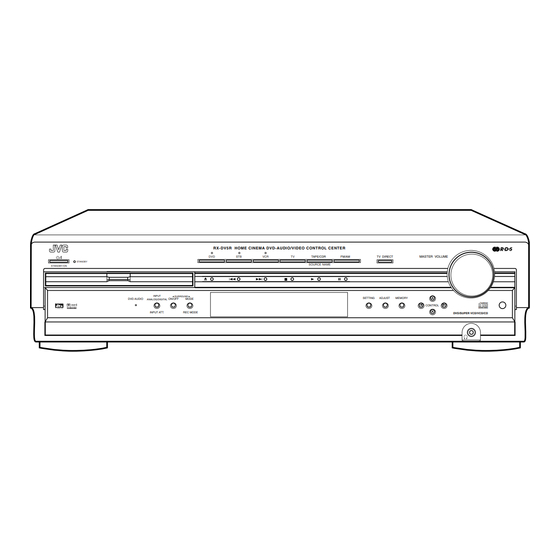

HOME CINEMA DVD-AUDIO/VIDEO CONTROL CENTER
RX-DV5RSL
HOME CINEMA
DVD-AUDIO/VIDEO CONTROL CENTER
STANDBY/ON
STB
VCR
TV
AUDIO
TV
TAPE
CDR
FM/AM
TV DIRECT
STB
VCR
DVD
TV/VIDEO
REW/
(
TUNING/GROUP
9
/FF
REPEAT
SLEEP
FM MODE
STROBE
TV/STB CH
EFFECT
CENTER
CONTROL
1
2
3
ANALOG
/DIGITAL
TEST
REAR·L
INPUT
4
5
6
AUDIO
SURR ON/OFF
REAR·R
7
8
9
SUBTITLE
SURR MODE
– SUBWOOFER +
10/0
+10
VFP
100+
TV RETURN
PROGRESSIVE
DIMMER
ANGLE
+
+
PAGE
TV VOL
VOLUME
MUTING
ZOOM
–
–
TA/NEWS/INFO
DIGEST
TOP MENU
MENU
(
9
PTY
PTY SEARCH
PTY
CHOICE
ENTER
ON SCREEN
RETURN
DISPLAY
REMOTE CONTROL RM-SRXDV5R
STANDBY
STANDBY/ON
INPUT
SURROUND
DVD AUDIO
ON/OFF
MODE
ANALOG/DIGITAL
INPUT ATT.
REC MODE
INSTRUCTIONS
RX-DV5R HOME CINEMA DVD-AUDIO/VIDEO CONTROL CENTER
DVD
STB
VCR
TV
TAPE/CDR
FM/AM
SOURCE NAME
SETTING
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
MASTER VOLUME
TV DIRECT
ADJUST
MEMORY
COMPACT
CONTROL
SUPER VIDEO
DVD/SUPER VCD/VCD/CD
LVT0876-003A
[B]
