Summary of Contents for Digi-Sense Type K

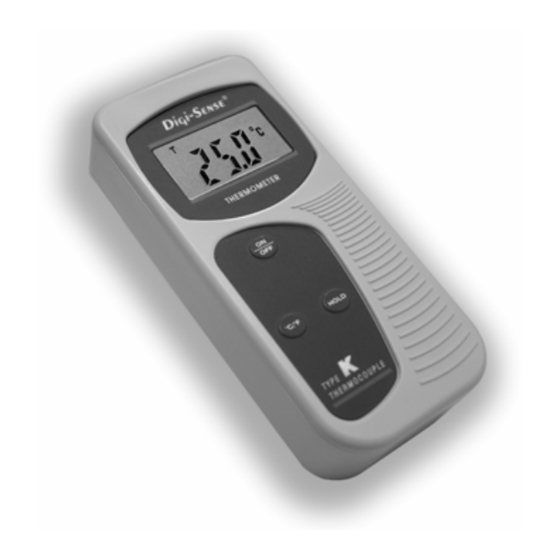

- Page 1 Instruction Manual Type K Thermocouple Thermometer 68X243624 Rev. 0 02/04 Technology Made Easy ...
- Page 2 This manual is written to cover as many anticipated applications of the Type K meter as possible. If there are doubts in the use of the Type K meter, do not hesitate to contact the nearest Eutech Instruments/ Oakton Instruments Authorized Distributor.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION 2. GETTING STARTED 2.1 Description of Keypad Functions 2.2 Description of LCD Annunciators 2.3 Inserting & Removing the Rubber Boot / Stand (Optional Purchase) 2.4 Inserting New Batteries 2.5 Battery Replacement 2.6 Connecting the Temperature Sensor 2.7 Switching the Meter On 3. -
Page 4: Introduction
Included with your meter are 4 alkaline “AAA” batteries and an instruction manual. To order Type K thermocouple probes, please refer to Section on Accessories for more information. -
Page 5: Getting Started
Increase the calibration value during Figure 1: Keypad the calibration mode. 2.2 Description of LCD Annunciators The Digi-Sense Type K meter has a large custom LCD that consists of 4-digit segments and operation annunciators for C and F. Other indicators include “HO”... -
Page 6: Inserting & Removing The Rubber Boot / Stand (Optional Purchase)
Instruction Manual Type K Thermocouple Thermometer 2.3 Inserting & Removing the Rubber Boot / Stand (Optional Purchase) 1. To remove meter from rubber boot, push out from the bottom edges of meter until it is completely out of boot. Ensure that the connector of temperature sensor is not connected. -
Page 7: Battery Replacement
Instruction Manual Type K Thermocouple Thermometer 2.5 Battery Replacement A “LO” annunciator in the LCD alerts you when battery power is running low. Replace with the same type as recommended by the manufacturer. Figure 5: Low battery indicator Caution: Power off the meter when changing battery. -
Page 8: Calibration
Instruction Manual Type K Thermocouple Thermometer 3. CALIBRATION 3.1 Temperature Calibration With meter off, Hold down °C/°F key and Your meter is factory calibrated. The meter press ON/OFF allows you to enter a 1-point calibration as fine power on the meter. - Page 9 Instruction Manual Type K Thermocouple Thermometer To confirm value, wait for 5 seconds without any key press. The “CO” display appears signifying conformation and meter goes back to the measurement mode. To abort calibration, press ON/OFF key to power off the meter.
-
Page 10: Measurement
Instruction Manual Type K Thermocouple Thermometer 4. MEASUREMENT 4.1 Taking Measurements 1. The meter automatically enters Temperature mode when powered on. The “K” annunciator will be displayed. ° 2. The C or F annunciator displayed in your LCD indicates which mode you are taking measurements in. -
Page 11: Probe Care And Maintenance
LCD a) Low battery a) Replace batteries with fresh ones. “LO” annunicator in the LCD a) Wrong thermocouple Verify that Type K probe is used. Inaccurate probe type used readings Check time constant of probe & b) Reading has not... -
Page 12: Specifications
Instruction Manual Type K Thermocouple Thermometer 7. SPECIFICATIONS Temperature Range -250 to 1372 °C (-418 to 2501 °F) Type K Resolution t<-99.0 °C 1 °C (1 °F) -99.9 °C<t<299.9 °C 0.1 °C (0.1 °F) t>299.9 °C 1 °C (1 °F) Accuracy t<-99.9 °C... -
Page 13: Accessories
5-ft coiled cable. Type K penetration probe (meat, semi-soft EC-TPPENK-01M 08516-65 materials), 5-ft coiled cable. Type K surface probe (direct contact on EC-TPSURK-01M 08516-60 hot surface, no liquids), 5-ft coiled cable. Type K alligator clip-on surface probe, 2”,... -
Page 14: Warranty
Instruction Manual Type K Thermocouple Thermometer 9. WARRANTY This meter is supplied with a warranty against significant deviations in material and workmanship for a period of THREE years from date of purchase. If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return –... -
Page 15: Return Of Items
Instruction Manual Type K Thermocouple Thermometer 10. RETURN OF ITEMS Authorization must be obtained from our Customer Service Department or authorized distributor before returning items for any reason. A “Return Goods Authorization” (RGA) form is available through our authorized distributor. Please include data regarding the reason the items are to be returned. - Page 16 For more information on Eutech Instruments/ Oakton Instruments’ products, contact your nearest distributor or visit our website listed below: Oakton Instruments Eutech Instruments Pte Ltd. Distributed by: P.O Box 5136, Blk 55, Ayer Rajah Crescent, Vernon Hills, IL 60061, USA #04-16/24 Singapore 139949 Tel: (1) 888-462-5866 Tel: (65) 6778 6876...
