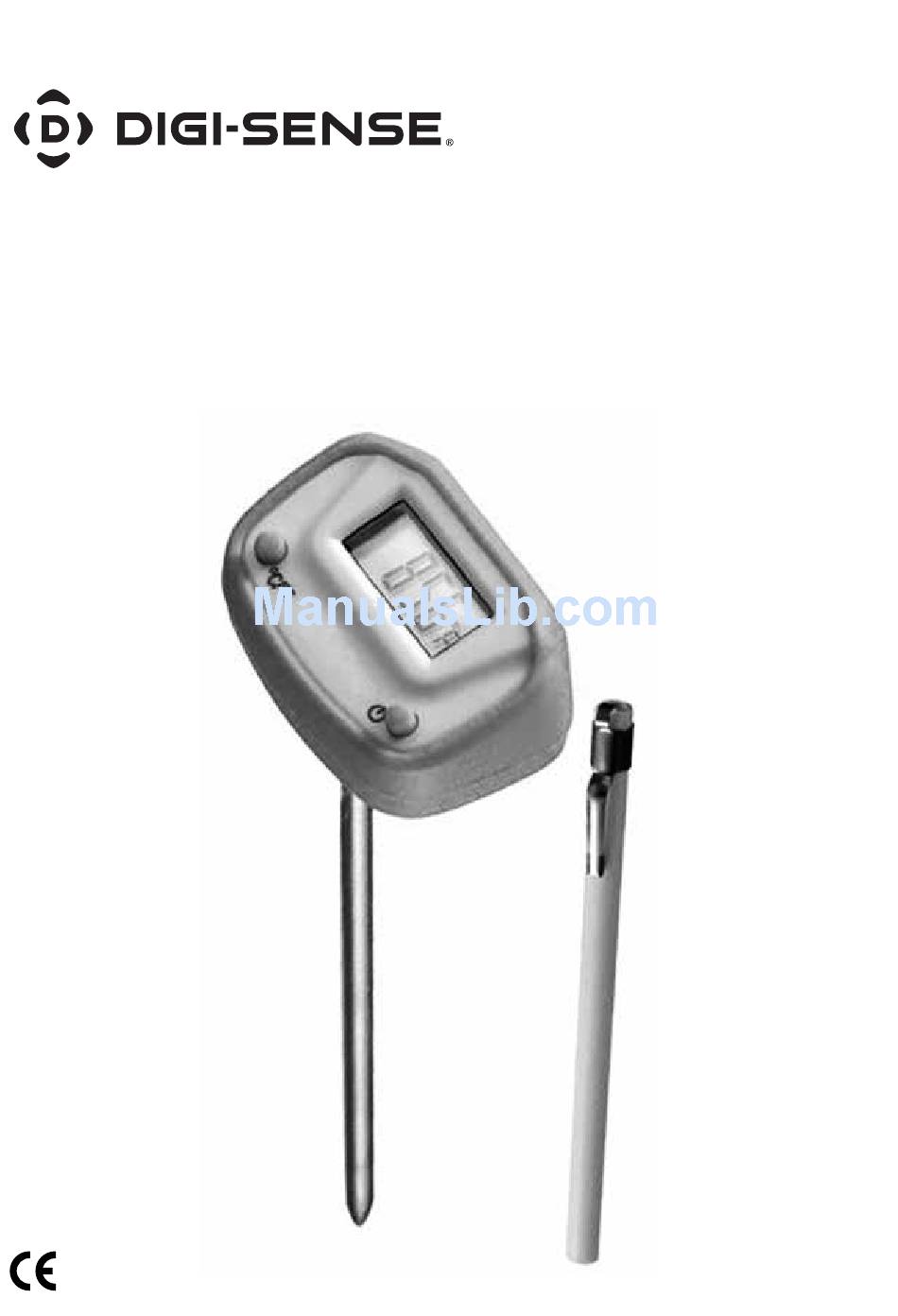

- Page 1 User Manual Digital Pocket Thermometer with NIST-Traceable Calibration Model 20250-32 THE STANDARD IN PRECISION MEASUREMENT...
-
Page 3: Key Features

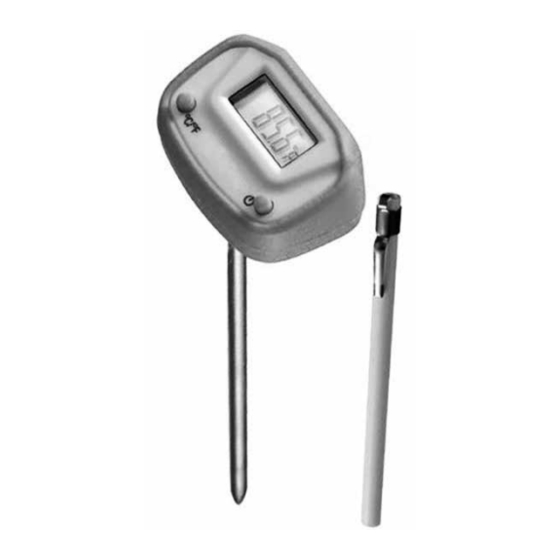

Introduction The Digi-Sense Large-Head Pocket Thermometer (Model 20250-32) offers fast response and laboratory accuracy with 0.1°F (0.1°C) resolution over the entire measurement range. Advanced features include °C/°F unit selection and automatic power-off. The instrument is fully tested and calibrated to NIST-traceable standards. Careful use of this meter will provide years of reliable service. -
Page 4: Meter Description
Meter Description 1. Protective cover 2. Temperature probe 3. LCD 4. °C/°F button 5. Power ON/OFF button... -
Page 5: Setup And Operation
Setup and Operation Power 1. Remove the thermometer from the protective sleeve. 2. Press the Power on/off button to activate. Taking Measurements Insert the stem of the thermometer at least ⁄ " into the testing area. Note: When the thermometer is initially powered on, the LCD will display “- 0.0 °C”... -
Page 6: Specifications
Specifications Full usable range: –40 to 482°F (–40 to 250°C) Temperature range NIST certified range: 32 to 482°F (0 to 150°C) Resolution 0.1°F (0.1°C) Accuracy 1.5% ±4°F (±2°C) full scale Display Response time 20 seconds Unit shuts off automatically after 20 minutes Auto power-off to preserve battery life Weight... - Page 8 It is recommended that Digi-Sense products are calibrated annually to ensure proper function and accurate measure- ments; however, your quality system or regulatory body may require more frequent calibrations. For Product and Ordering Information, Contact: 1065DGMAN_20250-32 Rev.1 Manual Part No. 00100-63...
