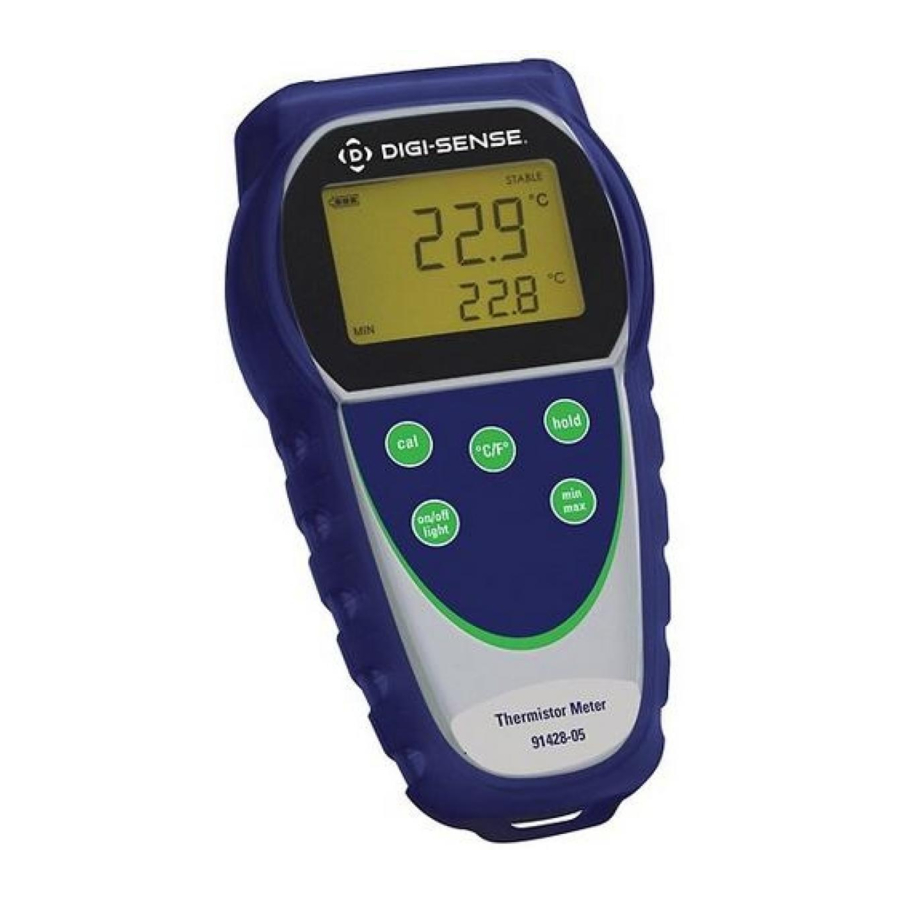

- Page 1 Instruction Manual Single-Input Single-Input Thermocouple Thermocouple Thermometers Type J, K, T Thermometers Type J, K, T 68X001351 Rev0 0717 1065DGMAN_91428-00,-01,-02 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ........1 2. SAFETY PRECAUTIONS ....... 2 3. SPECIFICATIONS ........3 4. BATTERY INSTALLATION AND REPLACEMENT ......5 5. INSERTING AND REMOVING RUBBER ARMOR ........6 6. ASSEMBLING OPTIONAL HANDS-FREE ACCESORIES ....7 7. SELF TEST ..........8 8. -
Page 3: Introduction
INTRODUCTION This versatile handheld instrument provides highly accurate temperature measurements. The instrument is designed for easy operation and includes the following features: Operator selection of Celsius or Fahrenheit scale Resolution of 0.1°C/F from –199.9 to 999.9° Large backlit LCD with two lines of four-digit display Hold feature for temporarily retaining a reading... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING: This instrument is designed to accept low level signals supplied by standard thermocouples. Under NO circumstances should the input voltage exceed the specified 50V RMS. To prevent ignition of a hazardous atmosphere, batteries must only be changed in an area known to be nonhazardous. -
Page 5: Specifications
SPECIFICATIONS Thermocouple Thermometers Type Temperature range –210°C to 1200°C Type J (–346°F to 2192°F) –250°C to 1372°C Type K (–418°F to 2501°F) –250°C to 400°C Type T (–418°F to 752°F) Out-of-range display: - - - - Resolution: 0.1°/1° auto-ranging, 0.1°C/F from –199.9 to 999.9°, 1°C/F outside this range... - Page 6 Display update rate: 0.5 sec per update Input: One thermocouple with ANSI connector Input protection: 50V rms Storage: –40°C to 65°C (–40°F to 149°F) Humidity: 10% to 90% RH (noncondensing) Battery life: Size: Three AA, 1.5V; alkaline Life: 750 hours continuous, typical, (without backlighting) Dimensions: Without armor:...
-
Page 7: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT The total battery life without backlighting is about 750 hours. Each bar of the battery annunciator represents 200 hours. A blinking empty battery annunciator indicates 150 hours remaining. Selected settings are stored in memory and will remain in memory even after power is turned off, or while batteries are being replaced. -
Page 8: Inserting And Removing Rubber Armor
INSERTING AND REMOVING RUBBER ARMOR 1. To insert thermometer into the optional rubber armor, slide in from the top of meter before pushing the bottom edges of meter down to set it into position. Lift up the stand at the back of meter for bench top applications if necessary. -
Page 9: Assembling Optional Hands-Free Accesories
ASSEMBLING OPTIONAL HANDS-FREE ACCESORIES You can use the optional magnets and strap in the Hands-Free Kit accessories for hands-free operations. - 7 – GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 10: Self Test
SELF TEST Press the on/off key. The meter performs a self-test and all display digits and indicators, should remain on for approximately one second. The thermometer will then display the thermocouple type and resume to the measurement mode. CONNECTING A THERMOCOUPLE Use the correct thermocouple type for your instrument. - Page 11 Thermocouple wiring polarity must be correct. If readings decrease as the temperature increases, the thermocouple wires may be reversed. The red wire is negative for thermocouple wires manufactured in North America. - 9 – GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 12: Key Functions
KEY FUNCTIONS Toggle between Celsius or °C/°F Fahrenheit. Activates Calibration mode offset calibration 0°C (after field calibration enabled). Activates/deactivates freezing of the measured hold reading while in measurement mode. Activates/deactivates display of the minimum and maximum readings. Powers on and shuts off the thermometer by holding it for 3 seconds. -
Page 13: Display Overview
10. DISPLAY OVERVIEW Celsius or Fahrenheit indicator. °C/°F Minimum reading annunciator. Maximum reading annunciator. 3 Bars : < 750 hours 2 Bars : < 550 hours 1 Bar : < 350 hours Blinking: < 150 hours Blinks during calibration mode. Remains in display indicating field calibration is active. -
Page 14: Selecting Temperature Scale
If a thermocouple is not connected or if the thermocouple is defective, the display will indicate “OPEn”. Thermocouples are sensitive at the tip or measuring junction. When taking measurements, allow time for the reading to stabilize. Multiplying the time constant of the probe by 5 will give you the approximate time required. -
Page 15: Min And Max Function
13. MIN AND MAX FUNCTION Press the min/max key to toggle between the minimum and maximum readings. This function is ideal for monitoring unattended operations while continually displaying every temperature change that occurs. The minimum and maximum values are sensed and automatically stored. -
Page 16: Canceling A Field Calibration
improve thermometer/probe accuracy or to compensate for thermocouple drift. 1. Pack sensing end of probe in a container tightly packed with crushed ice and filled with distilled water. Allow temperature to stabilize. 2. Press and hold the cal key for 3 seconds to enter the calibration mode, the CAL annunciator on the display starts blinking. -
Page 17: Field Calibration Lockout And Re-Enable
17. FIELD CALIBRATION LOCKOUT AND RE-ENABLE The calibration lockout feature prevents any field calibration changes. The lockout remains in effect until a lockout re-enable has been performed. Use the following procedures to lockout or re- enable the field calibration operation. LOCKOUT PROCEDURE 1. -
Page 18: Maintenance
18. MAINTENANCE Properly used, the thermometer should maintain calibration indefinitely and not require service other than occasional cleaning of the housing and changing of the batteries. 19. CLEANING WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE BY ELECTROSTATIC DISCHARGE, CLEAN WITH DAMP CLOTH. Do not clean with abrasives or solvents. -
Page 19: Troubleshooting
21. TROUBLESHOOTING The following chart lists the most probable faults. There are no internal adjustments or user-replaceable parts. FAULT ACTION Check condition of batteries. Check that batteries are Display inserted properly. Display shows Out of range indication. - - - - Display Shows No thermocouple connected in... -
Page 20: Accessories
22. ACCESSORIES Digi-Sense Replacement Meters Type J 91428-00 Type K 91428-01 Type T 91428-02 Accessory Thermocouple Probes Cole-Parmer offers a wide variety of thermocouple probes, wire, connectors, extension cables, switch boxes, accessories, and calibration services. General-purpose probes, 5 in. long x 0.156 in. - Page 21 Surface probes, 10 in. long with 5/8 in. dia aluminium and ceramic tip. 6-second time constant. Type J 08517-60 Type K 08516-60 Type T 08500-60 Air/gas probes, 8.5 in. long sheath with 1/4 in. dia radiant heat shield. 45-second time constant.
-
Page 22: Warranty
23. WARRANTY The Manufacturer warrants this product to be free from significant deviations from published specifications for a period of three years. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer. -
Page 23: Innocal Calibration And Repair Services
® 25. INNOCAL CALIBRATION AND REPAIR SERVICES Optimum performance of your temperature-measuring instrument is not a timeless condition. To ensure quality measurements, have your instrument calibrated regularly. Trust ® InnoCal to satisfy your calibration and equipment repair needs. With over a decade of service, we've helped thousands of customers meet ISO, FDA, EPA, GLPs/cGMPs and other... - Page 24 Reliable Support Trust in our free diagnostic support and troubleshooting advice. Our factory- trained metrologists and technicians are armed with years of experience and extensive technical data. Convenient Reminders It’s so easy to keep your instruments functioning properly. Based on your requirements, InnoCal will send you a reminder when it’s time to re-certify or service your instrument.
- Page 25 With today's high quality standards such as ISO 9000, certification is becoming increasingly important. Traceability is not a timeless condition. It must be verified and maintained over the life of the calibration to ensure the highest accuracy possible. When you have your calibration done by InnoCal, we will send you an automatic reminder when it is time to recalibrate your instrument.
- Page 26 Calibration test points System against Meter Probe (meter + NIST- only only probe)* traceable standards Four test points across range of instrument. Meters: –270 to 2316°C (–454 to 4200°F); 17000-10 17001-10 17002-10 Probes & Systems: –80 to 1000°C (–112 to 1832°F).
