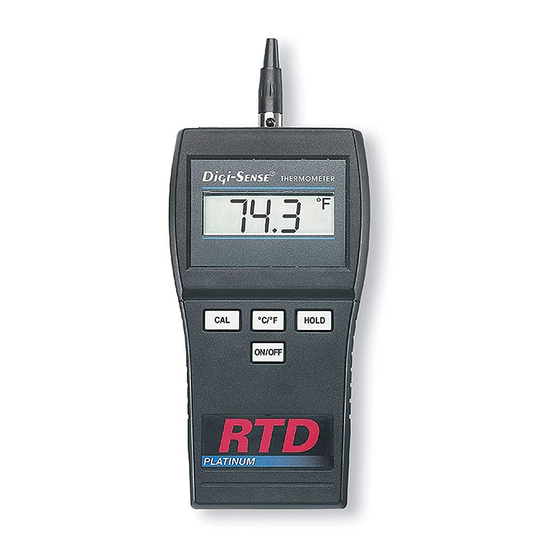

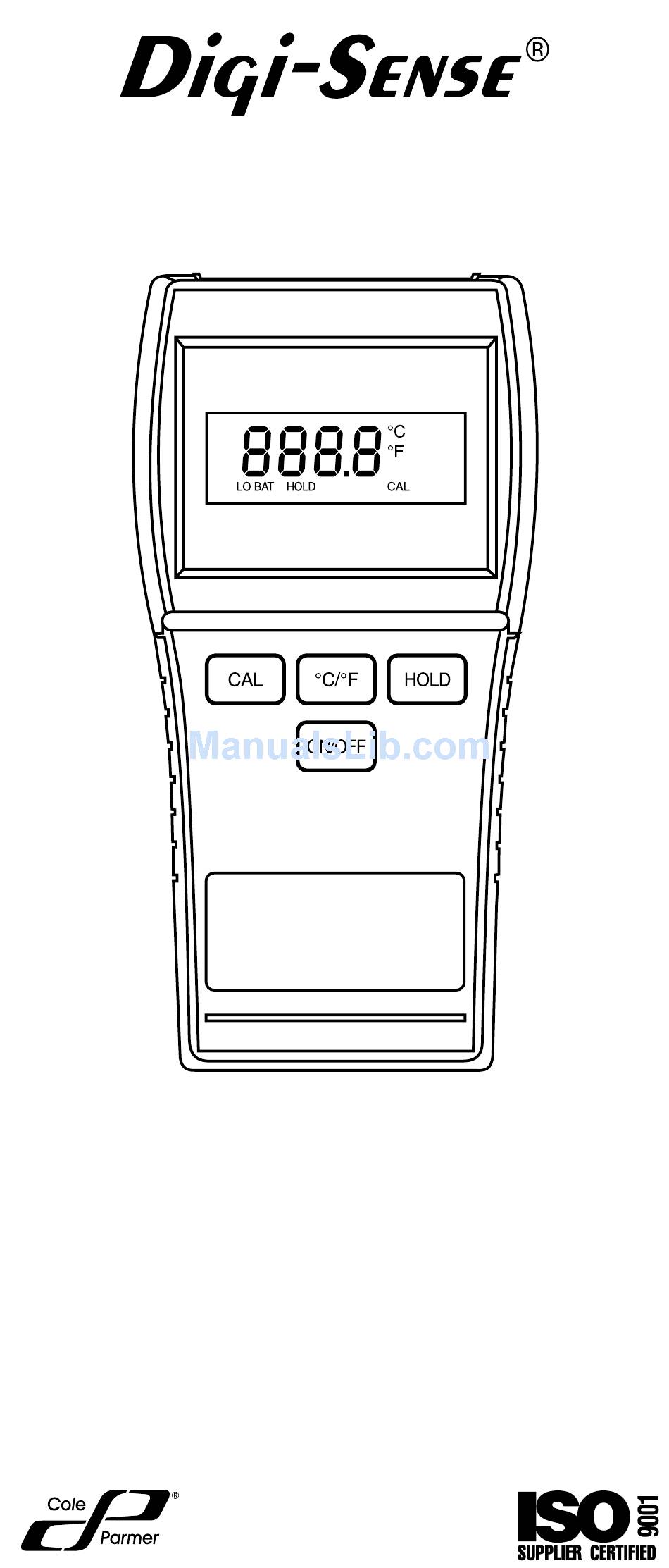

- Page 1 Platinum RTD Thermometer MODEL NO. 93410-00 Cole-Parmer Instrument Co. 625 East Bunker Court Vernon Hills, Illinois U.S.A. 60061-1844 (847) 549-7600 (847) 247-2929 (Fax) 800-323-4340 www.coleparmer.com e-mail: techinfo@coleparmer.com A-1299-0864 Edition 01...
-
Page 2: Certificate Of Conformance
CERTIFICATE OF CONFORMANCE This thermometer was calibrated using equipment traceable to the National Insti- tute of Standards and Technology (NIST). This instrument conforms to DIN IEC 751 revised to ITS-90. The accuracy of the thermometer at the time of calibration was within specifications stated in the operating manual. - Page 3 INTRODUCTION This versatile hand-held instrument provides highly accurate temperature measurements. The instru- ment is designed for easy operation and includes the following features: • Operator selection of Celsius or Fahrenheit scale • Resolution of 0.1° (auto ranging) • Four-digit LCD •...
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS VOLTAGES PRESENT AT DANGER THE RTD MAY ALSO BE PRESENT AT THE BATTERY TERMINALS. AL- WAYS DISCONNECT THE RTD WHEN CHANG- ING BATTERIES. THIS INSTRUMENT IS WARNING DESIGNED TO ACCEPT LOW LEVEL SIGNALS SUPPLIED BY STAN- DARD 100 OHM PLATINUM RTDS. UNDER NO CIRCUMSTANCES SHOULD THE INPUT VOLT- AGE EXCEED THE SPECIFIED 10 V RMS. -
Page 5: Specifications
SPECIFICATIONS PLATINUM RTD PROBES 100 ohm platinum: alpha = 0.003850 –200 °C to 850 °C (–392 °F to 1562 °F) Out of range display: “Ur” , “Or” , “oPEn” Accuracy and Resolution: Range Accuracy Resolution –200 to –100 °C (–392 to –148 °F) ±2 °C (±4 °F) 1°... - Page 6 Operating: Stated accuracy: 18°C to 28°C (64°F to 82°F) Useful range: 0°C to 40°C (32°F to 104°F) Storage: –40°C to 65°C (–40°F to 149°F) Humidity: 10% to 90% (non-condensing) Dimensions 3 cm D x 8.4 cm W x 15.8 cm H (1.2 in x 3.3 in x 6.2 in) Weight with batteries: 227 grams (8 ounces) Ingress protection: Meets IEC-529 IP-54 for dust-...
-
Page 7: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT VOLTAGES PRESENT AT DANGER THE RTD MAY ALSO BE PRESENT AT THE BATTERY TERMINALS. AL- WAYS DISCONNECT THE RTD WHEN CHANG- ING BATTERIES. WEAK BATTERIES SHOULD CAUTION NOT BE LEFT IN THE INSTRUMENT. DEAD BATTERIES CAN LEAK AND CAUSE DAMAGE TO UNIT. - Page 8 If battery indicator turns on, battery life is approxi- mately 8 to 10 hours. See SPECIFICATIONS for battery type. 1. Before changing battery, turn instrument off and disconnect probe. 2. Loosen screw and lift battery cover off back of case. 3.
- Page 9 CONNECTING AN RTD Use the correct 100 ohm RTD (alpha = 0.003850) for your instrument. Using an incorrect probe type will result in erroneous readings. Insert the 3-pin plug into the mating connector on the top of the instrument.
-
Page 12: Operation
OPERATION 1. Press the ON/OFF key. The thermometer per- forms a self-test and all display digits and indi- cators, as shown below, should remain on for approximately two seconds. 2. If a probe is not connected or if the probe is de- fective, the display will indicate “oPEn”. -
Page 13: Field Calibration
FIELD CALIBRATION The thermometer is factory calibrated and does not require calibration before use. The CAL function al- lows single point calibration of the thermometer at 0°C (32°F) to compensate for probe offset error. It is not necessary to perform a field calibration to obtain specified meter accuracy. - Page 14 FIELD CALIBRATION CLEAR/UNLOCK The calibration clear/unlock feature will cancel any previous field calibration (the thermometer reverts to the default factory calibration) and also enables the field calibration operation. 1. Turn the thermometer off. 2. Hold the CAL key down while pressing the ON/ OFF key.
-
Page 15: Maintenance
MAINTENANCE Properly used, the thermometer should maintain calibration indefinitely and not require service other than occasional cleaning of the housing and chang- ing of the batteries. Do not clean with abrasives or solvents. Use mild detergents; never immerse nor use excessive fluid. BATTERIES If there is no display when the thermometer is turned on, check condition of the two AA batteries. - Page 16 EU Declaration of Conformity ® Name of Apparatus: DIGI-SENSE Platinum RTD Thermometer Model Number: 93410-00 Description of Apparatus: Electronic thermometer using a platinum RTD probe Barnant Company declares that the above model is in conformity to the following harmonized standards...
- Page 17 ACCESSORY RTD PROBES Cole-Parmer offers a wide variety of RTD probes, connectors, extension cables, acces- sories and calibration services. The popular probes listed below have a nylon handle, a 5-ft coiled cord and a 316 SS sheath. General-purpose probe, 10 in long x 0.188 in dia.
-
Page 18: Warranty
WARRANTY The Manufacturer warrants this product to be free from significant deviations from published specifications. If repair or adjustment is neces- sary within the warranty period, the problem will be corrected at no charge if it is not due to mis- use or abuse on your part as determined by the Manufacturer.
