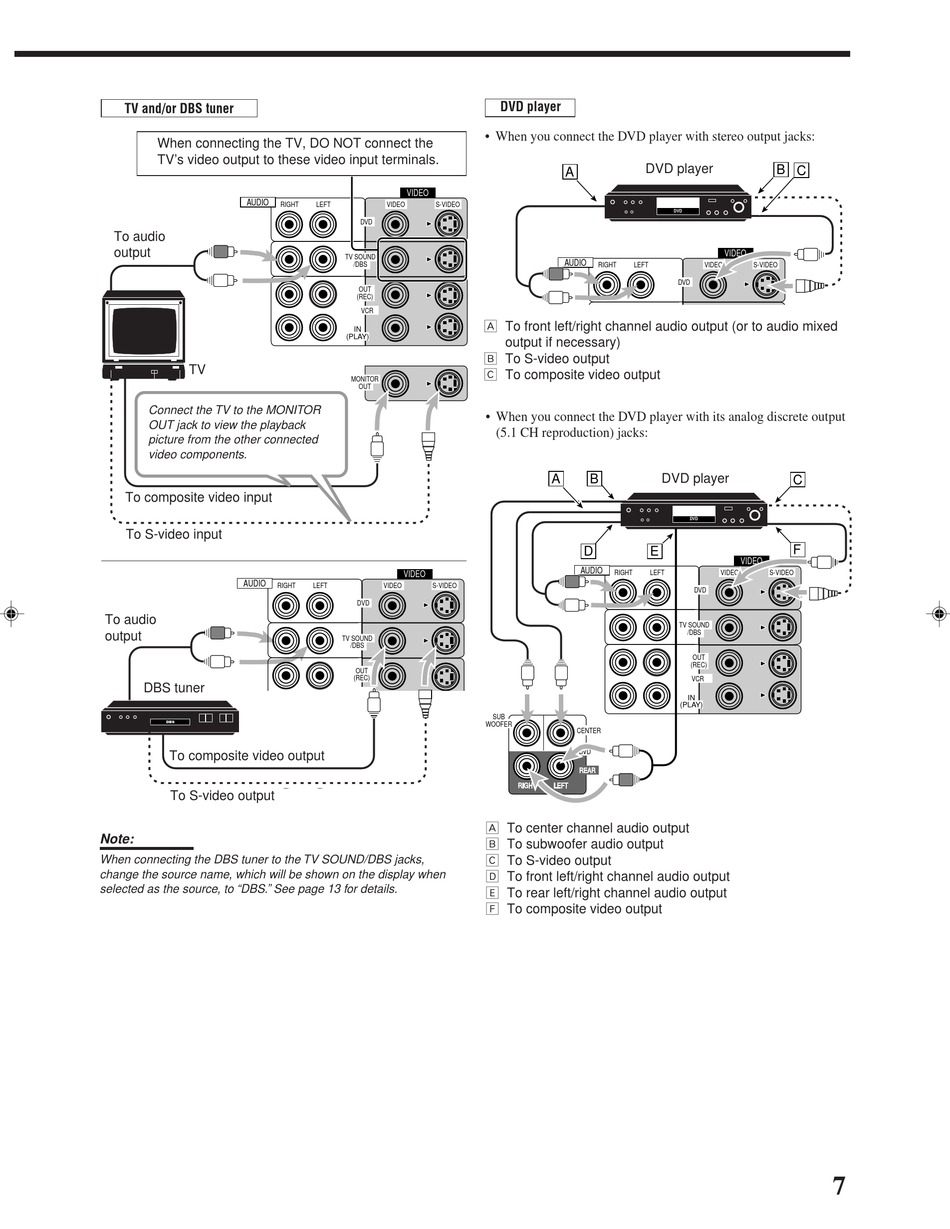

TV and/or DBS tuner
When connecting the TV, DO NOT connect the
TV's video output to these video input terminals.
RIGHT
AUDIO
To audio
output
TV
Connect the TV to the MONITOR
OUT jack to view the playback
picture from the other connected
video components.
To composite video input
To S-video input
RIGHT
AUDIO
To audio
output
DBS tuner
DBS
To composite video output
To S-video output
Note:
When connecting the DBS tuner to the TV SOUND/DBS jacks,
change the source name, which will be shown on the display when
selected as the source, to "DBS." See page 13 for details.
VIDEO
RIGHT
LEFT
VIDEO
S-VIDEO
DVD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
MONITOR
OUT
VIDEO
RIGHT
LEFT
VIDEO
S-VIDEO
DVD
TV SOUND
/DBS
OUT
(REC)
IN
(PLAY)
OUT
(REC)
VCR 2
IN
(PLAY)
DVD player
• When you connect the DVD player with stereo output jacks:
DVD player
A
AUDIO
RIGHT
LEFT
Å To front left/right channel audio output (or to audio mixed
output if necessary)
ı To S-video output
Ç To composite video output
• When you connect the DVD player with its analog discrete output
(5.1 CH reproduction) jacks:
A
B
D
AUDIO
RIGHT
SUB
WOOFER
CENTER
DVD
Å To center channel audio output
ı To subwoofer audio output
Ç To S-video output
Î To front left/right channel audio output
‰ To rear left/right channel audio output
Ï To composite video output
B C
DVD
VIDEO
VIDEO
S-VIDEO
DVD
DVD player
C
DVD
F
E
VIDEO
LEFT
VIDEO
S-VIDEO
DVD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
7
