Important
Please read PRECAUTIONS, this User's
Manual, and the Setup Manual (separate
volume) carefully to familiarize yourself with safe
and effective usage.
• Please refer to the Setup Manual
for basic information ranging from
connection of the monitor to a PC to
using the monitor.
• The latest User's Manual is available
for download from our web site:
http://www.eizo.com
CONTENTS
Chapter 1 Features and Overview
1-1 Features
1-2 Buttons and Indicators
1-3 Functions and Basic Operation
Chapter 2 Settings and Adjustments
2-1 Utility Disk
2-2 Screen Adjustment
2-3 Color Adjustment
2-4 Off Timer Settings
2-5 Screen Size Selection
2-6 Power Indicator/EIZO Logo Display Setting
2-7 Locking Buttons
2-8 Setting Adjustment menu Display
2-9 Viewing Information/Setting Language
2-10 Setting BrightRegulator
2-11 Resumption of Default Setting
Chapter 3 Connecting Cables
3-1 Connecting Two PCs to the Monitor
3-2 Connecting Peripheral USB Devices

Chapter 4 Troubleshooting

Chapter 5 Reference
5-1 Attaching an Arm
5-2 Power Saving Mode
5-3 Cleaning
5-4 Specifications
5-5 Glossary
5-6 Preset Timing

Advertisement

Table of Contents
loading
Need help?

Need help?

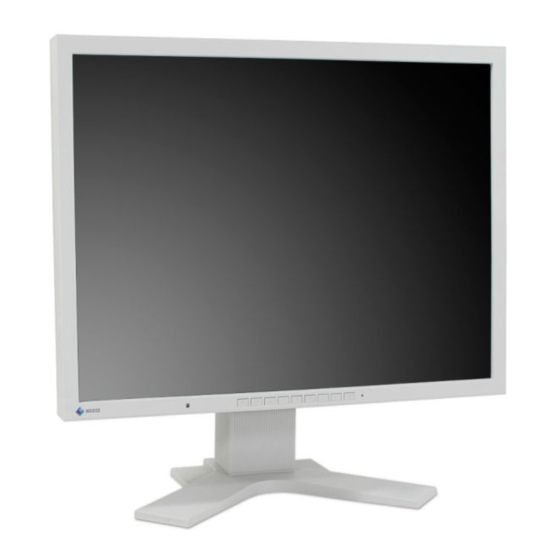

Do you have a question about the FlexScan S2100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eizo FlexScan S2100

Summary of Contents for Eizo FlexScan S2100

  • Page 1: Chapter 4 Troubleshooting

    2-2 Screen Adjustment 2-3 Color Adjustment 2-4 Off Timer Settings Important 2-5 Screen Size Selection 2-6 Power Indicator/EIZO Logo Display Setting Please read PRECAUTIONS, this User’s 2-7 Locking Buttons Manual, and the Setup Manual (separate 2-8 Setting Adjustment menu Display...
  • Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are...

  • Page 3: Notice For This Monitor

    Notice for this monitor This product is suited to general purposes like creating documents, viewing multimedia content. This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. This product may not be covered by warranty for uses other than those described in this manual.

  • Page 4: Table Of Contents

    To adjust brightness of non-display area Cleaning ............24 [Border Intensity] ..........15 Specifications ..........25 Power Indicator/EIZO Logo Display Setting 16 ● To turn off the Power indicator while a screen is Glossary ............27 displayed [Power Indicator] ......16 Preset Timing ..........

  • Page 5: Chapter 1 Features And Overview

    • The utility software “ScreenManager Pro for LCD” (for Windows) to control with an arm or another stand. (Refer the monitor from a PC with mouse/keyboard is included (refer to the EIZO to “5-1 Attaching an Arm” on page LCD Utility Disk).

  • Page 6: Functions And Basic Operation

    1-3 Functions and Basic Operation To adjust the screen and color Analog input only Page 9 Screen Adjustment (Automatic Adjustment) Press Press again while the message window is displayed. Adjustment menu (Refer to page 9 for operation) • The Adjustment menu and the FineContrast mode name cannot be displayed at the same time.
  • Page 7 To change screen size [Screen Size] EIZO Logo Display Setting …………………………………… see page 15 ● ● To display EIZO logo [EIZO Logo Appearing To adjust brightness of non-display area Function] ……………………………… see page 16 [Border Intensity] ………………… see page 15 Power Indicator Setting Connecting Cables ●...

  • Page 8: Chapter 2 Settings And Adjustments

    Chapter 2 Settings and Adjustments 2-1 Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with the monitor. The following table shows the disk contents and the overview of the application software programs. ● Disk contents and software overview The disk includes a monitor information file, application software programs for adjustment, and User’s Manual.

  • Page 9: Screen Adjustment

    NOTE Prepare to use analog screen adjustment patterns. • For details and instructions on opening Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen the “Screen adjustment pattern files”, adjustment pattern files”. refer to the Readme.txt file.

  • Page 10: To Eliminate Vertical Bars [Clock]

    NOTE Perform advanced adjustments for the following using the • Press the control button slowly so as not to miss the adjustment point. <Screen> menu of the Adjustment menu. • When blurring, flickering or bars ● To eliminate vertical bars [Clock] appear on the screen after adjustment, (1) Display Pattern 1 in full screen on the monitor using the “Screen proceed to [Phase] to remove...

  • Page 11: To Adjust Color Gradation Automatically [Range Adjustment]

    Adjust the signal output range. ● To adjust color gradation automatically [Range Adjustment] Every color gradation (0 to 255) can be displayed by adjusting the signal output level. (1) Display Pattern 2 in full screen on the monitor using the “Screen adjustment pattern files”.

  • Page 12: Color Adjustment

    2-3 Color Adjustment Simple adjustment [FineContrast mode] This function allows you to select the best display mode for monitor brightness, etc. ● FineContrast Mode An appropriate display mode is selectable out of five modes. Mode Purpose Custom Available for making desired setting. Suitable for color matching with sRGB compatible sRGB peripherals.

  • Page 13: Advanced Adjustments [Adjustment Menu]

    Advanced Adjustments [Adjustment menu] Attention • Perform [Range Adjustment] before Independent setting and saving of color adjustment are available for each starting color adjustment for analog input signals. FineContrast mode. Refer to “To adjust color gradation automatically” on page 11. ●...

  • Page 14: To Set/Adjust Color

    Menu Description Adjustment range Gain To adjust red, green, and 0 to 100% blue to a desired color tone Adjust the respective brightness of respectively red/green/blue to make a desired color tone. Display an image with white or gray background for adjustment.

  • Page 15: Screen Size Selection

    2-5 Screen Size Selection ● To change screen size [Screen Size] This function allows you to change the screen size when a low-resolution image is displayed. Menu Function Displays an image in full screen. Images are distorted in Full (default setting) some cases because the vertical rate is not equal to the horizontal rate.

  • Page 16: Power Indicator/Eizo Logo Display Setting

    ● To display EIZO logo [EIZO Logo Appearing Function] When this unit is turned on, the EIZO logo appears at the center of the screen. Selection to display or not to display the logo is available with this function. [Procedure] (1) Press to power off the unit.

  • Page 17: Setting Adjustment Menu Display

    2-8 Setting Adjustment menu Display ● To update menu settings [Menu Size/Menu Position/ Menu Off Timer/Translucent/Orientation] Menu Size Change the Adjustment menu size using the following procedure. (1) Choose <Others> from the Adjustment menu, and press (2) Choose <Menu Settings> from the <Others> menu, and press (3) Choose <Menu Size>...

  • Page 18: Viewing Information/Setting Language

    2-9 Viewing Information/Setting Language ● To check settings, usage time, etc. [Information] This function allows you to check settings, model name, serial number, and usage time of the monitor. (1) Choose <Information> from the Adjustment menu, and press The <Information> menu appears. (2) Then, press to check settings, etc.

  • Page 19: Chapter 3 Connecting Cables

    Chapter 3 Connecting Cables 3-1 Connecting Two PCs to the Monitor Two PCs can be connected to the monitor through the DVI-I and the D-Sub Attention • When using an optional signal cable mini 15 pin connector on the back of the monitor. (FD-C16), be sure to connect the Connection examples D-sub mini 15-pin connector to the...

  • Page 20: To Set Auto-Switching Of Input Signals [Input Signal]

    • If the monitor is in the power saving (2) Windows 98/Me/2000/XP/Vista/7/8 or Mac OS 8.5.1 or later mode, or if the monitor is connected (3) EIZO USB cable (MD-C93) to the power outlet with the monitor ● Connection Procedure (Setup of USB Function) turned off, all the devices connected (1) Connect the monitor first to a PC using the signal cable, and run...

  • Page 21: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. • No-picture problems → See No.1 - No.2. • Imaging problems → See No.3 - No.11. • Other problems → See No.12 - No.17. Problems Possible cause and remedy No picture...

  • Page 22: [Signal Filter*]

    Problems Possible cause and remedy Afterimages appear. • Use a screen saver or off timer function for a long-time image display. • Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time. 10. Green/red/blue/white dots or defective dots remain •...

  • Page 23: Chapter 5 Reference

    The stand can be removed and replaced with an arm (or another stand) to be Attention • When attaching an arm or stand, attached to the monitor. Use an arm or stand of EIZO option. follow the instructions of their user’s manual.

  • Page 24: Power Saving Mode

    5-2 Power Saving Mode ■ Analog input This monitor complies with the VESA DPMS standard. [Power Saving System] Power Monitor Indicator Operating Operating Blue Power saving STAND-BY Power saving Yellow SUSPENDED [Resumption Procedure] • Operate the mouse or keyboard to resume the normal screen. ■...

  • Page 25: Specifications

    5-4 Specifications LCD Panel 21.3-inch (540 mm) TFT color LCD with anti-glare hard coating Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more) Dot Pitch 0.270 mm Horizontal Scan Frequency Analog: 24 - 80 kHz Digital: 31 - 76 kHz Vertical Scan Frequency Analog: 49 - 76 Hz (Non-interlace) (1600 ×...

  • Page 26: Outside Dimensions

    Main default settings (factory settings) BrightRegulator Enable Smoothing FineContrast Mode Custom Screen Size Full Input Signal Manual Off Timer Disabled Menu Settings Menu Size Normal Menu Off Timer 45 seconds Language English Outside Dimensions unit : mm (inch) Connector Pin Assignment •...

  • Page 27: Glossary

    Ground Cable ground Option List Cleaning Kit EIZO ScreenCleaner 5-5 Glossary Clock The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog input signal is converted to a digital signal for image display.
  • Page 28 Gamma Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma Characteristic”. A small gamma value produces a low-contrast image, while a large gamma value produces a high- contrast image. Phase Phase means the sampling timing to convert the analog input signal to a digital signal. Phase adjustment is made to adjust the timing.

  • Page 29: Preset Timing

    5-6 Preset Timing The following table shows factory preset video timing (for analog signal only). Attention • Display position may be deviated Frequency depending on the PC connected, Mode Dot clock Polarity Horizontal: kHz which may require screen adjustment Vertical: Hz using Adjustment menu.

  • Page 30: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...
