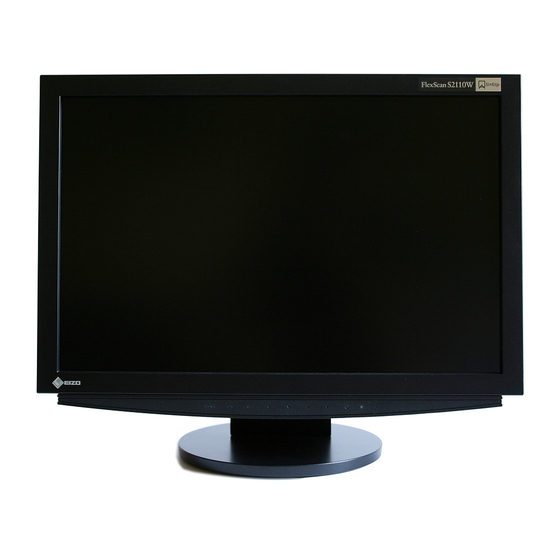

Eizo FlexScan S2110W Specifications

53 cm (21.1") TFT Color LCD Monitor
Widescreen format with 1680
Smooth playback of motion picture images with 8
ms midtone response time (16 ms black white).
1000:1 contrast ratio produces a "pure" black and
brings out the depth and richness in colorful images.
Direct backlight system achieves an LCD TV
equivalent brightness of 450 cd/m
EIZO-developed integrated circuit with 14-bit
processing for smoother, more accurate gradations
of color, especially in the dark tones.
Independent control of hue and saturation for
primary (red, green, blue) and secondary (cyan,
magenta, yellow) colors.
Tilt, swivel, and height adjustment over an arc-
shaped range of movement with the ArcSwing 2
stand.
Touch sensitive electrostatic switches on front
panel.
Dual DVI-I inputs accept analog and digital signals.
Two USB downstream ports on left side of monitor
for quick connection to peripherals.
Industry-leading five year warranty.
Movement range of
ArcSwing 2 Stand
With current LCD technology, a panel may contain a limited number of missing or
flickering pixels.
All product names and logos are trademarks or registered trademarks of their
respective companies.
EIZO and FlexScan are registered trademarks of Eizo Nanao Corporation.
Specifications are subject to change without notice.
© 2005 Eizo Nanao Corporation.
1050 resolution.
×
.
2

Specifications

Panel Size and Type 53 cm (21.1") TFT color LCD panel
Viewing Angles (H, V) 178°, 178° (at contrast ratio of 10:1)
Brightness / Contrast 450 cd/m
Response Time 16 ms (typical)
Midtone Response Time 8 ms
Native Resolution 1680 × 1050
Active Display Size (H × V) 453.6 x 283.5 mm
Viewable Image Size Diagonal: 534 mm
Pixel Pitch 0.270 × 0.270 mm
Display Colors 16.77 million from a palette of 1.06 billion
Cabinet Colors White, Black
Dot Clock Analog: 150 MHz, Digital: 120 MHz
Input Signals Analog: RGB Analog, Digital: DVI Standard 1.0
Input Terminals DVI-I 29 pin × 2 (switchable)
Power Requirements AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz
Power Consumption 80 W (typical)
Power Save Mode Less than 2 W
Height Adjustment Range 95 mm
Tilt / Swivel 60° Up, 5° Down / 172° Right, 172° Left
Dimensions (W × H × D) With Stand: 501 × 341.1 – 459.5 × 230 mm
Without Stand: 501 × 355 × 85 mm
Net Weight With Stand: 8.2 kg Without Stand: 5.8 kg
Certifications and TCO'03 (white), TCO'99 (black) TÜV/Ergonomics
Standards (including ISO 13406-2), TÜV/GS, c-Tick, CE,
CB, UL (cTÜVus), CSA (cTÜVus), FCC-B,
Canadian ICES-003-B, TÜV/S, VCCI-B, EPA
ENERGY STAR
Supplied Accessories AC power cord, signal cables (DVI-D – DVI-D,
DVI-I – D-Sub mini 15 pin), USB cable, EIZO LCD
Utility Disk (HTML user's manual, ScreenManager
Pro for LCD
for mount option, warranty registration card
1
ScreenManager Pro for LCD is compatible with the Microsoft
98SE/Me/2000/XP operating systems only.
501
230
153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan
Phone +81-76-277-6792 Fax: +81-76-277-6793
www.eizo.com
/ 1000:1
2
® , CCC, EIZO Eco Products 2004
1 , ICC Profile), setup guide, 4 screws
® Windows
85
®
