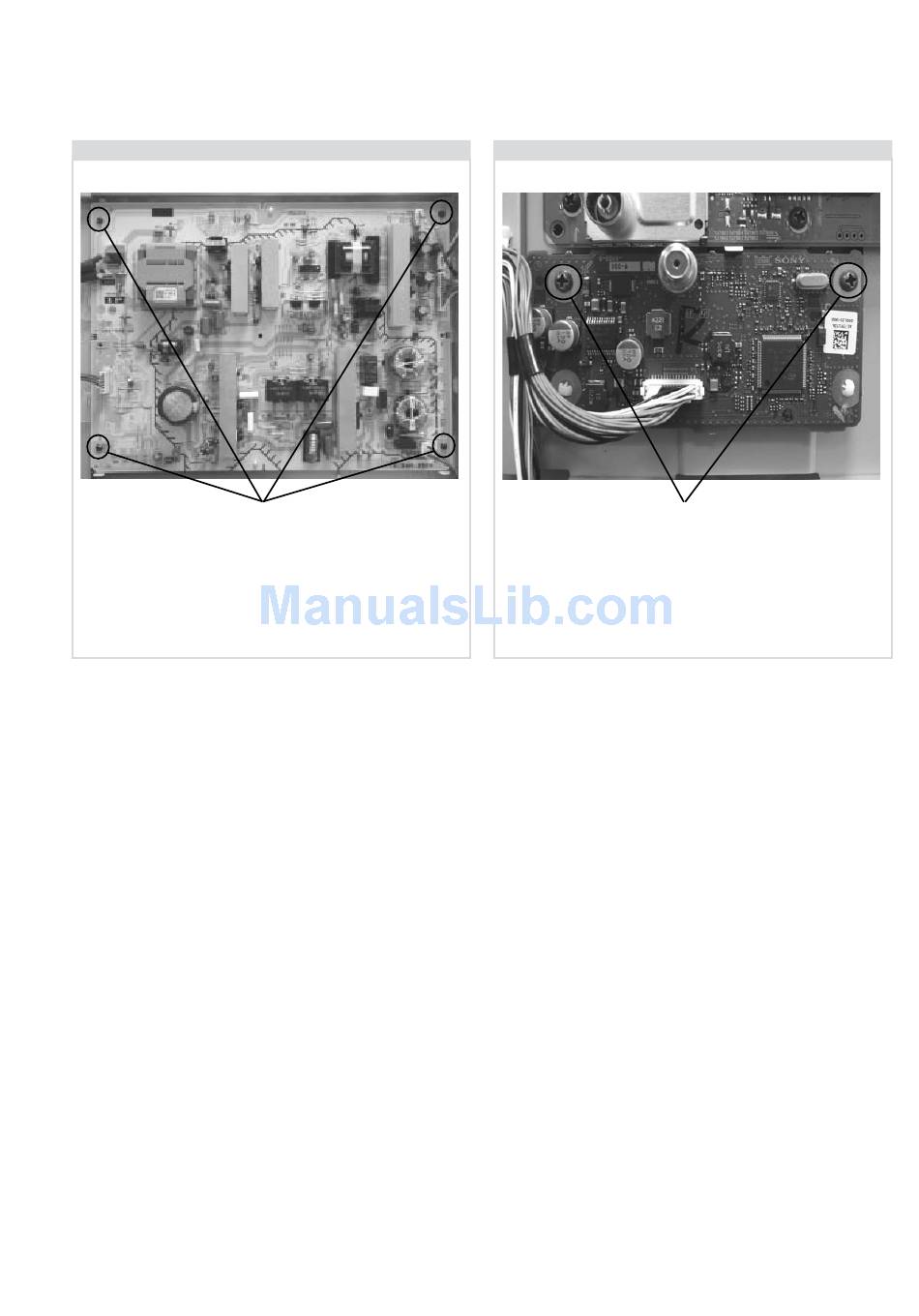

2-16. IP2 Board Removal (46 inches)
Screws
To remove the 'IP2' board disconnect all connectors and then
remove the 4 screws circled and ease the board gently away
from the back of the TV set.
Note: Refer to page 4 - Hirose MDF61 connector.
Screw Part number(s) and Description(s)
2-580-629-01 SCREW, +BVST 3X8
2-17. TUS Board Removal
To remove the 'TUS' board disconnect the 1 connector and
then remove the 2 screws circled and ease the board gently
away from the back of the TV set.
Screw Part number(s) and Description(s)
2-580-592-01 SCREW, +PSW M3X8
- 14 -
Screws
