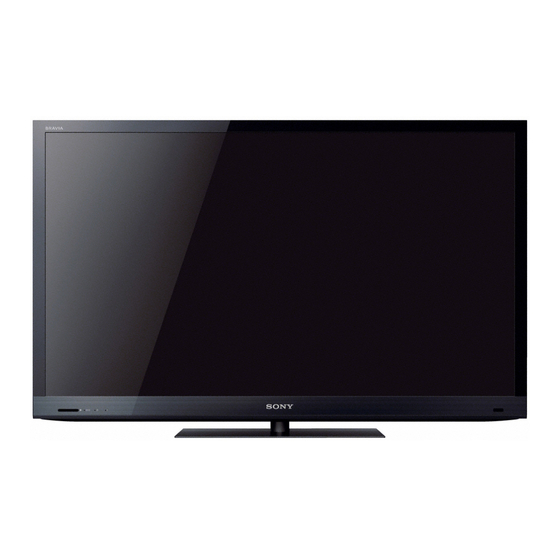

Sony Bravia KDL-55EX725 Operating Instructions Manual

Lcd digital color tv

Hide thumbs Also See for Bravia KDL-55EX725:

I-manual online (175 pages)

Service manual (162 pages)

Operating instructions manual (36 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Sony Bravia KDL-55EX725

Page 1 Digital Colour TV Operating Instructions KDL-55EX725 / 46HX725 / 46EX729 / 46EX728 / 46EX727 / 46EX726 / 46EX725 / 46EX525 KDL-46CX525 / 40HX725 / 40EX729 / 40EX728 / 40EX727 / 40EX726 / 40EX725 / 40EX525 KDL-40CX525 / 37EX725 / 37EX525 / 32EX729 / 32EX728 / 32EX727 / 32EX726 / 32EX725...
Page 2: Trademark Information
KDL-46/40/32EX727, KDL-46/40/32EX726, KDL-26/24/22EX325: Notice for Wireless Signal 1. Hereby, Sony, declares that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To obtain the declaration of conformity (DoC) for R&TTE Directive, please access the following URL address.
Page 3: Lcd Screen
• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person.
Page 4: Disposal Of The Tv Set
• The LCD screen contains a small amount of liquid crystal. Some fluorescent tubes used in this TV set also contain mercury (except for LED backlight LCD TV). Follow your local ordinances and regulations for disposal. Handling and cleaning the screen surface/cabinet of the TV set Be sure to unplug the mains lead...
Page 6: Table Of Contents
Table of Contents Getting Started Checking the accessories ... 8 Inserting batteries into the remote... 8 1: Attaching the Table-Top Stand ... 9 2: Adjusting the viewing angle of the TV ... 10 3: Connecting an antenna (aerial)/Set Top Box/recorder (e.g. DVD recorder) ... 11 4: Connecting audio/video devices ...
Page 7: Parts Description
After setting up your BRAVIA TV and learning basic operations with this manual, see the built-in manual (i-Manual) for further explanation of the features of your TV. This TV has a built-in manual (i-Manual). To access the i-Manual, press i-MANUAL on the remote, and select an item. For details, see page 20 of this manual.
Page 8: Getting Started
Getting Started Checking the accessories Remote (1) Size AAA batteries (R3 type) (2) Table-Top Stand (1) Fixing screws for Table-Top Stand (M5 x 16) (3) (except KDL-26/24/22EX32x) Fixing screws for Table-Top Stand (M4 x 12) (2) (KDL-26/24/22EX32x only) Assembling screws for Table-Top Stand (M6 x 14) (4) (KDL-55/46EX72x, KDL-46HX72x, KDL-46EX52x, KDL-46CX52x only)
Page 9: 1: Attaching The Table-Top Stand
1: Attaching the Table-Top Stand Refer to the supplied Table-Top Stand leaflet for proper attachment for some TV models. Place the TV set on the Table-Top Stand. B For KDL-55/46/40/37/32EX72x, KDL-46/40HX72x, KDL-46/40/37/32EX52x, KDL-46/40/32CX52x, KDL-32EX42x Guide pins • Align the TV from the top, slide it in until the guide pins cannot be seen.
Page 10: 2: Adjusting The Viewing Angle Of The Tv
B For KDL-26/24/22EX32x 2: Adjusting the viewing angle of the TV This TV can be adjusted within the angles as illustrated. Angle adjustment (Swivel) (except KDL-26/24/22EX32x) • When adjusting the angle, hold the stand with one hand to avoid having the stand slip or TV tip over. 20°...
Page 11: 3: Connecting An Antenna (Aerial)/Set Top Box/Recorder (E.g. Dvd Recorder)
• Ensure that there are no objects in front of the TV. IR Sensor 3D Sync Transmitter (KDL-55/46/40/37/32EX72x, KDL-46/40HX72x only) Presence Sensor • Do not expose the Presence Sensor to direct sunlight or other strong light, as malfunction may occur. 3: Connecting an antenna (aerial)/Set Top Box/ recorder (e.g.
Page 12: 4: Connecting Audio/Video Devices
Connecting a Set Top Box/recorder 4: Connecting audio/video (e.g. DVD recorder) with HDMI devices Set Top Box/recorder (e.g. DVD recorder) Audio/video device Recommendation of the F type plug The one based on the following drawing is recommended about the F type plug. Projection of the inner wire from the connection part must be less than 1.5 mm.
Page 13: 5: Preventing The Tv From Toppling Over
5: Preventing the TV from toppling over Install a wood screw (4 mm in diameter, not supplied) in the TV stand. Install a machine screw (M4 × 10, not supplied) into the screw hole of the TV. Tie the wood screw and the machine screw with a strong cord (not supplied).
Page 14: 7: Performing The Initial Set-Up
7: Performing the initial set-up Except KDL-46/40/ KDL-46/40/32CX52x 32CX52x Connect the TV to your AC power outlet (mains socket). Press 1 on the TV. The = (power) indicator will light up in green. When you switch on the TV for the first time, the Language menu appears on the screen.
Page 15 • “Full Scan” may not be available depending on your region/country. For a list of compatible cable providers, refer to the support web site: http://support.sony-europe.com/TV/ DVBC/ Programme Sorting: Changes the order of analogue channels stored in the TV. Press F/f to select the channel you want...
Page 16: Using Your Bravia Tv
Using Your BRAVIA TV Watching the TV GUIDE • The number 5, N, PROG + and AUDIO buttons on the remote have a tactile dot. Use the tactile dots as a reference when operating the TV. Turn on the TV. Press 1 on the TV to turn on the TV.
Page 17 Parts and controls of the remote Use the supplied remote to control your TV. Basic remote operations are explained here. For details on all of the remote function, press i-MANUAL and see the built-in manual (i-Manual) (page 20). For KDL-55/46/40/37/32EX72x, KDL-46/40HX72x Rear of Remote Control 1 :/1...
Page 18: Selecting Various Functions And Settings (Home Menu)
Selecting various functions and settings (Home Menu) You can select all the features from the Home menu. See page 19 for the Home menu map. 1, 3 Press HOME. Press F/f/G/g/ to select items. To select items in the Home menu (e.g., selecting “Settings”) 1 Press G/g to select “Settings”.
Page 19 Home menu map After pressing HOME on the remote, following icons are displayed as categories. The categories are available depending on your TV model, region, country and broadcasting conditions. Media Inputs Favourites/History Settings Widgets Applications Qriocity Internet Content Recommendations Recordings You can select a list of TV channels, or a programme guide.
Page 20: Displaying Operating Instructions (I-Manual)
Displaying Operating Instructions (i-Manual) Operating instructions are built into your BRAVIA TV and can be displayed on the screen. To learn more about your TV features, access your i-Manual with the touch of a button. Press i-MANUAL. Press F/f/G/g/ to select items. To select items in the i-Manual 1 Press F/f to select an item.
Page 21 Description of the i-Manual screen To use the bookmark The i-Manual has a bookmark function. Pages can be bookmarked with coloured buttons, according to the instructions at the bottom of the screen. To access your registered bookmarks, go to the top page of the i-Manual and select “Bookmarks”.
Page 22: Network Setup
Network Setup When you connect this TV to the Internet, you can enjoy multiple functions: displaying a photograph that shows its location on the map, enjoying Internet video, etc. For details on the functions, refer to the i-Manual. • You will need to contract with an Internet service provider to connect to the Internet.
Page 23: Setting Up The Internet Connection
Setting up the Internet connection Using the network feature you can connect the TV to the Internet. The set-up procedure differs depending on the type of network and LAN router. Before setting up the Internet connection, be sure to set up a LAN router. Check your wireless LAN environment using the following chart.
Page 24: If You Cannot Connect To The Internet
Type 3: Unsecured network with any type of wireless LAN router To set up a wireless LAN, SSID (wireless network name) will be required. Press HOME, then select “Network” > “Network Set-up”. Select “Wireless Set-up”. Select “Scan”, then select a network from the list of scanned wireless networks.
Page 25: Additional Information
Press 1 on the TV to turn it off, disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre of how the indicator flashes (number of flashes). When the 1 (standby) indicator is not flashing, check the items in the tables as follows.
Page 26: Specifications
Specifications System Panel system LCD (Liquid Crystal Display) Panel TV system Analogue: Depending on your country/area selection: B/G/H, D/K, L, I, M Digital: DVB-T/DVB-C Satellite: DVB-S/DVB-S2 Colour/video system Analogue: PAL, PAL60 (only video input), SECAM, NTSC3.58, NTSC4.43 (only video input) Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L4 Channel coverage Analogue: VHF: E2–E12/UHF: E21–E69/CATV: S1–S20/HYPER: S21–S41...
Page 27 Model name KDL- 55EX72x Power and others Power requirements 220 V – 240 V AC, 50 Hz Energy Efficiency Class Screen size (measured Approx. 138.8 cm/ 55 inches diagonally) Power in “Home”/ 113 W consumption “Standard” mode in “Shop”/ 177 W “Vivid”...
Page 28 Model name KDL- 40CX52x Power and others Power requirements 220 V – 240 V AC, 50 Hz Energy Efficiency Class Screen size (measured Approx. 101.6 cm/ 40 inches diagonally) Power in “Home”/ 120 W consumption “Standard” mode in “Shop”/ 181 W “Vivid”...
Page 29 Model name KDL- 26EX32x Power and others Power requirements 220 V – 240 V AC, 50 Hz Energy Efficiency Class Screen size (measured Approx. 66.1 cm/ 26 inches diagonally) 38.0 W Power in “Home”/ consumption “Standard” mode in “Shop”/ 63 W “Vivid”...
Page 30: Installing The Accessories (Wall-Mount Bracket)
TV will be 6 cm. Use this space to route cables to the TV. 6 cm Wall For product protection and safety reasons, Sony strongly recommends that installing of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product.
Page 31 SU-WL500, SU-WL100 For KDL-55/46/40/37/32EX72x, KDL-46/40HX72x, KDL-46/40/37/32EX52x, KDL-46/40/32CX52x, KDL-32EX42x SU-WL500 Screw (+PSW 6 × 16) Mounting Hook × Soft cloth • Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket. • When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.
Page 32 SU-WL500 Screw location When installing the Mounting Hook on the SU-WL100 Hook location When installing the TV onto the Base Bracket. Hook location When installing the TV onto the Base Bracket.
Page 33: Tv Installation Dimensions Table
TV installation dimensions table 1 SU-WL500 Screen centre point 2 SU-WL100 Screen centre point Screen Display Model centre dimensions Name dimension KDL- 1 SU-WL500 55EX72x 126.9 76.9 46HX72x 107.8 66.0 12.0 46EX72x 107.8 66.0 12.0 46EX52x 107.8 66.0 12.0 46CX52x 112.2 68.2 40HX72x...
Page 34: Safety Information
• Leave space around the TV set as shown below. • It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation. Installed on the wall 30 cm 10 cm...
Page 35 Turn off the TV set and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel. When: – Mains lead is damaged.
