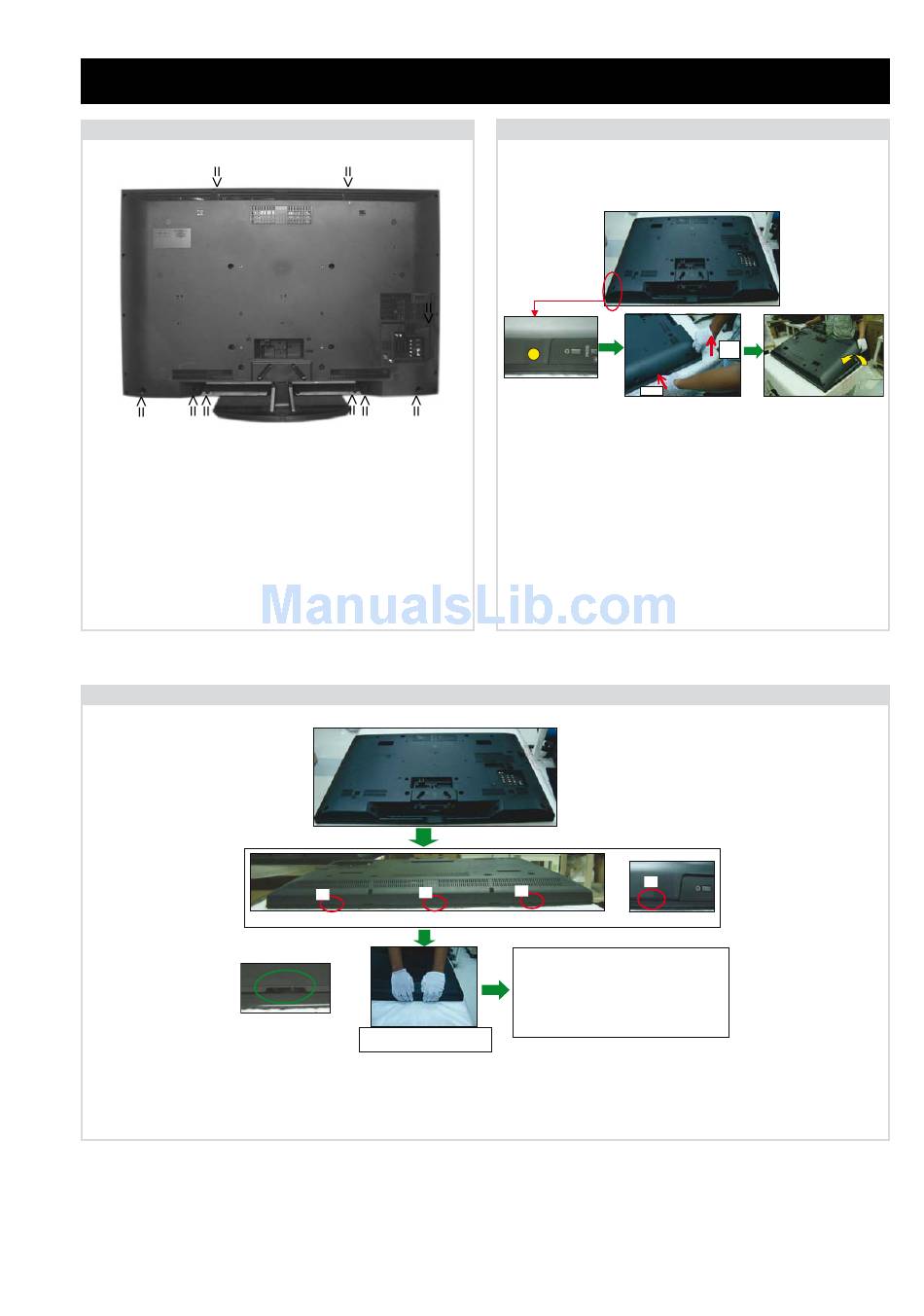

2-1. Rear Cover Removal (Step 1)

1
1 = >
1 = >
3/4
= >
1 = >
1
=>
4/5
= >
1 = >
1
= >
1 1
1
Remove the rear cover fixing screws indicated and then
push the 'Rear Cover' in by the side controls whilst
lifting the 'Rear Cover' up from the bottom (See Step 2).
Screw Part number(s) and Description(s)
1) 2-580-640-01 SCREW, +BVTP2 4X16 (32" = 15pcs, 37" = 17pcs
2) 7-685-648-79 SCREW, +BVTP 3X12
3) 2-580-600-01 SCREW, +PSW M4X8
4) 2-580-602-01 SCREW, +PSW M4X12
5) 2-580-606-01 SCREW, +PSW M5X8
2-3. Rear Cover Installation
To install the 'Rear Cover' push the 4 positions indicated until a clicking sound can be
heard. To ease installation on the top side of the 'Rear Cover' work from the sides in.
SECTION 2 DISASSEMBLY
1
>
>
3/4
> =
2
>
1
> =
2
> =
4/5
> =
>
>
1 1 1
40" = 18pcs, 46/52" = 20pcs)
(32/37/40/46/52" = 2pcs)
(32" = 2pcs)
(37/40/46" = 4pcs, 52" = 2pcs))
(52" = 2pcs)
2
1
<TOP SIDE>
CLICK
CLICKING POSITION (PUSH
FROM REAR COVER TO BEZEL)

2-2. Rear Cover Removal (Step 2)

1
=
1
=
1
=
1
=
PUSH POINT
1
=
To remove the 'Rear Cover' push the 'Rear Cover' in by the
side controls whilst lifting the 'Rear Cover' up from the bottom.
3
1. FOR EASIER INSTALLATION ON THE TOP SIDE,
CLICK THE REAR COVER FROM SIDE TO CENTER.
2. PUSH THE REAR COVER AT THE 4 POSITIONS
UNTIL A CLICK SOUND CAN BE HEARD.
3. 3 POSITIONS ON THE TOP SIDE AND 1 POSITION
ON THE RIGHT SIDE(NEAR THE SIDE CONTROLS).
- 10 -
PULL
UP
PUSH
LIFT UP THE REAR COVER
FROM THE BOTTOM
4
<RIGHT SIDE>
