Summary of Contents for Ubiquiti UniFi Enterprise AP

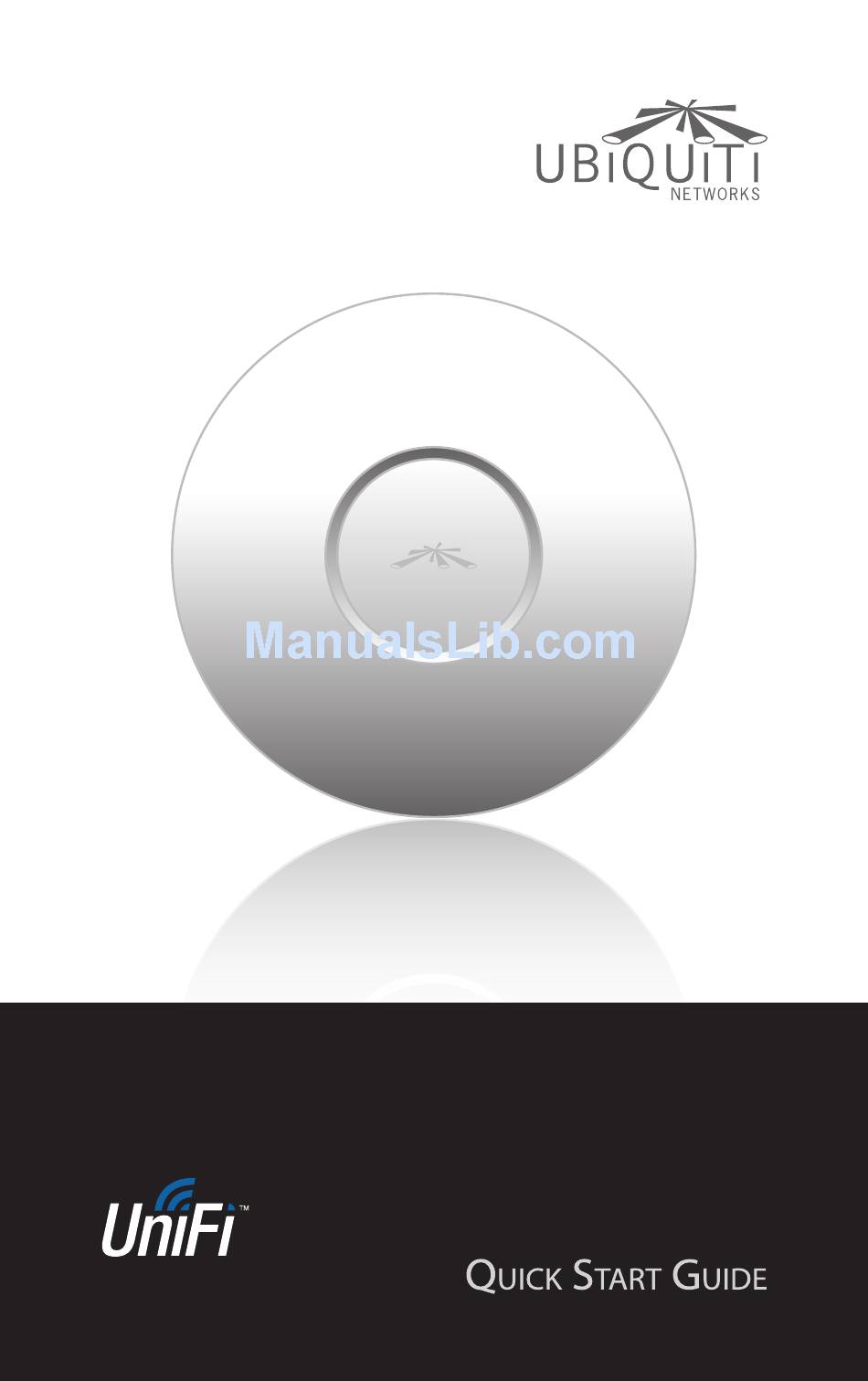

- Page 1 Enterprise WiFi System 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 2 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 3: Package Contents
Package Contents Package Contents UniFi Enterprise AP Wall-Mount Bracket Ceiling-Mount Plate Enterprise WiFi System UniFi Controller 24v PoE Quick Start Guide Power Cord CD with User Guide Adapter M3X30 Flat Head M3 Nut with Tooth M2.9x20 Self Tapping M3x20 Screw Screw (Qty. -
Page 4: System Requirements
UniFi Enterprise WiFi System System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, or Mac OS X • Java Runtime Environment 1.6 (or above) • Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or above) Network Topology Requirements • A DHCP-enabled network (for AP to obtain an IP as well as for the wireless clients after the deployment) • Access point(s) and the management station computer... -
Page 5: Hardware Installation

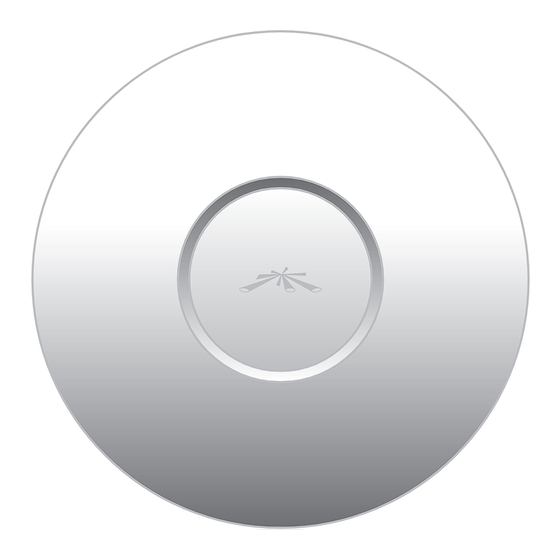

Hardware Installation Hardware Installation The UniFi Enterprise AP is powered by the included PoE (Power over Ethernet) adapter. To install the AP, perform the following steps: 1. Connect an Ethernet cable to the Ethernet port on the UniFi Enterprise AP. - Page 6 UniFi Enterprise WiFi System 3. Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. Note: If you plan to mount the AP on your ceiling, perform the ceiling mount installation steps before connecting the Ethernet cable to the PoE Adapter.
-
Page 7: Mounting The Access Point
Hardware Installation Mounting the Access Point The UniFi Enterprise AP can be wall-mounted or mounted on a ceiling. Perform the following steps for the appropriate installation: Wall-Mount 1. Align the wall-mounting bracket with the Wall Mount text facing up. There are horizontal and vertical lines on the bracket to help with orientation. - Page 8 UniFi Enterprise WiFi System 6. Align the notches on the AP with the notches on the wall-mount bracket. 7. Turn the AP clockwise until it locks into place. 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 9: Ceiling Mount
Hardware Installation Ceiling-Mount 1. Remove the ceiling tile. 2. Align the ceiling-mount plate to the center of the top side of the ceiling tile. 3. Use a 3.5 mm drill bit to drill holes for the three flat head screws. 4. - Page 10 6. Feed the Ethernet cable through the hole and then align the Enterprise AP with the notches on the wall-mount bracket. Note: The UniFi Enterprise AP supports Passive PoE which works with the included PoE adapter. If you want to power the UniFi AP from an 802.3af compliant switch, Ubiquiti Networks offers the optional Instant 802.3af...
-
Page 11: Software Installation
Software Installation Software Installation Insert the UniFi Controller software CD into your CD-ROM drive and follow the instructions for your specific computer type. Mac Users 1. Click on the Install icon. 2. Click Continue and follow the on-screen instructions to install the software. - Page 12 UniFi Enterprise WiFi System 3. Go to Go > Applications and double-click the UniFi icon. Proceed to Configuring the UniFi Controller Software on page 12. PC Users 1. Launch UniFi-installer.exe. 2. Click Install. 3. If your computer doesn't have Java 1.6 or above installed, you will be prompted to install it.
- Page 13 Software Installation 4. Click Next. 5. Be sure the Start UniFi Controller after installation option is checked and click Finish. Note: The UniFi Controller software can also be launched from Start > All Programs. 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 14: Wireless Network
UniFi Enterprise WiFi System Configuring the UniFi Controller Software 1. The UniFi Controller software startup will begin. When the option becomes available, click Launch a Browser to Manage Wireless Network. 2. Select your language and country. Click Next. 3. Select the devices that you want to configure and click Next. 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... - Page 15 Software Installation 4. The UniFi Installation Wizard will create a secure primary wireless network for your devices. Perform the following steps: a. Enter the wireless network name (SSID) in the Secure SSID field. b. Enter a passphrase to be used for your primary network. c.
- Page 16 UniFi Enterprise WiFi System 6. Review your settings. Click Back to make changes or Finish to save your settings. Once finished you will be redirected to the management interface via your web browser. Congratulations, your wireless network is now configured. A login screen will appear for the UniFi Controller management interface.
-
Page 17: Declaration Of Conformity
UBIQUITI NETWORKS, device est conforme aux exigences [French] essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Par la présente, UBIQUITI NETWORKS déclare que ce UBIQUITI NETWORKS device, est conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont applicables. - Page 18 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
